FRONT SEAT & SEAT TRACK

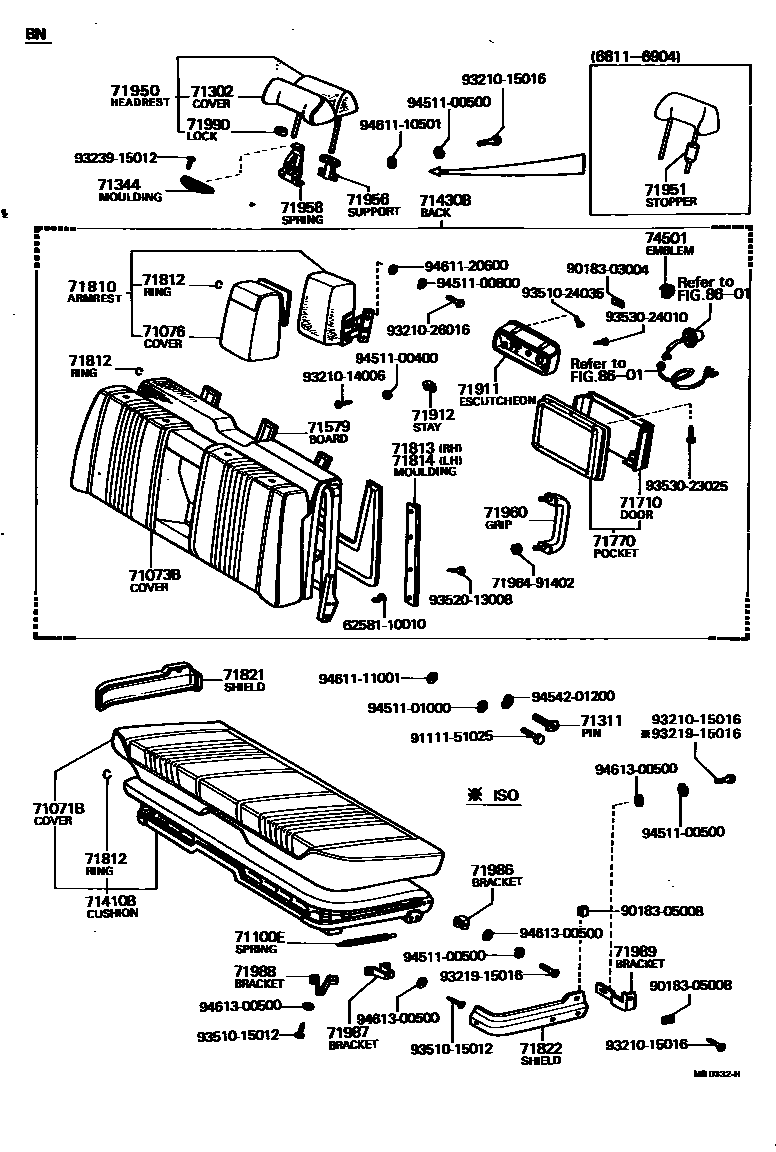

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-91416-01i196711-197310
D-BLUE,BLACK,TRIM8#
main71071-91416-02i196711-197310
G-GRAY,RED/MAROON,TRIM6#
main71071-91416-03i196711-197310
CREAM,GRAY,TRIM5#
main71071-91416-04i196711-197310
B-GRAY,BLUE,TRIM4#
main71071-91419-01i196711-197108
GRAY,BLACK
main71071-91419-02i196711-197108
BEIGE,RED/MAROON
main71071-91424-11i197108-197405
GRAY,BLACK,TRIM1#
main71071-91427-06i197310-197405
CREAM,BROWN,TRIM5#
main71071-91427-07i197310-197405
G-GRAY,GREEN,TRIM6#
main71071-91427-13i197310-197405
B-GRAY,GRAY,TRIM4#
main71071-91427-14i197310-197405
D-BLUE,BLUE,TRIM8#
main71071-91429-03i197405-197511
B-GRAY,GRAY,TRIM4#
main71071-91429-04i197405-197511
D-BLUE,BLUE,TRIM8#
main71071-91429-08i197405-197511
CREAM,IVORY,TRIM5#
main71071-91433-03i197511-197811
B-GRAY,GRAY,TRIM4#
main71071-91433-04i197511-197811
D-BLUE,BLUE,TRIM8#
main71071-91433-08i197511-197811
CREAM,IVORY,TRIM5#
main71071-91434-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71071-91435-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71071-91435-04i197811-198209
FB,BLUE,BLUE,TRIM8#
main71071-91435-05i197811-198209
FB,BEIGE,BEIGE,TRIM4#
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-91416-01i196711-197405
POWER SEAT,D-BLUE,BLACK,TRIM8#
main71073-91416-02i196711-197405
POWER SEAT,G-GRAY,RED/MAROON,TRIM6#
main71073-91416-03i196711-197405
POWER SEAT,CREAM,GRAY,TRIM5#
main71073-91416-04i196711-197405
POWER SEAT,B-GRAY,BLUE,TRIM4#
main71073-91419-01i196711-197405
D-BLUE,BLACK,TRIM8#
main71073-91419-02i196711-197405
G-GRAY,RED/MAROON,TRIM6#
main71073-91419-03i196711-197405
CREAM,GRAY,TRIM5#
main71073-91419-04i196711-197405
B-GRAY,BLUE,TRIM4#
main71073-91420-01i196711-197108
GRAY,BLACK
main71073-91420-02i196711-197108
BEIGE,RED/MAROON
main71073-91425-11i197108-197405
GRAY,BLACK,TRIM1#
main71073-91428-03i197405-197811
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71073-91428-04i197405-197811
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71073-91428-08i197405-197811
POWER SEAT,CREAM,IVORY,TRIM5#
main71073-91429-03i197405-197811
B-GRAY,GRAY,TRIM4#
main71073-91429-04i197405-197811
D-BLUE,BLUE,TRIM8#
main71073-91429-08i197405-197811
CREAM,IVORY,TRIM5#
main71073-91434-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71073-91435-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71073-91435-04i197811-198209
FB,BLUE,BLUE,TRIM8#
main71073-91435-05i197811-198209
FB,BEIGE,BEIGE,TRIM4#
71076COVER SUB-ASSY, FRONT SEAT CENTER ARMREST
main71703-91401-01i196711-197309
BN,D-BLUE,BLACK,TRIM8#
main71703-91401-02i196711-197309
BN,G-GRAY,RED/MAROON,TRIM6#
main71703-91401-03i196711-197309
BN,CREAM,GRAY,TRIM5#
main71703-91401-04i196711-197309
BN,B-GRAY,BLUE,TRIM4#
main71703-91402-01i196711-197108
GRAY,BLACK
main71703-91402-02i196711-197108
BEIGE,RED/MAROON
main71703-91402-03i196711-197302
SM-SP,D-BLUE,GRAY,TRIM8#
main71703-91402-04i196711-197302
SM-SP,G-GRAY,BLUE,TRIM6#
main71703-91402-05i196711-197302
SM-SP,CREAM,BEIGE,TRIM5#
main71703-91402-06i196711-197302
SM-SP,B-GRAY,BROWN,TRIM4#
main71703-91403-01i197303-197405
SM-SP,D-BLUE,BLACK,TRIM8#
main71703-91403-02i197303-197405
SM-SP,G-GRAY,RED/MAROON,TRIM1#
main71703-91403-03i197303-197405
SM-SP,CREAM,GRAY,TRIM5#
main71703-91403-04i197303-197405
SM-SP,B-GRAY,BLUE,TRIM4#
main71703-91405-11i197108-197405
BN,GRAY,BLACK,TRIM1#
main71703-91406-11i197108-197405
SM-SP,GRAY,BLACK,TRIM1#
71100ESPRING, TENSION (FOR FRONT SEAT)
main71967-91402×2i196804-197001
main90506-18010×2i196711-196804
71302COVER, FRONT SEAT HEADREST
main71302-91401-01×2i196811-197102
D-BLUE,BLACK
main71302-91401-02×2i196811-197102
G-GRAY,RED/MAROON
main71302-91401-03×2i196811-197102
CREAM,GRAY
main71302-91401-04×2i196811-197102
B-GRAY,BLUE
main71302-91402-01×2i196811-197102
BLACK,BLACK
main71302-91402-02×2i196811-197102
RED,RED/MAROON
main71302-91403-01×2i196811-197102
GRAY,BLACK
main71302-91403-02×2i196811-197102
BEIGE,RED/MAROON
main71302-91404-01×2i197102-197309
G-GRAY,BLACK,TRIM6#
main71302-91404-02×2i197102-197309
CREAM,RED/MAROON,TRIM5#
main71302-91404-03×2i197102-197309
D-BLUE,GRAY,TRIM8#
main71302-91404-04×2i197102-197309
B-GRAY,BLUE,TRIM4#
main71302-91405-01×2i197102-197109
BLACK,BLACK
main71302-91405-02×2i197102-197109
RED,RED/MAROON
main71302-91406-01×2i197102-197108
GRAY,BLACK
main71302-91406-02×2i197102-197108
BEIGE,RED/MAROON
main71302-91407-11×2i197108-197405
GRAY,BLACK,TRIM1#
main71336-91401-01×2i196711-196811
BLACK,BLACK
main71336-91401-02×2i196711-196811
RED
71311PIN, FRONT SEAT HINGE
main71149-91404×2i196711-196909
BN,W/POWER SEAT
main71149-91406×2i196711-196909
SM-SP
main71149-91407i196909-197405
SM-SP,RH
main71149-91408×2i197511-197811
SM-SP
main71162-91402i197409-197511
SM-SP,LH
71344MOULDING, FRONT SEAT HEADREST
main71344-91401×4i196711-198209
71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
main71410-91416-01i196711-196811
POWER SEAT,D-BLUE,BLACK
main71410-91416-02i196711-196811
POWER SEAT,G-GRAY,RED/MAROON
main71410-91416-03i196711-196811
POWER SEAT,CREAM,GRAY
main71410-91416-04i196711-196811
POWER SEAT,B-GRAY,BLUE
main71410-91419-01i196711-196811
D-BLUE,BLACK
main71410-91419-02i196711-196811
G-GRAY,RED/MAROON
main71410-91419-03i196711-196811
CREAM,GRAY
main71410-91419-04i196711-196811
B-GRAY,BLUE
main71410-91420-01i196711-196803
GRAY,BLACK
main71410-91420-02i196711-196803
BEIGE,RED/MAROON
main71410-91422-01i196811-197310
POWER SEAT,D-BLUE,BLACK,TRIM8#
main71410-91422-02i196811-197310
POWER SEAT,G-GRAY,RED/MAROON,TRIM6#
main71410-91422-03i196811-197310
POWER SEAT,CREAM,GRAY,TRIM5#
main71410-91422-04i196811-197310
POWER SEAT,B-GRAY,BLUE,TRIM4#
main71410-91422-06i197310-197405
POWER SEAT,CREAM,BROWN,TRIM5#
main71410-91422-07i197310-197405
POWER SEAT,G-GRAY,GREEN,TRIM6#
main71410-91422-13i197310-197405
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71410-91422-14i197310-197405
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71410-91423-01i196811-197310
D-BLUE,BLACK,TRIM8#
main71410-91423-02i196811-197310
G-GRAY,RED/MAROON,TRIM6#
main71410-91423-03i196811-197310
CREAM,GRAY,TRIM5#
main71410-91423-04i196811-197310
B-GRAY,BLUE,TRIM4#
main71410-91423-06i197310-197405
CREAM,BROWN,TRIM5#
main71410-91423-07i197310-197405
G-GRAY,GREEN,TRIM6#
main71410-91423-13i197310-197405
B-GRAY,GRAY,TRIM4#
main71410-91423-14i197310-197405
D-BLUE,BLUE,TRIM8#
main71410-91425-01i196803-197108
GRAY,BLACK
main71410-91425-02i196803-197108
BEIGE,RED/MAROON
main71410-91430-11i197108-197405
GRAY,BLACK,TRIM1#
main71410-91433-03i197405-197511
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71410-91433-04i197405-197511
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71410-91433-08i197405-197511
POWER SEAT,CREAM,IVORY,TRIM5#
main71410-91434-03i197405-197511
B-GRAY,GRAY,TRIM4#
main71410-91434-04i197405-197511
D-BLUE,BLUE,TRIM8#
main71410-91434-08i197405-197511
CREAM,IVORY,TRIM5#
main71410-91439-03i197511-197811
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71410-91439-04i197511-197811
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71410-91439-08i197511-197811
POWER SEAT,CREAM,IVORY,TRIM5#
main71410-91441-03i197511-197811
B-GRAY,GRAY,TRIM4#
main71410-91441-04i197511-197811
D-BLUE,BLUE,TRIM8#
main71410-91441-08i197511-197811
CREAM,IVORY,TRIM5#
main71410-91443-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71410-91444-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71410-91444-04i197811-198209
FB,BLUE,BLUE,TRIM8#
main71410-91444-05i197811-198209
FB,BEIGE,BEIGE,TRIM4#
71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)
main71430-91416-01i196711-196811
POWER SEAT,D-BLUE,BLACK
main71430-91416-02i196711-196811
POWER SEAT,G-GRAY,RED/MAROON
main71430-91416-03i196711-196811
POWER SEAT,CREAM,GRAY
main71430-91416-04i196711-196811
POWER SEAT,B-GRAY,BLUE
main71430-91419-01i196711-196811
D-BLUE,BLACK
main71430-91419-02i196711-196811
G-GRAY,RED/MAROON
main71430-91419-03i196711-196811
CREAM,GRAY
main71430-91419-04i196711-196811
B-GRAY,BLUE
main71430-91420-01i196711-196811
GRAY,BLACK
main71430-91420-02i196711-196811
BEIGE,RED/MAROON
main71430-91422-01i196811-197405
POWER SEAT,D-BLUE,BLACK,TRIM8#
main71430-91422-02i196811-197405
POWER SEAT,G-GRAY,RED/MAROON,TRIM6#
main71430-91422-03i196811-197405
POWER SEAT,CREAM,GRAY,TRIM5#
main71430-91422-04i196811-197405
POWER SEAT,B-GRAY,BLUE,TRIM4#
main71430-91423-01i196811-197405
D-BLUE,BLACK,TRIM8#
main71430-91423-02i196811-197405
G-GRAY,RED/MAROON,TRIM6#
main71430-91423-03i196811-197405
CREAM,GRAY,TRIM5#
main71430-91423-04i196811-197405
B-GRAY,BLUE,TRIM4#
main71430-91425-01i196811-197108
GRAY,BLACK
main71430-91425-02i196811-197108
BEIGE,RED/MAROON
main71430-91430-11i197108-197405
GRAY,BLACK,TRIM1#
main71430-91433-03i197405-197511
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71430-91433-04i197405-197511
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71430-91433-08i197405-197511
POWER SEAT,CREAM,IVORY,TRIM5#
main71430-91434-03i197405-197511
B-GRAY,GRAY,TRIM4#
main71430-91434-04i197405-197511
D-BLUE,BLUE,TRIM8#
main71430-91434-08i197405-197511
CREAM,IVORY,TRIM5#
main71430-91439-03i197511-197811
POWER SEAT,B-GRAY,GRAY,TRIM4#
main71430-91439-04i197511-197811
POWER SEAT,D-BLUE,BLUE,TRIM8#
main71430-91439-08i197511-197811
POWER SEAT,CREAM,IVORY,TRIM5#
main71430-91441-03i197511-197811
B-GRAY,GRAY,TRIM4#
main71430-91441-04i197511-197811
D-BLUE,BLUE,TRIM8#
main71430-91441-08i197511-197811
CREAM,IVORY,TRIM5#
main71430-91443-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71430-91444-03i197811-198209
FB,GRAY,GRAY,TRIM1#
main71430-91444-04i197811-198209
FB,BLUE,BLUE,TRIM8#
main71430-91444-05i197811-198209
FB,BEIGE,BEIGE,TRIM4#
71579BOARD, FRONT SEATBACK
main71702-91401-02i196711-197102
LH,G-GRAY,RED/MAROON
main71702-91401-03i196711-197102
LH,CREAM,GRAY
main71702-91401-04i196711-197102
LH,D-BLUE,BLUE
main71702-91401-05i196711-197102
LH,B-GRAY,BEIGE
main71702-91402-03i196711-197102
LH,GRAY,GRAY
main71702-91402-05i196711-197102
LH,BEIGE,BEIGE
main71702-91405-02i197102-197405
LH,G-GRAY,RED/MAROON,TRIM6#
main71702-91405-03i197102-197405
LH,CREAM,GRAY,TRIM5#
main71702-91405-04i197102-197405
LH,D-BLUE,BLUE,TRIM8#
main71702-91405-05i197102-197405
LH,B-GRAY,BEIGE,TRIM4#
main71702-91406-03i197102-197108
LH,GRAY
main71702-91406-05i197102-197108
LH,BEIGE
main71702-91407-11i197108-197405
LH,GRAY,BLACK,TRIM1#
main71702-91408-03i197409-197811
LH,B-GRAY,GRAY,TRIM4#
main71702-91408-04i197405-197409
LH,D-BLUE,BLUE,TRIM8#
main71702-91408-08i197409-197811
LH,CREAM,IVORY,TRIM5#
main71702-91409-03i197811-198209
SM-SP,LH,GRAY,GRAY,TRIM1#
main71702-91409-04i197811-198209
SM-SP,LH,BLUE,BLUE,TRIM8#
main71702-91409-05i197811-198209
SM-SP,LH,BEIGE,BEIGE,TRIM4#
main71702-91410-05×2i197811-198209
LEATHER,SP,LWR,BEIGE,BEIGE,TRIM4#
main71702-91410-06×2i197811-198209
LEATHER,SP,LWR,BROWN,BROWN,TRIM4#
main71702-91411-05i197811-198209
LEATHER,SM-SP,LH,BEIGE,BEIGE,TRIM4#
main71702-91411-06i197811-198209
LEATHER,SM-SP,LH,BROWN,BROWN,TRIM4#
main71709-91401i196711-197102
BN
main71709-91402-02i196711-197102
RH,G-GRAY,RED/MAROON
main71709-91402-03i196711-197102
RH,CREAM,GRAY
main71709-91402-04i196711-197102
RH,D-BLUE,BLUE
main71709-91402-05i196711-197102
RH,B-GRAY,BEIGE
main71709-91403i196711-197102
BN
main71709-91404-03i196711-197102
RH,GRAY,GRAY
main71709-91404-05i196711-197102
RH,BEIGE,BEIGE
main71709-91405-02i197102-197405
BN,G-GRAY,RED/MAROON,TRIM6#
main71709-91405-03i197102-197405
BN,CREAM,GRAY,TRIM5#
main71709-91405-04i197102-197405
BN,D-BLUE,BLUE,TRIM8#
main71709-91405-05i197102-197405
BN,B-GRAY,BEIGE,TRIM4#
main71709-91406-03i197102-197108
BN,GRAY
main71709-91406-05i197102-197108
BN,BEIGE
main71709-91409-02i197102-197405
RH,G-GRAY,RED/MAROON,TRIM6#
main71709-91409-03i197102-197405
RH,CREAM,GRAY,TRIM5#
main71709-91409-04i197102-197405
RH,D-BLUE,BLUE,TRIM8#
main71709-91409-05i197102-197405
RH,B-GRAY,BEIGE,TRIM4#
main71709-91410-03i197102-197108
RH,GRAY
main71709-91410-05i197102-197108
RH,BEIGE
main71709-91411-11i197108-197405
BN,GRAY,BLACK,TRIM1#
main71709-91412-11i197108-197405
RH,GRAY,BLACK,TRIM1#
main71709-91413-03i197405-197811
BN,B-GRAY,GRAY,TRIM4#
main71709-91413-04i197405-197811
BN,D-BLUE,BLUE,TRIM8#
main71709-91413-08i197405-197811
BN,CREAM,IVORY,TRIM5#
main71709-91414-03i197405-197811
BN,B-GRAY,GRAY,TRIM4#
main71709-91414-04i197405-197811
BN,D-BLUE,BLUE,TRIM8#
main71709-91414-08i197405-197811
BN,CREAM,IVORY,TRIM5#
main71709-91415-03i197409-197811
RH,B-GRAY,GRAY,TRIM4#
main71709-91415-04i197409-197811
RH,D-BLUE,BLUE,TRIM8#
main71709-91415-08i197409-197811
RH,CREAM,IVORY,TRIM5#
main71709-91416i197811-198209
BN,GRAY
main71709-91417-03i197811-198209
BN,GRAY,GRAY,TRIM1#
main71709-91417-04i197811-198209
BN,BLUE,BLUE,TRIM8#
main71709-91417-05i197811-198209
BN,BEIGE,BEIGE,TRIM4#
main71709-91418-03×2i197811-198209
SP,GRAY,GRAY,TRIM1#
main71709-91418-04×2i197811-198209
SP,BLUE,BLUE,TRIM8#
main71709-91418-05×2i197811-198209
SP,BEIGE,BEIGE,TRIM4#
main71709-91419-03i197811-198209
SM-SP,RH,GRAY,GRAY,TRIM1#
main71709-91419-04i197811-198209
SM-SP,RH,BLUE,BLUE,TRIM8#
main71709-91419-05i197811-198209
SM-SP,RH,BEIGE,BEIGE,TRIM4#
main71709-91420-05×2i197811-198209
LEATHER,SP,UPR,BEIGE,BEIGE,TRIM4#
main71709-91420-06×2i197811-198209
LEATHER,SP,UPR,BROWN,BROWN,TRIM4#
main71709-91421-05i197811-198209
LEATHER,SM-SP,RH,BEIGE,BEIGE,TRIM4#
main71709-91421-06i197811-198209
LEATHER,SM-SP,RH,BROWN,BROWN,TRIM4#
71710DOOR SUB-ASSY, FRONT SEATBACK POCKET
main71710-91401-01×2i196711-196808
BLACK,BLACK
main71710-91401-02×2i196711-196808
G-GRAY,RED/MAROON
main71710-91401-03×2i196711-196808
CREAM,GRAY
main71710-91401-04×2i196711-196808
D-BLUE,BLUE
main71710-91401-05×2i196711-196808
B-GRAY,BEIGE
main71710-91402-01×2i196808-197102
BLACK,BLACK
main71710-91402-02×2i196808-197102
G-GRAY,RED/MAROON
main71710-91402-03×2i196808-197102
CREAM,GRAY
main71710-91402-04×2i196808-197102
D-BLUE,BLUE
main71710-91402-05×2i196808-197102
B-GRAY,BEIGE
main71710-91404-01×2i197102-197405
BLACK,BLACK
main71710-91404-02×2i197102-197405
G-GRAY,RED/MAROON,TRIM6#
main71710-91404-03×2i197102-197405
CREAM,GRAY,TRIM5#
main71710-91404-04×2i197102-197405
D-BLUE,BLUE,TRIM8#
main71710-91404-05×2i197102-197405
B-GRAY,BEIGE,TRIM4#
main71710-91405-03×2i197405-197811
BN,B-GRAY,GRAY,TRIM4#
main71710-91405-04×2i197405-197811
BN,D-BLUE,BLUE,TRIM8#
main71710-91405-08×2i197405-197811
BN,CREAM,IVORY,TRIM5#
main71710-91406-03i197409-197811
SP,RH,B-GRAY,GRAY,TRIM4#
main71710-91406-04i197409-197811
SP,RH,D-BLUE,BLUE,TRIM8#
main71710-91406-08i197409-197811
SP,RH,CREAM,IVORY,TRIM5#
main71710-91407×2i197811-198209
GRAY
main71710-91408-03×2i197811-198209
BN,GRAY,GRAY,TRIM1#
main71710-91408-04×2i197811-198209
BN,BLUE,BLUE,TRIM8#
main71710-91408-05×2i197811-198209
BN,BEIGE,BEIGE,TRIM4#
main71710-91409-03i197811-198209
SM-SP,RH,GRAY,GRAY,TRIM1#
main71710-91409-04i197811-198209
SM-SP,RH,BLUE,BLUE,TRIM8#
main71710-91409-05i197811-198209
SM-SP,RH,BEIGE,BEIGE,TRIM4#
main71710-91410-05i197811-198209
LEATHER,SM-SP,RH,BEIGE,BEIGE,TRIM4#
main71710-91410-06i197811-198209
LEATHER,SM-SP,RH,BROWN,BROWN,TRIM4#
main71720-91402-03i197405-197409
SP,LH,B-GRAY,GRAY,TRIM4#
main71720-91402-04i197409-197811
SP,LH,D-BLUE,BLUE,TRIM8#
main71720-91402-08i197409-197811
SP,LH,CREAM,IVORY,TRIM5#
main71720-91404-03i197811-198209
SM-SP,LH,GRAY,GRAY,TRIM1#
main71720-91404-04i197811-198209
SM-SP,LH,BLUE,BLUE,TRIM8#
main71720-91404-05i197811-198209
SM-SP,LH,BEIGE,BEIGE,TRIM4#
main71720-91405-05i197811-198209
LEATHER,SM-SP,LH,BEIGE,BEIGE,TRIM4#
main71720-91405-06i197811-198209
LEATHER,SM-SP,LH,BROWN,BROWN,TRIM4#
71770POCKET SUB-ASSY, FRONT SEATBACK
main71770-91401-01×2i196711-197109
BLACK,BLACK
main71770-91401-02×2i196711-197109
RED,RED/MAROON
main71770-91402-02×2i197303-197405
SP,G-GRAY,RED/MAROON,TRIM6#
main71770-91402-03×2i197303-197405
SP,CREAM,GRAY,TRIM5#
main71770-91402-04×2i197303-197405
SP,D-BLUE,BLUE,TRIM8#
main71770-91402-05×2i197303-197405
SP,B-GRAY,BEIGE,TRIM4#
main71770-91403-03×2i197405-197811
SP,B-GRAY,GRAY,TRIM4#
main71770-91403-04×2i197405-197811
SP,D-BLUE,BLUE,TRIM8#
main71770-91403-08×2i197405-197811
SP,CREAM,IVORY,TRIM5#
main71770-91404-03×2i197811-198102
SP,GRAY,GRAY,TRIM1#
main71770-91404-04×2i197811-198102
SP,BLUE,BLUE,TRIM8#
main71770-91404-05×2i197811-198102
SP,BEIGE,BEIGE,TRIM4#
main71770-91405-05×2i197811-198209
LEATHER,SP,LWR,BEIGE,BEIGE,TRIM4#
main71770-91405-06×2i197811-198209
LEATHER,SP,LWR,BROWN,BROWN,TRIM4#
main71770-91408-03×2i198102-198209
SP,GRAY,GRAY,TRIM1#
main71770-91408-04×2i198102-198209
SP,BLUE,BLUE,TRIM8#
main71770-91408-05×2i198102-198209
SP,BEIGE,BEIGE,TRIM4#
main71929-91403-03×2i197811-198209
GRAY,GRAY,TRIM1#
main71929-91403-04×2i197405-197811
BN,D-BLUE,BLUE,TRIM8#
main71929-91403-08×2i197405-197811
BN,CREAM,IVORY,TRIM5#
main71929-91404-03×2i197405-197409
SM-SP,B-GRAY,GRAY,TRIM4#
main71929-91404-04×2i197409-197811
SM-SP,D-BLUE,BLUE,TRIM8#
main71929-91404-08×2i197409-197811
SM-SP,CREAM,IVORY,TRIM5#
main71929-91406-03×2i197811-198209
BN,GRAY,GRAY,TRIM1#
main71929-91406-04×2i197811-198209
BN,BLUE,BLUE,TRIM8#
main71929-91406-05×2i197811-198209
BN,BEIGE,BEIGE,TRIM4#
main71929-91407-03×2i197811-198209
SM-SP,GRAY,GRAY,TRIM1#
main71929-91407-04×2i197811-198209
SM-SP,BLUE,BLUE,TRIM8#
main71929-91407-05×2i197811-198209
SM-SP,BEIGE,BEIGE,TRIM4#
main71929-91408-05×2i197811-198209
LEATHER,SM-SP,BEIGE,BEIGE,TRIM4#
main71929-91408-06×2i197811-198209
LEATHER,SM-SP,BROWN,BROWN,TRIM4#
main71930-91405-01×2i196711-196808
BLACK,BLACK
main71930-91405-02×2i196711-196808
G-GRAY,RED/MAROON
main71930-91405-03×2i196711-196808
CREAM,GRAY
main71930-91405-04×2i196711-196808
D-BLUE,BLUE
main71930-91405-05×2i196711-196808
B-GRAY,BEIGE
main71930-91406-01×2i196808-197102
BLACK,BLACK
main71930-91406-02×2i196808-197102
G-GRAY,RED/MAROON
main71930-91406-03×2i196808-197102
CREAM,GRAY
main71930-91406-04×2i196808-197102
D-BLUE,BLUE
main71930-91406-05×2i196808-197102
B-GRAY,BEIGE
main71930-91408-01×2i197102-197405
BLACK,BLACK
main71930-91408-02×2i197102-197405
BN & SM-SP,G-GRAY,RED/MAROON,TRIM6#
main71930-91408-03×2i197102-197405
BN & SM-SP,CREAM,GRAY,TRIM5#
main71930-91408-04×2i197102-197405
BN & SM-SP,D-BLUE,BLUE,TRIM8#
main71930-91408-05×2i197102-197405
BN & SM-SP,B-GRAY,BEIGE,TRIM4#
71810ARMREST ASSY, FRONT SEAT CENTER
main71810-91409-01i196711-196811
BN,D-BLUE,BLACK
main71810-91409-02i196711-196811
BN,G-GRAY,RED/MAROON
main71810-91409-03i196711-196811
BN,CREAM,GRAY
main71810-91409-04i196711-196811
BN,B-GRAY,BLUE
main71810-91410-01i196711-196811
SM-SP,D-BLUE,BLACK
main71810-91410-02i196711-196811
SM-SP,G-GRAY,RED/MAROON
main71810-91410-03i196711-196811
SM-SP,CREAM,GRAY
main71810-91410-04i196711-196811
SM-SP,B-GRAY,BLUE
main71810-91411-01i196711-196811
BN,GRAY,BLACK
main71810-91411-02i196711-196811
BN,BEIGE,RED/MAROON
main71810-91412-01i196711-196811
SM-SP,GRAY,BLACK
main71810-91412-02i196711-196811
SM-SP,BEIGE,RED/MAROON
main71810-91413-01i196811-197405
POWER SEAT,D-BLUE,BLACK,TRIM8#
main71810-91413-02i196811-197405
POWER SEAT,G-GRAY,RED/MAROON,TRIM6#
main71810-91413-03i196811-197405
POWER SEAT,CREAM,GRAY,TRIM5#
main71810-91413-04i196811-197405
POWER SEAT,B-GRAY,BLUE,TRIM4#
main71810-91414-01i196811-197405
BN,D-BLUE,BLACK,TRIM8#
main71810-91414-02i196811-197405
BN,G-GRAY,RED/MAROON,TRIM6#
main71810-91414-03i196811-197405
BN,CREAM,GRAY,TRIM5#
main71810-91414-04i196811-197405
BN,B-GRAY,BLUE,TRIM4#
main71810-91415-01i196811-197405
SM-SP,D-BLUE,BLACK,TRIM8#
main71810-91415-02i196811-197405
SM-SP,G-GRAY,RED/MAROON,TRIM6#
main71810-91415-03i196811-197405
SM-SP,CREAM,GRAY,TRIM5#
main71810-91415-04i196811-197405
SM-SP,B-GRAY,BLUE,TRIM4#
main71810-91416-01i196811-197108
GRAY,BLACK
main71810-91416-02i196811-197108
BEIGE,RED/MAROON
main71810-91417-11i197108-197405
BN,GRAY,BLACK,TRIM1#
main71810-91418-11i197108-197405
SM-SP,GRAY,BLACK,TRIM1#
main71810-91419-03i197409-197811
SM-SP,B-GRAY,GRAY,TRIM4#
main71810-91419-04i197405-197409
SM-SP,BLACK & D-BLUE,BLUE,TRIM8#
main71810-91419-08i197405-197409
SM-SP,CREAM,IVORY,TRIM5#
main71810-91420-03i197405-197811
BN,B-GRAY,GRAY,TRIM4#
main71810-91420-04i197405-197811
BN,BLACK & D-BLUE,BLUE,TRIM8#
main71810-91420-08i197405-197811
BN,CREAM,IVORY,TRIM5#
main71810-91422-03i197811-198209
BN,GRAY,GRAY,TRIM1#
main71810-91422-04i197811-198209
BN,BLUE,BLUE,TRIM8#
main71810-91422-05i197811-198209
BN,BEIGE,BEIGE,TRIM4#
main71810-91423-03i197811-198209
SM-SP,GRAY,GRAY,TRIM1#
main71810-91423-04i197811-198209
SM-SP,BLUE,BLUE,TRIM8#
main71810-91423-05i197811-198209
SM-SP,BEIGE,BEIGE,TRIM4#
main71810-91424-05i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main71810-91424-06i197811-198209
LEATHER,BROWN,BROWN,TRIM4#
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-30010i196711-197701
SMALL
sub90468-18008
main71812-30012i197303-197701
LARGE
main90468-18071i197701-198209
sub90468-18008
71813MOULDING, FRONT SEAT BACK PANEL SET, RH
main71813-91401i196711-197811
main71813-91402i197811-198209
SP
main71813-91403i197811-198209
LEATHER
71814MOULDING, FRONT SEATBACK PANEL SET, LH
main71813-91402i197811-198209
SP
main71813-91403i197811-198209
LEATHER
main71814-91401i196711-197811
71821SHIELD, FRONT SEAT SIDE, RH
71822SHIELD, FRONT SEAT SIDE, LH
71911ESCUTCHEON, FRONT SEATBACK CENTER
main71901-91405i196711-197405
W/AIR PURIFIER
main71901-91406i196711-197405
71912STAY, FRONT SEATBACK CENTER ESCUTCHEON
main71912-91404×2i196711-197405
71950HEADREST ASSY, FRONT SEAT
main71330-91401-01×2i196711-196811
BLACK,BLACK
main71330-91401-02×2i196711-196811
RED,RED/MAROON
main71330-91402-01×2i196811-197102
D-BLUE,BLACK
main71330-91402-02×2i196811-197102
G-GRAY,RED/MAROON
main71330-91402-03×2i196811-197102
CREAM,GRAY
main71330-91402-04×2i196811-197102
B-GRAY,BLUE
main71330-91403-01×2i196811-197102
BLACK,BLACK
main71330-91403-02×2i196811-197102
RED,RED/MAROON
main71330-91404-01×2i196811-197102
GRAY,BLACK
main71330-91404-02×2i196811-197102
BEIGE,RED/MAROON
main71330-91405-01×2i197102-197405
G-GRAY,BLACK,TRIM6#
main71330-91405-02×2i197102-197405
CREAM,RED/MAROON,TRIM5#
main71330-91405-03×2i197102-197405
D-BLUE,GRAY,TRIM8#
main71330-91405-04×2i197102-197405
B-GRAY,BLUE,TRIM4#
main71330-91406-01×2i197102-197109
BLACK,BLACK
main71330-91406-02×2i197102-197109
RED,RED/MAROON
main71330-91407-01×2i197102-197108
GRAY,BLACK
main71330-91407-02×2i197102-197108
BEIGE,RED/MAROON
main71330-91408-11×2i197108-197405
GRAY,BLACK,TRIM1#
main71330-91409-03×2i197405-197811
B-GRAY,GRAY,TRIM4#
main71330-91409-04×2i197405-197811
D-BLUE,BLUE,TRIM8#
main71330-91409-08×2i197405-197811
CREAM,IVORY,TRIM5#
main71330-91410-03×2i197811-198209
FB,GRAY,GRAY,TRIM1#
main71330-91410-04×2i197811-198209
FB,BLUE,BLUE,TRIM8#
main71330-91410-05×2i197811-198209
FB,BEIGE,BEIGE,TRIM4#
main71330-91411-05×2i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main71330-91411-06×2i197811-198209
LEATHER,BROWN,BROWN,TRIM4#
main71330-91412×2i197811-198209
FB,GRAY
71951STOPPER, FRONT SEAT HEADREST
main71352-91401×4i196811-196904
71956SUPPORT, HEADREST
main71956-30010×4i197303-197701
71958SPRING, FRONT SEAT HEADREST
main71959-30010×2i197303-197701
71960GRIP ASSY, FRONT SEAT ASSIST
main71960-91403-01×2i196711-196902
BLACK,BLACK
main71960-91403-02×2i196711-196902
L-BLUE,RED/MAROON
main71960-91403-03×2i196711-196902
CREAM,GRAY
main71960-91403-04×2i196711-196902
GRAY,BLUE
main71960-91404-01×2i196902-197405
BLACK,BLACK,TRIM1#,8#
main71960-91404-02×2i196902-197405
L-BLUE,RED/MAROON,TRIM6#
main71960-91404-03×2i196902-197405
CREAM,GRAY,TRIM5#
main71960-91404-04×2i196902-197405
GRAY,BLUE,TRIM4#
main71960-91406-01×2i197405-197811
BLACK,BLACK,TRIM8#
main71960-91406-03×2i197405-197811
GRAY,GRAY,TRIM4#
main71960-91406-08×2i197405-197811
CREAM,IVORY,TRIM5#
71986BRACKET, FRONT SEAT SIDE SHIELD, NO.1
main71306-91401i197701-198209
BN & SM-SP,RH
main71307-91401i197409-197701
BN & SM-SP,LH
main71986-91401×2i196711-197405
SP
main71986-91402×2i196711-196803
BN
main71986-91403×2i196811-197701
BN
71987BRACKET, FRONT SEAT SIDE SHIELD, NO.2
main71162-91403i197511-198209
BN & SM-SP,LH
main71985-91402i196711-197405
SP,RH
main71987-91401×2i196711-197511
BN & SM-SP
main71987-91403i196711-197405
SP,LH
main71987-91404i197511-198209
BN & SM-SP,RH
71988BRACKET, FRONT SEAT SIDE SHIELD, NO.3
main71988-91401i196711-198209
BN & SM-SP,RH
main71988-91402×2i196711-197405
SP
main71989-91401i196711-198209
BN & SM-SP,LH
71989BRACKET, FRONT SEAT SIDE SHIELD, NO.4
main71989-91402×2i197402-198209
SP
main71989-91403×2i196803-197405
POWER SEAT
main71989-91404i196803-197511
BN & SM-SP,RH
main71989-91405×2i197511-198209
POWER SEAT
main71989-91406i197511-198209
BN & SM-SP,RH
main71999-91401i196803-197511
BN & SM-SP,LH
main71999-91402i197511-198209
BN & SM-SP,LH
71990LOCK ASSY, FRONT SEAT HEADREST
main71990-30010×2i196811-198209
74501EMBLEM SUB-ASSY, SEAT
main74501-91401i196711-197405
8601
6258110010RETAINER, QUARTER TRIM
main62581-10010
7196491402CASE, REAR SEAT HEADREST
main71964-91402
9018303004
main90183-03004
9018305008
main90183-05008
9111151025
main91111-51025
9321014006
main93210-14006
9321015016
main93210-15016
9321026016
main93210-26016
9321915016
main93219-15016
9323915012
main93239-15012
9351015012
main93510-15012
9351024035
main93510-24035
9352013008
main93520-13008
9353023025
main93530-23025
9353024010
main93530-24010
9451100400
main94511-00400
9451100500
main94511-00500
9451100600
main94511-00600
9451101000
main94511-01000
9454201200
main94542-01200
9461110501
main94611-10501
9461111001
main94611-11001
9461120600
main94611-20600
9461300500
main94613-00500

56 parts on this diagram · 11 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
