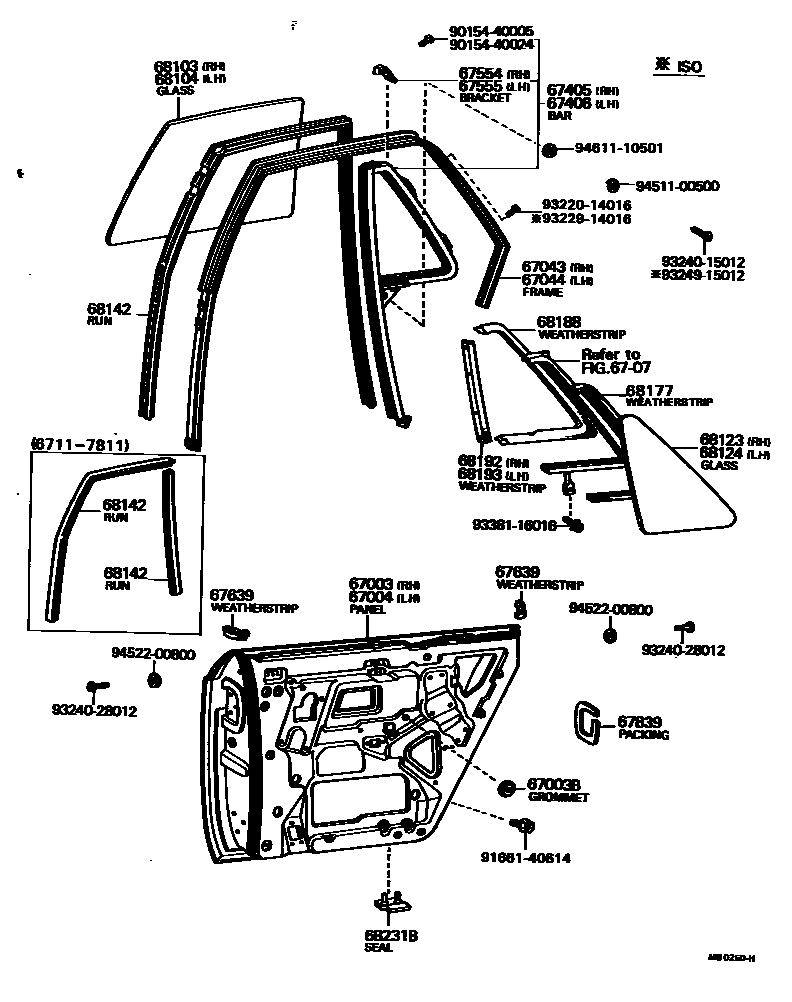

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-91405iVG20..A,C,D196711-197003

main67003-91406iVG20..B196711-197003

main67003-91410iVG20..A,C,D197007-197302

main67003-91411iVG20..A,C,D197003-197007

main67003-91412iVG20..B197003-197302

main67003-91413iVG21..ATM197303-197405

sub67003-91902

main67003-91414iVG21..B197303-197405

sub67003-91901

main67003-91417iVG35..C197811-198209

main67003-91418iVG35..D197811-198209

67003BGROMMET(FOR REAR DOOR PANEL)

main90015-30025×2iVG20196711-197008

main90480-20276×2iVG2#,3#197008-198209

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-91405iVG20..A,C,D196711-197003

main67004-91406iVG20..B196711-197003

main67004-91410iVG20..A,C,D197007-197302

main67004-91411iVG20..A,C,D197003-197007

main67004-91412iVG20..B197003-197302

main67004-91413iVG21,30..D197405-197811

sub67004-91902

main67004-91414iVG21..B197303-197405

sub67004-91901

main67004-91418iVG35..C197811-198209

main67004-91419iVG35..D197811-198209

67043FRAME SUB-ASSY, REAR DOOR WINDOW, RH

main67043-91403iVG2#,3#196711-198209

67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH

main67044-91403iVG2#,3#196711-198209

6707

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67403-91401iVG20..A,C,D196711-196808

main67403-91402iVG20..B196711-196808

main67403-91404iVG20..A,C,D196808-196903

main67403-91405iVG2#..B196808-197405

main67403-91406iVG2#..A,C,D196903-197405

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67404-91401iVG20..A,C,D196711-196808

main67404-91402iVG20..B196711-196808

main67404-91404iVG20..A,C,D196808-196903

main67404-91405iVG21,3#..C197405-198209

main67404-91406iVG2#..A,C,D196903-197405

67554BRACKET, REAR DOOR VENTILATING WINDOW UPPER PIVOT, RH

main67551-91401iVG2#,3#196711-198209

67555BRACKET, REAR DOOR VENTILATING WINDOW UPPER PIVOT, LH

main67552-91401iVG2#,3#196711-198209

67639WEATHERSTRIP, DOOR CORNER

main67638-91402×4iVG2#,3#196711-198209

67839PACKING, REAR DOOR LOCK HOLE

main67852-91401×2iVG20196711-197302

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-91402iVG2#,3#196711-198209

*TT,T=5.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-91401iVG2#,3#196711-198209

*TT,T=5.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-91404iVG2#,3#196711-198209

*TT,T=5.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-91401iVG2#,3#196711-198209

*TT,T=5.0

68142RUN, REAR DOOR GLASS

main68130-91401×2iVG20196711-196802

RR

main68130-91402×2iVG2#,30196802-197811

RR

main68142-91405×2iVG35197811-198209

main68150-91402×2iVG20196711-196802

FR

main68150-91403×2iVG2#,30196802-197811

FR

68177WEATHERSTRIP, REAR DOOR VENTILATING WINDOW FRAME

main68176-91402×2iVG2#,3#196711-198209

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-91402iVG20196711-196811

RH

main68188-91404iVG2#,3#196811-198209

RH

main68189-91402iVG20196711-196811

LH

main68189-91404iVG2#,3#196811-198209

LH

68192WEATHERSTRIP, REAR DOOR VENTILATING WINDOW, NO.2 RH

main68192-91402iVG2#,3#196711-198209

68193WEATHERSTRIP, REAR DOOR VENTILATING WINDOW, NO.2 LH

main68194-91403iVG2#,3#196711-198209

68231BSEAL, REAR DOOR DRAIN HOLE DUST

main68231-91401×4iVG2#,3#196711-198209

9015440005

main90154-40005

9015440024

main90154-40024

9166140614

main91661-40614

9322014016

main93220-14016

9322914016

main93229-14016

9324015012

main93240-15012

9324028012

main93240-28012

9324915012

main93249-15012

9338116016

main93381-16016

9451100500

main94511-00500

9452200800

main94522-00800

9461110501

main94611-10501

34 parts on this diagram · 2 diagrams in section
