PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

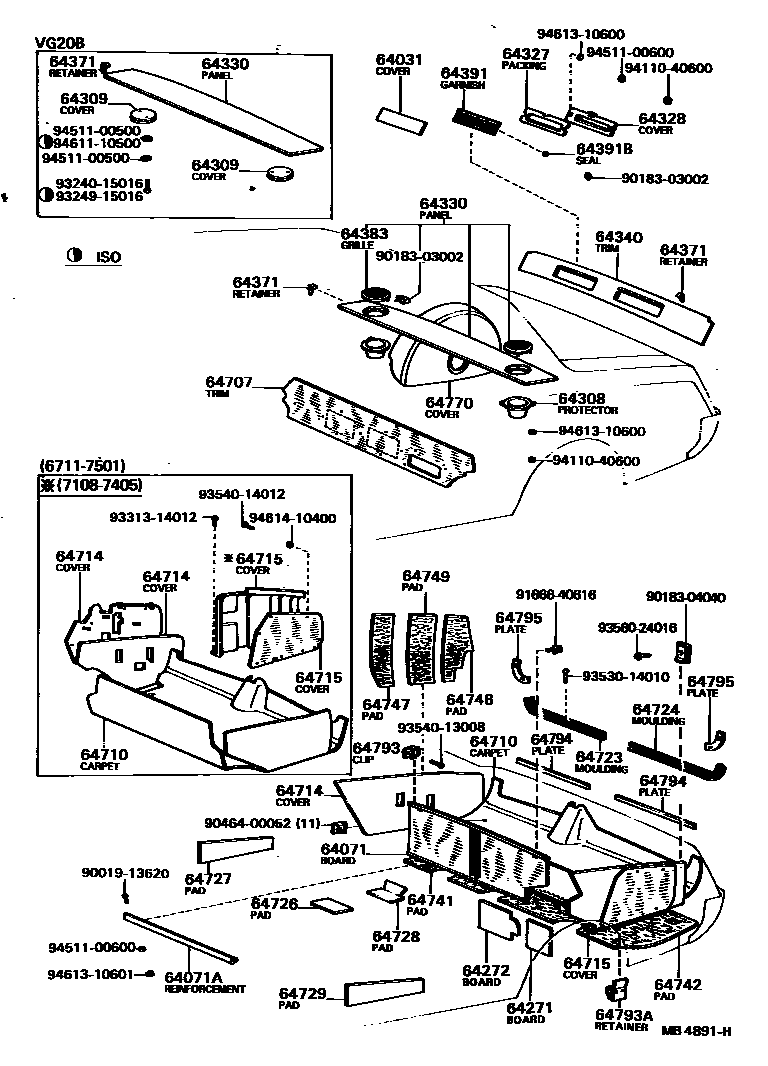

Parts diagram
64031COVER, AIR PURIFIRE GARNISH OUTLET
main64031-91401-01×2i196711-197108
GRAY,BLACK
main64031-91401-02×2i196711-197108
BEIGE,RED/MAROON
main64031-91401-03×2i196711-197405
G-GRAY,GRAY,TRIM6#
main64031-91401-04×2i196711-197405
CREAM,BLUE,TRIM5#
main64031-91401-05×2i196711-197405
D-BLUE,BEIGE,TRIM8#
main64031-91401-06×2i196711-197405
B-GRAY,BROWN,TRIM4#
main64031-91402-01×2i196711-197109
BLACK,BLACK
main64031-91402-02×2i196711-197109
RED,RED/MAROON
main64031-91403-11×2i197108-197405
GRAY,BLACK,TRIM1#
main64031-91404-03×2i197405-197505
B-GRAY,GRAY,TRIM4#
main64031-91404-04×2i197405-197505
D-BLUE,BLUE,TRIM8#
main64031-91404-08×2i197701-197811
CREAM,IVORY,TRIM5#
64071BOARD SUB-ASSY, LUGGAGE COMPARTMENT SEPARATING
main64071-91401i197008-197405
main64071-91403i197405-197501
main64071-91405i197501-198209
64071AREINFORCEMENT, LUGGAGE COMPARTMENT SEPARATING BOARD
main64738-91401i197501-197811
64271BOARD, ROOM PARTITION, NO.1
main64271-91402×2i196711-196906
main64271-91403×2i196906-197411
64272BOARD, ROOM PARTITION, NO.2
main64272-91402×2i196711-197411
64308PROTECTOR SUB-ASSY, PACKAGE TRAY SPEAKER
main64307-91401×2i196711-197302
64309COVER SUB-ASSY, PACKAGE TRAY SPEAKER
main64306-91401×2i196711-197302
64327PACKING, AIR PURIFIER NOZZLE
main64327-91401×2i196711-198209
64328COVER, AIR PURIFIER NOZZLE
main64328-91401×2i196711-198209
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-91404-01i196711-196906
BLACK,BLACK
main64330-91404-02i196711-196906
RED,RED/MAROON
main64330-91405-01i196711-196906
GRAY,BLACK
main64330-91405-02i196711-196906
BEIGE,RED/MAROON
main64330-91406-01i196711-196906
G-GRAY,BLACK
main64330-91406-02i196711-196906
CREAM,RED/MAROON
main64330-91406-03i196711-196906
D-BLUE,GRAY
main64330-91406-04i196711-196906
B-GRAY,BLUE
main64330-91407-01i196906-197109
BLACK,BLACK
main64330-91407-02i196906-197109
RED,RED/MAROON
main64330-91408-01i196906-197108
GRAY,BLACK
main64330-91408-02i196906-197108
BEIGE,RED/MAROON
main64330-91409-01i196906-197405
G-GRAY,BLACK,TRIM6#
main64330-91409-02i196906-197405
CREAM,RED/MAROON,TRIM5#
main64330-91409-03i196906-197405
D-BLUE,GRAY,TRIM8#
main64330-91409-04i196906-197405
B-GRAY,BLUE,TRIM4#
main64330-91410-11i197108-197302
GRAY,BLACK
main64330-91411-11i197303-197405
GRAY,BLACK,TRIM1#
main64330-91412-03i197405-197811
B-GRAY,GRAY,TRIM4#
main64330-91412-04i197405-197811
D-BLUE,BLUE,TRIM8#
main64330-91412-08i197405-197811
CREAM,IVORY,TRIM5#
main64330-91413-03i197811-198209
GRAY,GRAY,TRIM1#
main64330-91413-04i197811-198209
BLUE,BLUE,TRIM8#
main64330-91413-05i197811-198209
BEIGE,BEIGE,TRIM4#
main64330-91414i197811-198209
GRAY
main64330-91415-05i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main64330-91415-06i197811-198209
LEATHER,BROWN & BEIGE,BROWN,TRIM4#
64340TRIM ASSY, PACKAGE TRAY, LOWER
main64340-91401-01i196711-197108
GRAY,BLACK
main64340-91401-02i196711-197108
BEIGE,RED/MAROON
main64340-91401-03i196711-197405
G-GRAY,GRAY,TRIM6#
main64340-91401-04i196711-197405
CREAM,BLUE,TRIM5#
main64340-91401-05i196711-197405
D-BLUE,BEIGE,TRIM8#
main64340-91401-06i196711-197405
B-GRAY,BROWN,TRIM4#
main64340-91402-01i196711-197109
BLACK,BLACK
main64340-91402-02i196711-197109
RED,RED/MAROON
main64340-91407-11i197108-197405
GRAY,BLACK,TRIM1#
main64340-91408-03i197405-197811
B-GRAY,GRAY,TRIM4#
main64340-91408-04i197405-197811
D-BLUE,BLUE,TRIM8#
main64340-91408-08i197405-197811
CREAM,IVORY,TRIM5#
main64340-91411-03i197811-198209
GRAY,GRAY,TRIM1#
main64340-91411-04i197811-198209
BLUE,BLUE,TRIM8#
main64340-91411-05i197811-198209
BEIGE,BEIGE,TRIM4#
main64340-91413-05i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main64340-91413-06i197811-198209
LEATHER,BROWN,BROWN,TRIM4#
main64340-91414i197811-198209
GRAY
64371RETAINER, PACKAGE TRAY TRIM
main64371-30011×15i196711-198209
64383GRILLE, SPEAKER, REAR
main64381-91401-01×2i196711-197811
BLACK,BLACK,TRIM1#,8#
main64381-91401-03×2i196711-197811
GRAY,GRAY,TRIM4#,5#,6#
main64381-91401-04×2i197811-198209
BLUE,BLUE,TRIM8#
main64381-91401-05×2i197811-198209
BEIGE,BEIGE,TRIM4#
main64381-91401-06×2i197811-198209
BROWN,BROWN,TRIM4#
main64381-91401-13×2i197811-198209
GRAY,GRAY,TRIM1#
64391GARNISH, AIR PURIFIER
main64391-91401-01×2i196711-197811
BLACK,BLACK,TRIM1#,8#
main64391-91401-03×2i196711-197811
GRAY,GRAY,TRIM4#,5#,6#
main64391-91401-04×2i197811-198209
BLUE,BLUE,TRIM8#
main64391-91401-05×2i197811-198209
BEIGE,BEIGE,TRIM4#
main64391-91401-06×2i197811-198209
BROWN,BROWN,TRIM4#
main64391-91401-13×2i197811-198209
GRAY,GRAY,TRIM1#
64391BSEAL(FOR AIR PURIFIER GARNISH)
main75396-20020×12i196711-197811
64707TRIM SUB-ASSY, LUGGAGE COMPARTMENT, FRONT
main64707-91402i196711-196906
main64707-91403i196711-196906
main64707-91404i196906-197304
main64707-91405i196906-197304
main64707-91406i197304-198209
main64707-91407i197304-198209
64710CARPET SUB-ASSY, LUGGAGE COMPARTMENT
main64701-91402i196711-196903
main64701-91403i196711-196903
main64701-91404i196903-197008
main64701-91405i196903-197008
main64701-91406i196903-197405
W/O CLOSER,W/AIR PURIFIER
main64701-91408i197008-197302
main64701-91410i197303-197405
main64701-91412i197405-197501
main64701-91413i197501-197811
main64701-91416i197811-198207
64714COVER, LUGGAGE COMPARTMENT, RH
main64703-91402i197405-197501
CARPET
main64704-91403i196711-197302
main64704-91404i197303-197501
HARD BOARD
main64724-91402i197501-198209
CARPET
64715COVER, LUGGAGE COMPARTMENT, LH
main64705-91403i196711-197108
main64705-91404i197501-198209
main64706-91401i197108-197405
64723MOULDING, LUGGAGE COMPARTMENT TRIM, RH
main64718-91402i196903-198209
64724MOULDING, LUGGAGE COMPARTMENT TRIM, LH
main64719-91401i196903-198209
64726PAD, HOUSING SPARE WHEEL SILENCER, FRONT
main64726-91401i196711-197210
64727PAD, HOUSING SPARE WHEEL SILENCER, SIDE
main64727-91401i196711-197210
64728PAD, HOUSING SPARE WHEEL SILENCER, REAR
main64728-91401i196711-197210
64729PAD, REAR FLOOR SIDE LEFT SILENCER
main64725-91401i196711-197210
64741PAD, LUGGAGE COMPARTMENT FLOOR SILENCER, RH
main64741-91401i196711-198209
64742PAD, LUGGAGE COMPARTMENT FLOOR SILENCER, LH
main64742-91401i196711-197302
main64742-91402i197303-197405
main64742-91403i197405-198209
64747PAD, LUGGAGE COMPARTMENT SILENCER SIDE, FRONT
main64747-91401×2i196711-196908
main64747-91402×2i196908-196909
main64747-91403i196909-197210
RH
main64751-91401i196909-197210
LH
64748PAD, LUGGAGE COMPARTMENT SILENCER SIDE, REAR
main64748-91401×2i196711-196908
main64748-91402×2i196908-196909
main64748-91403i196909-197210
RH
main64752-91401i196909-197210
LH
64749PAD, LUGGAGE COMPARTMENT SILENCER SIDE, CENTER
main64749-91401×2i196711-196908
main64749-91402×2i196908-196909
main64749-91403i196909-197210
RH
main64753-91401i196909-197210
LH
64770COVER ASSY, SPARE WHEEL
main64770-91401i196711-197302
main64770-91402i197303-197405
main64771-91402i197405-197612
main64771-91404i197612-198209
64793CLIP, LUGGAGE COMPARTMENT CARPET
main64793-91402×4i196711-197412
64793ARETAINER, REAR FLOOR CARPET, FRONT
main61606-91401×2i197108-197405
64794PLATE, LUGGAGE COMPARTMENT CARPET REAR
main64794-91402×2i196711-196806
main64794-91403×2i196806-196902
64795PLATE, LUGGAGE COMPARTMENT CARPET REAR SIDE
main64795-91402×2i196806-196902
9001913620
main90019-13620
9018303002
main90183-03002
9018304040
main90183-04040
9046400052
main90464-00052
9166640616
main91666-40616
9324015016
main93240-15016
9324915016
main93249-15016
9331314012
main93313-14012
9353014010
main93530-14010
9354013008
main93540-13008
9354014012
main93540-14012
9356024016
main93560-24016
9411040600
main94110-40600
9451100500
main94511-00500
9451100600
main94511-00600
9461110500
main94611-10500
9461310600
main94613-10600
9461310601
main94613-10601
9461410400
main94614-10400

54 parts on this diagram · 1 diagram in section
