INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

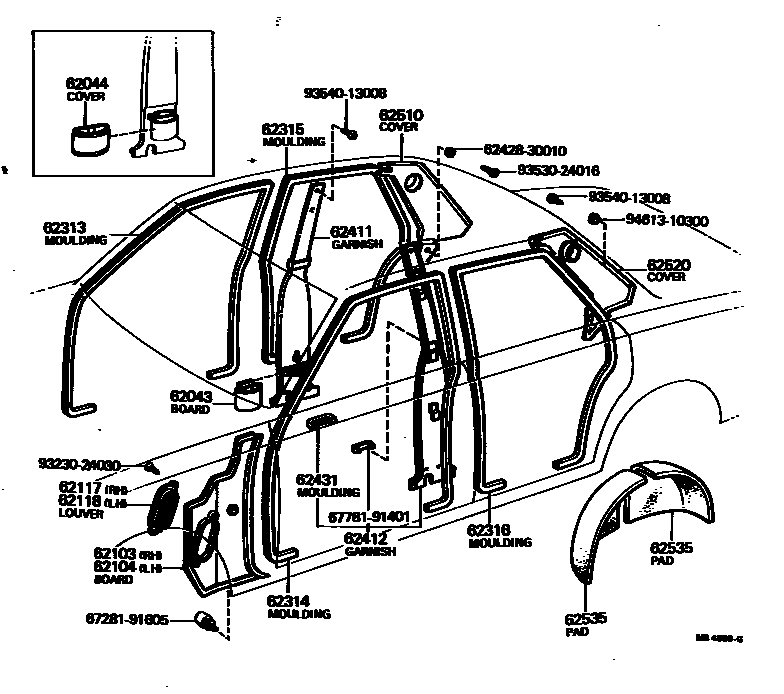

Parts diagram
62043BOARD ASSY, CENTER PILLAR LOWER TRASH BOX
main62430-91401×2i196811-198209
62044COVER ASSY, CENTER PILLAR LOWER TRASH BOX
main62440-91401-01×2i196811-197109
BLACK,BLACK
main62440-91401-02×2i196811-197109
RED,RED/MAROON
main62440-91401-05×2i196811-197310
BLUE,BEIGE,TRIM8#
main62440-91401-06×2i196811-197310
GREEN,BROWN,TRIM6#
main62440-91401-07×2i196811-197310
BROWN,GREEN,TRIM5#
main62440-91401-08×2i196811-197310
GRAY,IVORY,TRIM4#
main62440-91402-03×2i196811-197405
OFF BLACK,GRAY,TRIM1#
main62440-91402-04×2i196811-197302
BROWN,BLUE
main62440-91403-03×2i197310-197701
GRAY,GRAY,TRIM4#
main62440-91403-04×2i197310-197701
BLUE,BLUE,TRIM8#
main62440-91403-06×2i197310-197701
BROWN,BROWN,TRIM5#
main62440-91403-07×2i197310-197405
GREEN,GREEN,TRIM6#
main62440-91404-03×2i197811-198209
GRAY,GRAY,TRIM1#
main62440-91404-04×2i197811-198209
BLUE,BLUE,TRIM8#
main62440-91404-06×2i197811-198209
BROWN,BROWN,TRIM4#
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62110-91401-01i196711-197109
BLACK,BLACK
main62110-91401-02i196711-197109
RED,RED/MAROON
main62110-91401-05i196711-197310
BLUE,BEIGE,TRIM8#
main62110-91401-06i196711-197310
GREEN,BROWN,TRIM6#
main62110-91401-07i196711-197310
BROWN,GREEN,TRIM5#
main62110-91401-08i196711-197310
GRAY,IVORY,TRIM4#
main62110-91402-01i196711-197405
OFF BLACK,BLACK,TRIM1#
main62110-91402-02i196711-197302
BROWN
main62110-91404-03i197310-197505
GRAY,GRAY,TRIM4#
main62110-91404-04i197310-197505
BLUE,BLUE,TRIM8#
main62110-91404-06i197310-197505
BROWN,BROWN,TRIM5#
main62110-91404-07i197310-197405
GREEN,GREEN,TRIM6#
main62110-91406-03i197505-197811
GRAY,GRAY,TRIM4#
main62110-91406-04i197505-197811
BLUE,BLUE,TRIM8#
main62110-91406-06i197505-197811
BROWN,BROWN,TRIM5#
main62110-91408-03i197811-198209
GRAY,GRAY,TRIM1#
main62110-91408-04i197811-198209
BLUE,BLUE,TRIM8#
main62110-91408-06i197811-198209
BROWN,BROWN,TRIM4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62120-91401-01i196711-197109
BLACK,BLACK
main62120-91401-02i196711-197109
RED,RED/MAROON
main62120-91401-05i196711-197310
BLUE,BEIGE,TRIM8#
main62120-91401-06i196711-197310
GREEN,BROWN,TRIM6#
main62120-91401-07i196711-197310
BROWN,GREEN,TRIM5#
main62120-91401-08i196711-197310
GRAY,IVORY,TRIM4#
main62120-91402-01i196711-197405
OFF BLACK,BLACK,TRIM1#
main62120-91402-02i196711-197302
BROWN
main62120-91405-03i197310-197811
GRAY,GRAY,TRIM4#
main62120-91405-04i197310-197811
BLUE,BLUE,TRIM8#
main62120-91405-06i197310-197811
BROWN,BROWN,TRIM5#
main62120-91405-07i197310-197405
GREEN,GREEN,TRIM6#
main62120-91408-03i197811-198209
GRAY,GRAY,TRIM1#
main62120-91408-04i197811-198209
BLUE,BLUE,TRIM8#
main62120-91408-06i197811-198209
BROWN,BROWN,TRIM4#
62117LOUVER, COWL VENTILATOR, RH
main62116-91401i196711-197405
62118LOUVER, COWL VENTILATOR, LH
main62117-91401i196711-197405
62313MOULDING, FRONT DOOR OPENING TRIM, RH
main62310-91401-01i196711-196801
L-BLUE,BLACK
main62310-91401-02i196711-196801
CREAM,RED/MAROON
main62310-91401-03i196711-196801
GRAY,GRAY
main62310-91402-01i196801-197001
L-BLUE,BLACK
main62310-91402-02i196801-197001
CREAM
main62310-91402-03i196801-197001
GRAY,GRAY
main62310-91403-01i197001-197405
L-BLUE,BLACK,TRIM6#,8#
main62310-91403-02i197001-197811
CREAM,RED/MAROON,TRIM5#
main62310-91403-03i197001-197811
GRAY,GRAY,TRIM1#,4#,8#
main62331-91401-03i197811-198209
GRAY,GRAY,TRIM1#,8#
main62331-91401-05i197811-198209
BEIGE,BEIGE,TRIM4#
62314MOULDING, FRONT DOOR OPENING TRIM, LH
main62310-91401-01i196711-196801
L-BLUE,BLACK
main62310-91401-02i196711-196801
CREAM,RED/MAROON
main62310-91401-03i196711-196801
GRAY,GRAY
main62310-91402-01i196801-197001
L-BLUE,BLACK
main62310-91402-02i196801-197001
CREAM
main62310-91402-03i196801-197001
GRAY,GRAY
main62310-91403-01i197001-197405
L-BLUE,BLACK,TRIM6#,8#
main62310-91403-02i197001-197811
CREAM,RED/MAROON,TRIM5#
main62310-91403-03i197001-197811
GRAY,GRAY,TRIM1#,4#,8#
main62332-91401-03i197811-198209
GRAY,GRAY,TRIM1#,8#
main62332-91401-05i197811-198209
BEIGE,BEIGE,TRIM4#
62315MOULDING, REAR DOOR OPENING TRIM, RH
main62310-91403-02i197405-197811
CREAM,RED/MAROON,TRIM5#
main62310-91403-03i197405-197811
GRAY,GRAY,TRIM4#,8#
main62330-91403-01i196711-196801
L-BLUE,BLACK
main62330-91403-02i196711-196801
CREAM,RED/MAROON
main62330-91403-03i196711-196801
GRAY,GRAY
main62330-91404-01i196801-197001
L-BLUE,BLACK
main62330-91404-02i196801-197001
CREAM,RED/MAROON
main62330-91404-03i196801-197001
GRAY,GRAY
main62330-91405-01i197001-197405
L-BLUE,BLACK,TRIM6#,8#
main62330-91405-02i197001-197405
CREAM,RED/MAROON,TRIM5#
main62330-91405-03i197001-197405
GRAY,GRAY,TRIM1#,4#
main62333-91401-03i197811-198209
GRAY,GRAY,TRIM1#,8#
main62333-91401-05i197811-198209
BEIGE,BEIGE,TRIM4#
62316MOULDING, REAR DOOR OPENING TRIM, LH
main62310-91403-02i197405-197811
CREAM,RED/MAROON,TRIM5#
main62310-91403-03i197405-197811
GRAY,GRAY,TRIM4#,8#
main62330-91403-01i196711-196801
L-BLUE,BLACK
main62330-91403-02i196711-196801
CREAM,RED/MAROON
main62330-91403-03i196711-196801
GRAY,GRAY
main62330-91404-01i196801-197001
L-BLUE,BLACK
main62330-91404-02i196801-197001
CREAM,RED/MAROON
main62330-91404-03i196801-197001
GRAY,GRAY
main62330-91405-01i197001-197405
L-BLUE,BLACK,TRIM6#,8#
main62330-91405-02i197001-197405
CREAM,RED/MAROON,TRIM5#
main62330-91405-03i197001-197405
GRAY,GRAY,TRIM1#,4#
main62334-91401-03i197811-198209
GRAY,GRAY,TRIM1#
main62334-91401-05i197811-198209
BEIGE,BEIGE,TRIM4#
62411GARNISH, CENTER PILLAR, RH
main62410-91406-03i196711-196811
GRAY & OFF BLACK,GRAY
main62410-91406-04i196711-196811
CREAM & BEIGE & BROWN,BLUE
main62410-91406-05i196711-197310
L-BLUE & G-GRAY & GREEN,BEIGE,TRIM6#
main62410-91406-06i196711-197310
CREAM & BROWN,BROWN,TRIM5#
main62410-91406-07i196711-197310
L-BLUE & D-BLUE & BLUE,GREEN,TRIM8#
main62410-91406-08i196711-197310
GRAY & B-GRAY,IVORY,TRIM4#
main62410-91406-09i196711-197302
GRAY & B-GRAY & RED,YELLOW
main62410-91406-13i197310-197405
GRAY & B-GRAY,GRAY,TRIM4#
main62410-91406-14i197310-197405
L-BLUE & D-BLUE & BLUE,BLUE,TRIM8#
main62410-91406-16i197310-197405
CREAM & BROWN,BROWN,TRIM5#
main62410-91406-17i197310-197405
L-BLUE & G-GRAY & GREEN,GREEN,TRIM6#
main62410-91407-01i196711-197109
GRAY & BLACK,BLACK
main62410-91407-02i196711-197109
CREAM & RED,RED/MAROON
main62410-91408-03i196811-197108
GRAY & OFF BLACK,GRAY
main62410-91408-04i196811-197108
CREAM & BEIGE & BROWN,BLUE
main62410-91411-03i197108-197405
GRAY & OFF BLACK,GRAY,TRIM1#
main62410-91412-03i197405-197701
GRAY & B-GRAY,GRAY,TRIM4#
main62410-91412-04i197405-197701
GRAY & D-BLUE & BLUE,BLUE
main62410-91412-06i197405-197701
CREAM & BROWN,BROWN,TRIM5#
main62410-91413-03i197405-197701
GRAY & B-GRAY,GRAY,TRIM4#
main62410-91413-04i197405-197701
GRAY & D-BLUE & BLUE,BLUE
main62410-91413-06i197405-197701
CREAM & BROWN,BROWN,TRIM5#
main62410-91416-03i197701-197811
GRAY,GRAY
main62410-91416-04i197701-197811
GRAY & BLUE,BLUE
main62410-91416-06i197701-197811
CREAM & BROWN,BROWN,TRIM5#
main62410-91417-03i197701-197811
GRAY,GRAY
main62410-91417-04i197701-197811
GRAY & BLUE,BLUE
main62410-91417-06i197701-197811
CREAM & BROWN,BROWN,TRIM5#
main62410-91418i197811-198209
GRAY
main62410-91419-03i197811-198209
GRAY,GRAY,TRIM1#
main62410-91419-04i197811-198209
BLUE,BLUE,TRIM8#
main62410-91419-05i197811-198209
BEIGE,BEIGE,TRIM4#
main62410-91420-05i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main62410-91420-06i197811-198209
LEATHER,BROWN,BROWN,TRIM4#
62412GARNISH, CENTER PILLAR, LH
main62420-91406-03i196711-196811
GRAY & OFF BLACK,GRAY
main62420-91406-04i196711-196811
CREAM & BEIGE & BROWN,BLUE
main62420-91406-05i196711-197310
L-BLUE & G-GRAY & GREEN,BEIGE,TRIM6#
main62420-91406-06i196711-197310
CREAM & BROWN,BROWN,TRIM5#
main62420-91406-07i196711-197310
L-BLUE & D-BLUE & BLUE,GREEN,TRIM8#
main62420-91406-08i196711-197310
GRAY & B-GRAY,IVORY,TRIM4#
main62420-91406-09i196711-197302
GRAY & B-GRAY & RED,YELLOW
main62420-91406-13i197310-197405
GRAY & B-GRAY,GRAY,TRIM4#
main62420-91406-14i197310-197405
L-BLUE & D-BLUE & BLUE,BLUE,TRIM8#
main62420-91406-16i197310-197405
CREAM & BROWN,BROWN,TRIM5#
main62420-91406-17i197310-197405
L-BLUE & G-GRAY & GREEN,GREEN,TRIM6#
main62420-91407-01i196711-197109
GRAY & BLACK,BLACK
main62420-91407-02i196711-197109
CREAM & RED,RED/MAROON
main62420-91408-03i196811-197108
GRAY & OFF BLACK,GRAY
main62420-91408-04i196811-197108
CREAM & BEIGE & BROWN,BLUE
main62420-91411-03i197108-197405
GRAY & OFF BLACK,GRAY,TRIM1#
main62420-91412-03i197405-197701
GRAY & B-GRAY,GRAY,TRIM4#
main62420-91412-04i197405-197701
GRAY & D-BLUE & BLUE,BLUE
main62420-91412-06i197405-197701
CREAM & BROWN,BROWN,TRIM5#
main62420-91415-03i197701-197811
GRAY,GRAY
main62420-91415-04i197701-197811
GRAY & BLUE,BLUE
main62420-91415-06i197701-197811
CREAM & BROWN,BROWN,TRIM5#
main62420-91416i197811-198209
GRAY
main62420-91417-03i197811-198209
GRAY,GRAY,TRIM1#
main62420-91417-04i197811-198209
BLUE,BLUE,TRIM8#
main62420-91417-05i197811-198209
BEIGE,BEIGE,TRIM4#
main62420-91418-05i197811-198209
LEATHER,BEIGE,BEIGE,TRIM4#
main62420-91418-06i197811-198209
LEATHER,BROWN,BROWN,TRIM4#
62431MOULDING, CENTER PILLAR GARNISH
main62431-91402×2i196711-198209
62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH
main62510-91401-01i196711-197405
GRAY,BLACK,TRIM1#,4#
main62510-91401-02i196711-197405
CREAM,RED/MAROON,TRIM5#
main62510-91401-03i196711-197405
L-BLUE,GRAY,TRIM6#,8#
main62510-91405-03i197405-197511
GRAY,GRAY,TRIM4#,8#
main62510-91405-05i197811-198209
BEIGE,BEIGE,TRIM4#
main62510-91405-08i197405-197511
CREAM,IVORY,TRIM5#
62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH
main62520-91401-01i196711-197405
GRAY,BLACK,TRIM1#,4#
main62520-91401-02i196711-197405
CREAM,RED/MAROON,TRIM5#
main62520-91401-03i196711-197405
L-BLUE,GRAY,TRIM6#,8#
main62520-91405-03i197511-198209
GRAY,GRAY,TRIM1#,4#,8#
main62520-91405-05i197811-198209
BEIGE,BEIGE,TRIM4#
main62520-91405-08i197405-197511
CREAM,IVORY,TRIM5#
62535PAD, QUARTER WHEEL HOUSE TRIM
main58662-91401×2i196711-198209
ROOM SIDE
main64743-91401×2i196711-197409
LUGGAGE SIDE
6242830010BRACKET, CENTER PILLAR GARNISH, LH
main62428-30010
6728191605PLATE, BACK DOOR STOPPER
main67281-91605
6778191401ORNAMENT, DOOR TRIM
main67781-91401
9323024030
main93230-24030
9353024016
main93530-24016
9354013008
main93540-13008
9461310300
main94613-10300

23 parts on this diagram · 2 diagrams in section
