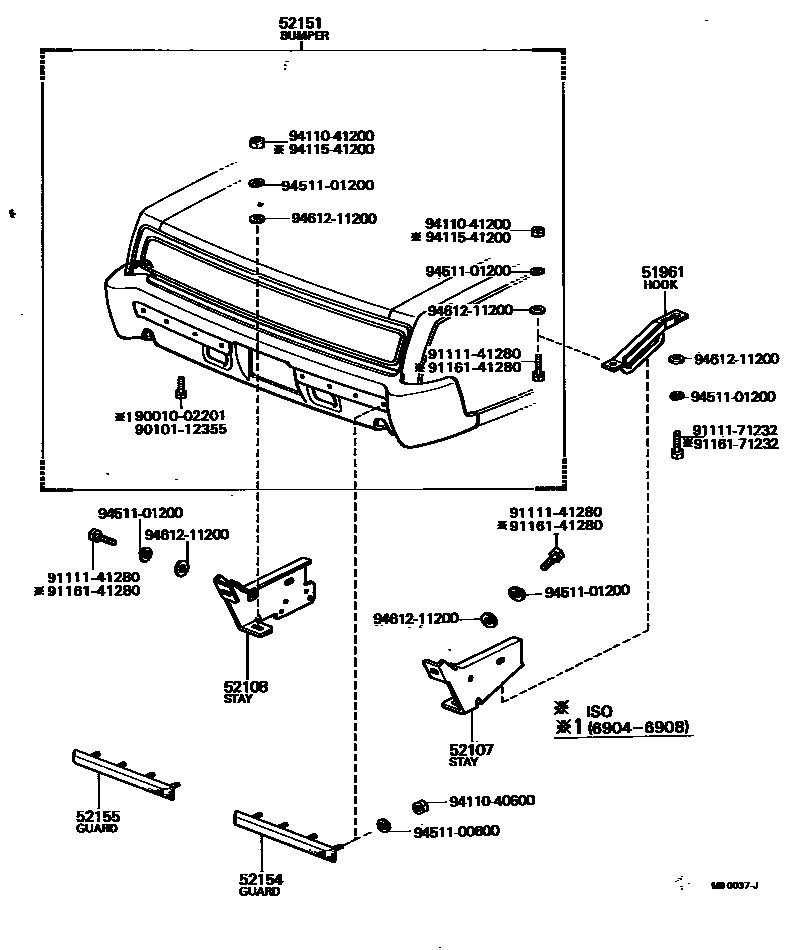

REAR BUMPER & BUMPER STAY

51961HOOK, NO.1

main51909-91401iVG2#,3#196901-198209

52107STAY SUB-ASSY, REAR BUMPER, RH

main52013-91401iVG20196711-196907

sub91111-41236

sub91111-41280

main52013-91402iVG2#,3#196907-198209

52108STAY SUB-ASSY, REAR BUMPER, LH

main52014-91401iVG20196711-196907

sub91161-41280

sub94511-01200

sub94612-11200

main52014-91402iVG2#,30196907-197811

main52014-91403iVG35197811-198209

52151BUMPER ASSY, REAR

main52120-91901iVG20196711-196811

sub52120-91402

main52120-91902iVG20196811-197302

sub52120-91404

main52120-91903iVG21197303-197701

sub52120-91406

main52120-91904iVG3#197701-198209

sub52120-91408

52154GUARD, BUMPER, REAR RH

main52107-91401iVG2#,3#196711-198209

52155GUARD, BUMPER, REAR LH

main52108-91401iVG2#,3#196711-198209

9001002201

main90010-02201

9010112355

main90101-12355

9111141280

main91111-41280

9111171232

main91111-71232

9116141280

main91161-41280

9116171232

main91161-71232

9411040600

main94110-40600

9411041200

main94110-41200

9411541200

main94115-41200

9451100600

main94511-00600

9451101200

main94511-01200

9461211200

main94612-11200

18 parts on this diagram · 1 diagram in section
