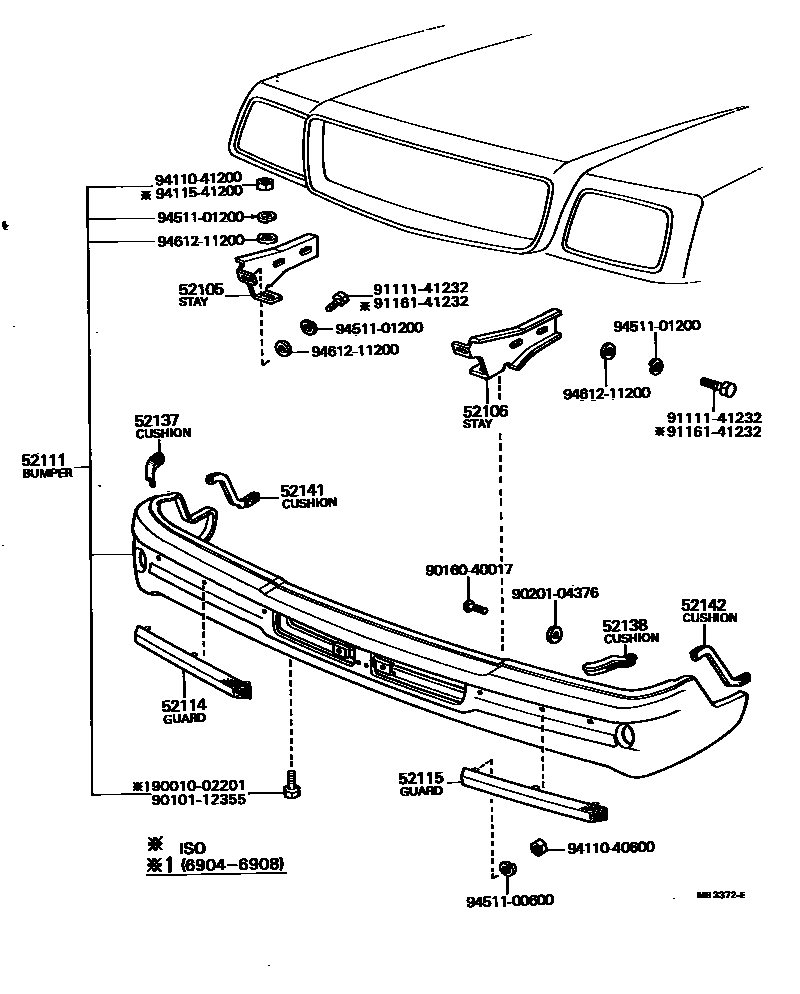

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-91404iVG2#196711-197504

sub52141-91404

main52141-91404iVG21,3#197504-198209

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-91404iVG2#196711-197504

sub52142-91404

main52142-91404iVG21,3#197504-198209

52111BUMPER ASSY, FRONT

main52110-91901iVG20196711-196811

sub52110-91902

sub81510-49016

main52110-91902iVG20196811-197302

sub52110-91903

sub52104-91402

sub52105-91402

main52110-91903iVG21,3#197303-198209

sub52110-91410

52114GUARD, BUMPER, FRONT RH

main52104-91401iVG20196711-197302

main52104-91402iVG21,3#197303-198209

52115GUARD, BUMPER, FRONT LH

main52105-91401iVG20196711-197302

main52105-91402iVG21,3#197303-198209

52137CUSHION, FRONT BUMPER, RH

main52133-91401iVG2#196711-197405

52138CUSHION, FRONT BUMPER, LH

main52134-91401iVG2#196711-197405

52141CUSHION, FRONT FENDER, RH

main52135-91401iVG2#196711-197405

52142CUSHION, FRONT FENDER, LH

main52136-91401iVG2#196711-197405

9001002201

main90010-02201

9010112355

main90101-12355

9016040017

main90160-40017

9020104376

main90201-04376

9111141232

main91111-41232

9116141232

main91161-41232

9411040600

main94110-40600

9411041200

main94110-41200

9411541200

main94115-41200

9451100600

main94511-00600

9451101200

main94511-01200

9461211200

main94612-11200

21 parts on this diagram · 1 diagram in section
