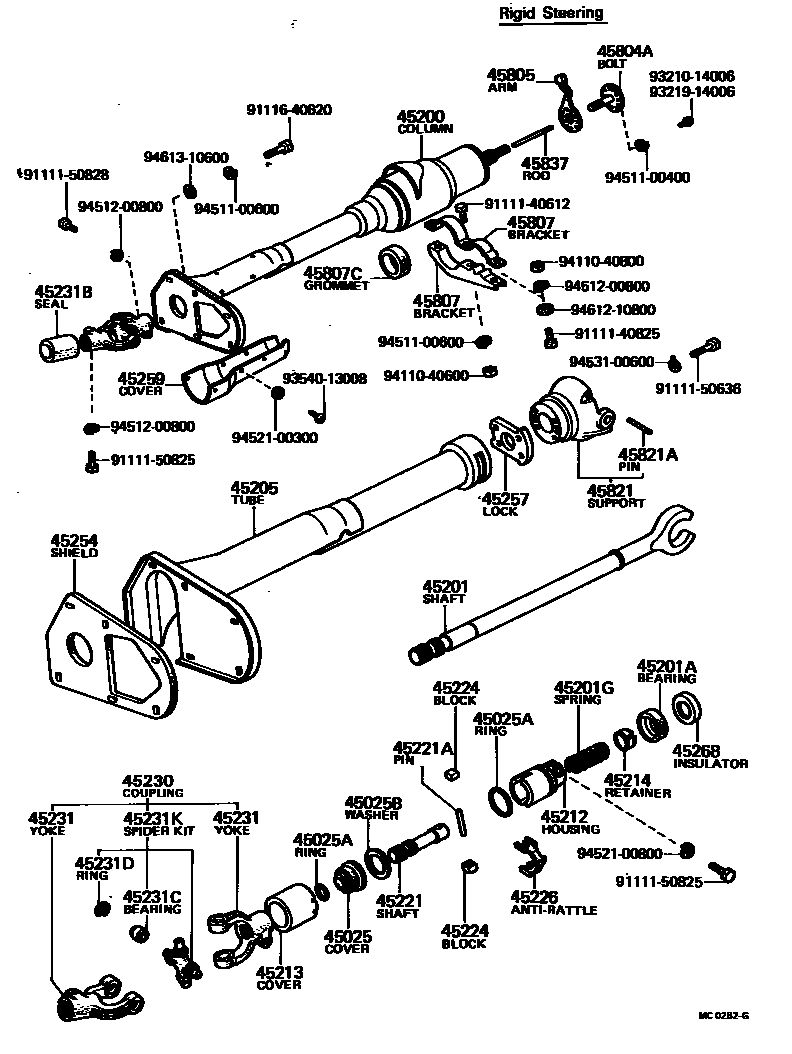

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-40010iVG20196711-196903

45025ARING, O(FOR STEERING COLUMN HOLE COVER)

main90301-17011iVG20196711-196903

ID=17

main90301-42036iVG20196711-196903

ID=42

45025BWASHER, PLATE(FOR STEERING COLUMN HOLE COVER)

main90201-33133iVG20196711-196903

45200POST ASSY, STEERING

main45250-40060iVG20..C196711-196903

W/RIGID STEERING

main45250-40080iVG20..B196711-196903

W/RIGID STEERING

main45250-40090iVG20..ATM196711-196903

W/POWER STEERING

main45250-40101iVG20..A196711-196903

W/RIGID STEERING

main45250-40110iVG20..B196711-196903

W/POWER STEERING

main45250-40130iVG20..B,C,D196903-197102

W/COLLAPSIBLE STEERING

main45250-40131iVG20..B,C,D197102-197302

W/COLLAPSIBLE STEERING

main45250-40140iVG20..A196903-197012

W/COLLAPSIBLE STEERING

main45250-40141iVG20..A197012-197109

W/COLLAPSIBLE STEERING

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-40020iVG20..A196711-196903

main45210-40010iVG20..B,C,D196903-197302

main45210-40020iVG20..A196903-197109

main45210-40030iVG21,3#197303-198209

main45211-40020iVG20..B,C196711-196903

main45211-40030iVG20..D196711-196903

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iVG20..B,C,D196711-197302

UPR

main90363-18041iVG21197303-197309

NSK

main90363-18042iVG21197303-197309

KOYO

main90363-18082iVG21,3#197309-198209

main90363-25040×2iVG20..A196711-197109

SLIDING SHAFT

main90369-36003iVG20196711-196902

LWR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-26357iVG20196711-196903

WD=2.6,CW=5

main90501-26419iVG20..A196711-197109

WD=2.6,CW=34

45205TUBE SUB-ASSY, STEERING COLUMN

main45204-40061iVG20..A196711-196903

main45870-40010iVG20..B,C,D196903-197102

main45870-40011iVG20..B,C,D197102-197302

main45870-40020iVG20..A196903-197012

main45870-40021iVG20..A197012-197109

main45870-40030iVG21,3#197303-198209

45212HOUSING, MAIN SHAFT JOINT

main45212-40010iVG20196711-196903

45213COVER, MAIN SHAFT JOINT

main45213-40010iVG20196711-196903

45214RETAINER, MAIN SHAFT SPRING

main45214-40010iVG20196711-196903

45221SHAFT, STEERING INTERMEDIATE

main45221-40020iVG20196711-196903

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iVG20196711-196903

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30011×2iVG20196711-196903

15.97X15.97

main45225-30011×2iVG20196711-196903

16.03X16.03

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30010iVG20196711-196903

45230COUPLING ASSY, FLEXIBLE

main45230-62010iVG20196711-196903

45231YOKE, MAIN SHAFT FLEXIBLE COUPLING

main45244-62010×2iVG20196711-196903

45231BSEAL, DUST

main90303-18034iVG2#,3#196903-198209

main90303-25039iVG20196711-196903

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10010×4iVG20196711-196903

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011×4iVG20196711-196903

T=1.20

main90521-22012×4iVG20196711-196903

T=1.25

main90521-22013×4iVG20196711-196903

T=1.30

45231KSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10010iVG20196711-196903

sub04371-10011

45254SHIELD, STEERING COLUMN HOLE

main45254-40010iVG20..A196711-196903

main45254-40020iVG20..A196903-197109

45257LOCK, STEERING COLUMN TUBE

main45257-40010iVG20..A196711-196903

main45257-40011iVG20..A196903-197109

45259COVER, STEERING COLUMN, LOWER

main45259-40010iVG20196711-196903

45268COVER, STEERING INTER SHAFT DUST SEAL

main45268-40010iVG20196711-196903

45804ABOLT SUB-ASSY, LOCK

main45804-40010iVG20..A196711-197109

45805ARM SUB-ASSY, STEERING SLIDE LOCK

main45805-40010iVG20..A196711-196808

sub93219-14006

main45805-40011iVG20..A196808-197109

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45271-40010iVG20196711-196903

UPR

main45272-40010iVG20196711-196903

LWR

main45807-40010iVG20196903-197302

main45807-40020iVG21,3#197303-198209

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-50153iVG20196711-196903

45821SUPPORT, STEERING ACTUATOR

main45802-40010iVG20..A196711-196903

main45802-40011iVG20..A196903-197109

45821APIN, STRAIGHT(FOR STEERING ACTUATOR SUPPORT)

main90250-04151iVG20..A196711-197109

45837ROD, STEERING SLIDE LOCK KEY PUSH

main45837-40010iVG20..A196711-197109

9111140612

main91111-40612

9111140825

main91111-40825

9111150636

main91111-50636

9111150825

main91111-50825

9111150828

main91111-50828

9111640620

main91116-40620

9321014006

main93210-14006

9321914006

main93219-14006

9354013008

main93540-13008

9411040600

main94110-40600

9411040800

main94110-40800

9451100400

main94511-00400

9451100600

main94511-00600

9451200800

main94512-00800

9452100300

main94521-00300

9452100800

main94521-00800

9453100600

main94531-00600

9461210800

main94612-10800

9461310600

main94613-10600

51 parts on this diagram · 9 diagrams in section
