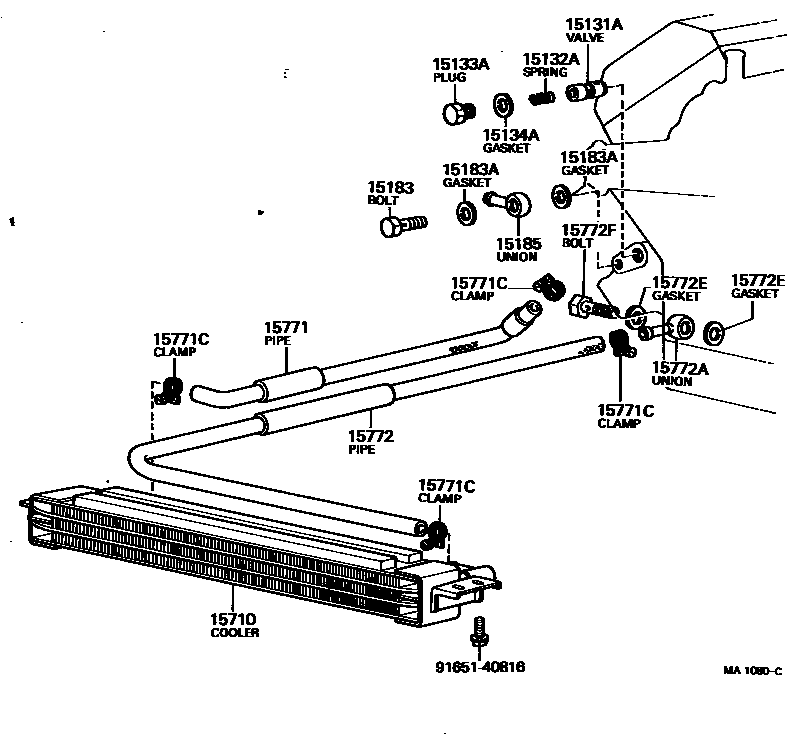

ENGINE OIL COOLER

15131AVALVE, OIL COOLER RELIEF

main15131-41010i4V#..VG21,30197303-197811

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-21010i4V#..VG21,30197303-197811

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010i4V#..VG21,30197303-197811

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010i4V#..VG21,30197303-197811

15183BOLT, UNION(FOR OIL PUMP)

main15183-52010i4V#..VG21,30197303-197811

15183AGASKET(FOR OIL PUMP)

main90430-14156i4V#..VG21,30197303-197811

15185UNION(FOR OIL PUMP)

main15185-52010i4V#..VG21,30197303-197811

15710COOLER ASSY, OIL

main15710-52010i4V#..VG21,30197303-197811

15771PIPE, OIL, NO.1

main15777-52010i4V#..VG21,30197303-197811

15771CCLAMP(FOR OIL PIPE)

main90460-18058i4V..VG21197303-197310

sub96112-10180

main96112-10180i4V#..VG21,30197310-197811

15772PIPE, OIL, NO.2

main15778-52010i4V#..VG21,30197303-197811

15772AUNION(FOR OIL PIPE)

main90405-10153i4V#..VG21,30197303-197811

15772EGASKET(FOR OIL PIPE)

main90430-14156i4V..VG21197303-197306

main90430-14235i4V#..VG21,30197306-197811

15772FBOLT, UNION(FOR OIL PIPE)

main90401-14091i4V#..VG21,30197303-197811

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
