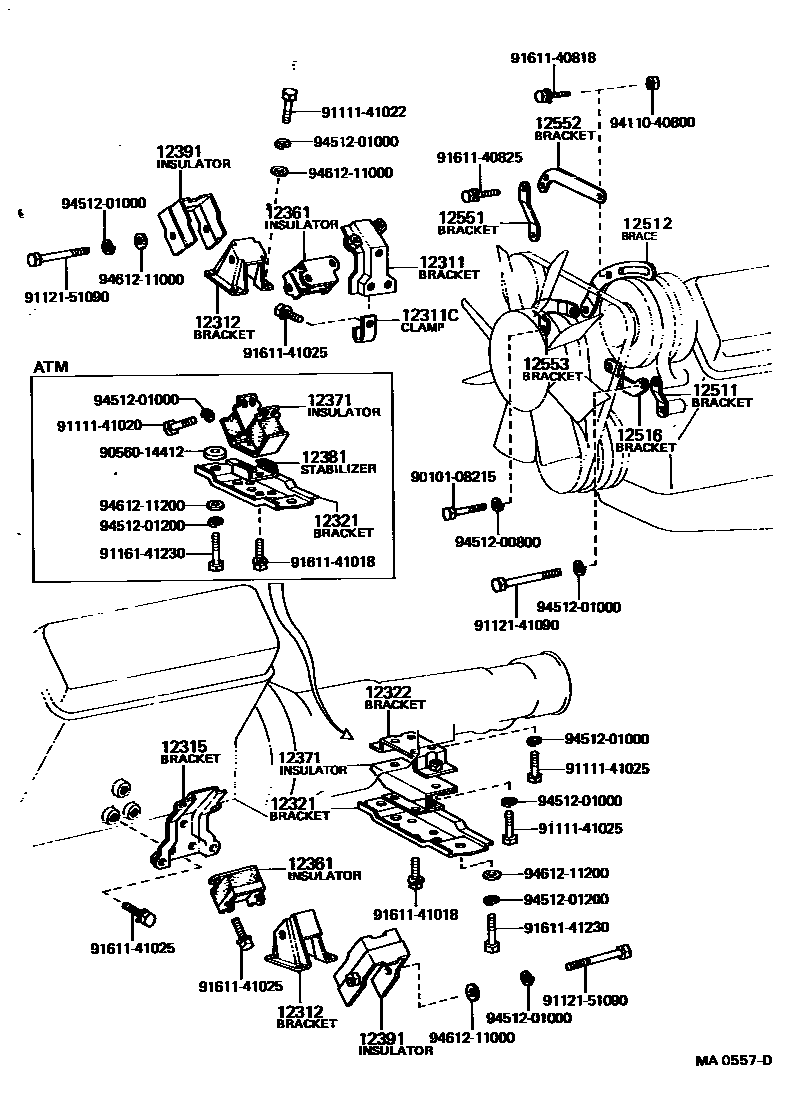

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-51010i3V,4V#..VG2#,30196711-197811

main12311-52010i4VEU..VG35197811-198209

12311CCLAMP(FOR ENGINE MOUTING BRACKET)

main90461-10030i3V,4V#..VG2#,3#196711-198103

main90461-10857i4VEU..VG35198103-198209

12312BRACKET, ENGINE MOUNTING, FRONT NO.2

main12312-51010×2i3V,4V#..VG2#,3#196711-198209

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-51010i3V,4V#..VG2#,30196711-197811

main12315-52010i4VEU..VG35197811-198209

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-51010i3V..VG20196711-196910

main12321-51011i3V,4V#..VG2#,3#196910-198209

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-51010i3V,4V..VG2#..MTM196711-197405

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-51010×2i3V,4V..VG2#196711-197505

main12361-52010×2i4VU..VG21,30197505-197811

main12361-52020×2i4VEU..VG35197811-198209

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-51011i3V..VG20..ATM196711-196902

main12371-51012i3V..VG20..ATM196902-197211

sub90560-14412

main12371-51013i3V,4V#..VG2#,30..ATM197211-197811

main12371-51021i3V,4V..VG2#..MTM196711-197405

12381STABILIZER, ENGINE MOUNTING

main12381-51010i3V..VG20..ATM196902-197211

sub90560-14412

main12381-51011i3V,4V#..VG2#,30..ATM197211-197811

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-51010×2i3V,4V..VG2#196711-197505

main12391-52010×2i4VU..VG21,30197505-197811

main12391-52020i4VEU..VG35197811-198209

12511BRACKET, ALTERNATOR, NO.1

main12511-51010i3V,4V#..VG2#,3#196711-198209

12512BRACE, ALTERNATOR

main12512-51011i3V,4V#..VG2#,3#196711-198209

12516BRACKET, ALTERNATOR, NO.2

main12516-51010i3V,4V#..VG2#,3#196711-198209

12551BRACKET, VACUUM PUMP, NO.1

main12551-51010i3V,4V..VG2#196711-197505

12552BRACKET, VACUUM PUMP, NO.2

main12552-51010i3V,4V..VG2#196711-197505

main12552-52010i4V#..VG21,3#197505-198209

12553BRACKET, VACUUM PUMP, NO.3

main12553-51010i3V,4V..VG2#196711-197505

main12553-52010i4V#..VG21,3#197505-198209

9010108215

main90101-08215

9056014412

main90560-14412

9111141020

main91111-41020

9111141022

main91111-41022

9111141025

main91111-41025

9112141090

main91121-41090

9112151090

main91121-51090

9116141230

main91161-41230

9161140818

main91611-40818

9161140825

main91611-40825

9161141018

main91611-41018

9161141025

main91611-41025

9161141230

main91611-41230

9411040800

main94110-40800

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9461211000

main94612-11000

9461211200

main94612-11200

35 parts on this diagram · 3 diagrams in section
