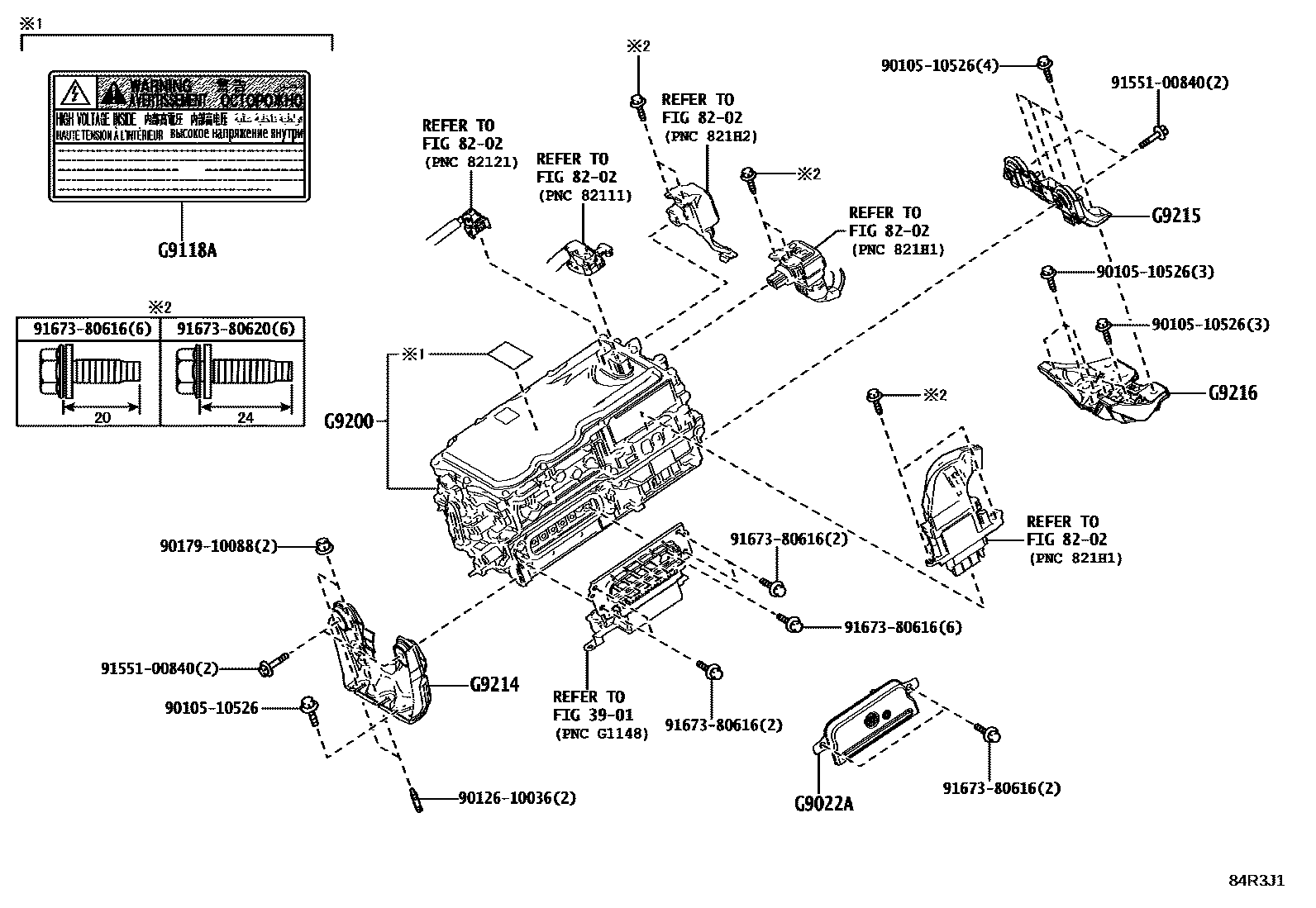

HEV INVERTER

0001 1 0002 1 0003 1

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAZSH3#202406

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAZSH3#202406

G9200INVERTER ASSY, W/CONVERTER

mainG92A030132iAZSH38202406

G9214BRACKET, INVERTER, NO.1

mainG921442010iAZSH39202407

mainG921448070iAZSH38202406

G9215BRACKET, INVERTER, NO.2

mainG921542010iAZSH38202406

mainG921542020iAZSH39202407

G9216BRACKET, INVERTER, NO.3

mainG921642020iAZSH39202407

mainG921678020iAZSH38202406

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

14 parts on this diagram · 3 diagrams in section
