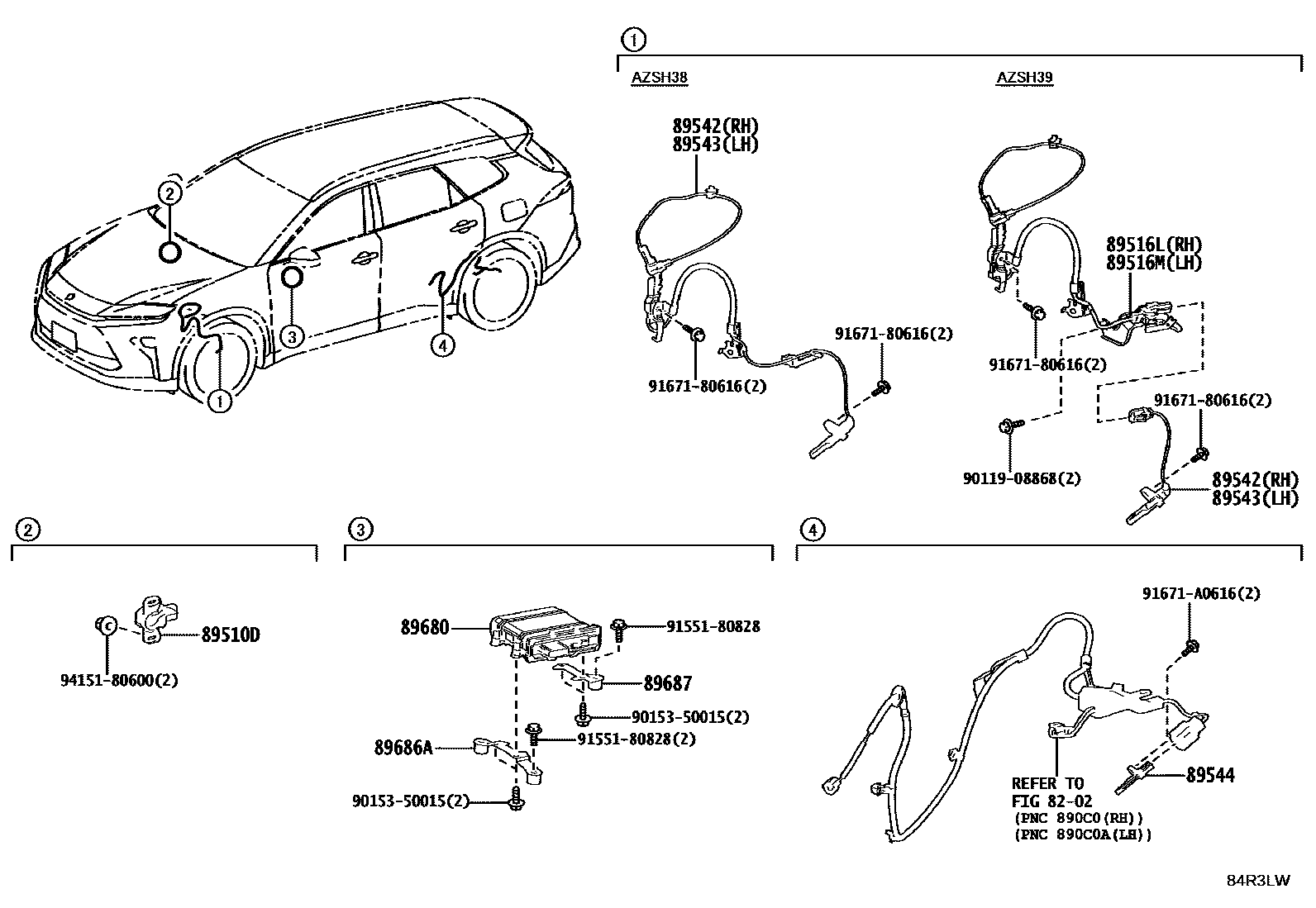

ABS & VSC

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAZSH3#202406

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-30240iAZSH39202407

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-30250iAZSH39202407

89542SENSOR, SPEED, FRONT RH

main89542-30320iAZSH38202406

main89542-78040iAZSH39202407

89543SENSOR, SPEED, FRONT LH

main89543-30310iAZSH38202406

main89543-78040iAZSH39202407

89544SENSOR, SKID CONTROL

main89544-48050iAZSH3#202406

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iAZSH3#..RS,Z202406

main89680-48030iAZSH3#..G202406

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30140iAZSH3#202406

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-30020iAZSH3#202406

9011908868

main90119-08868

9015350015

main90153-50015

9155180828

main91551-80828

9167180616

main91671-80616

91671A0616

main91671-A0616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
