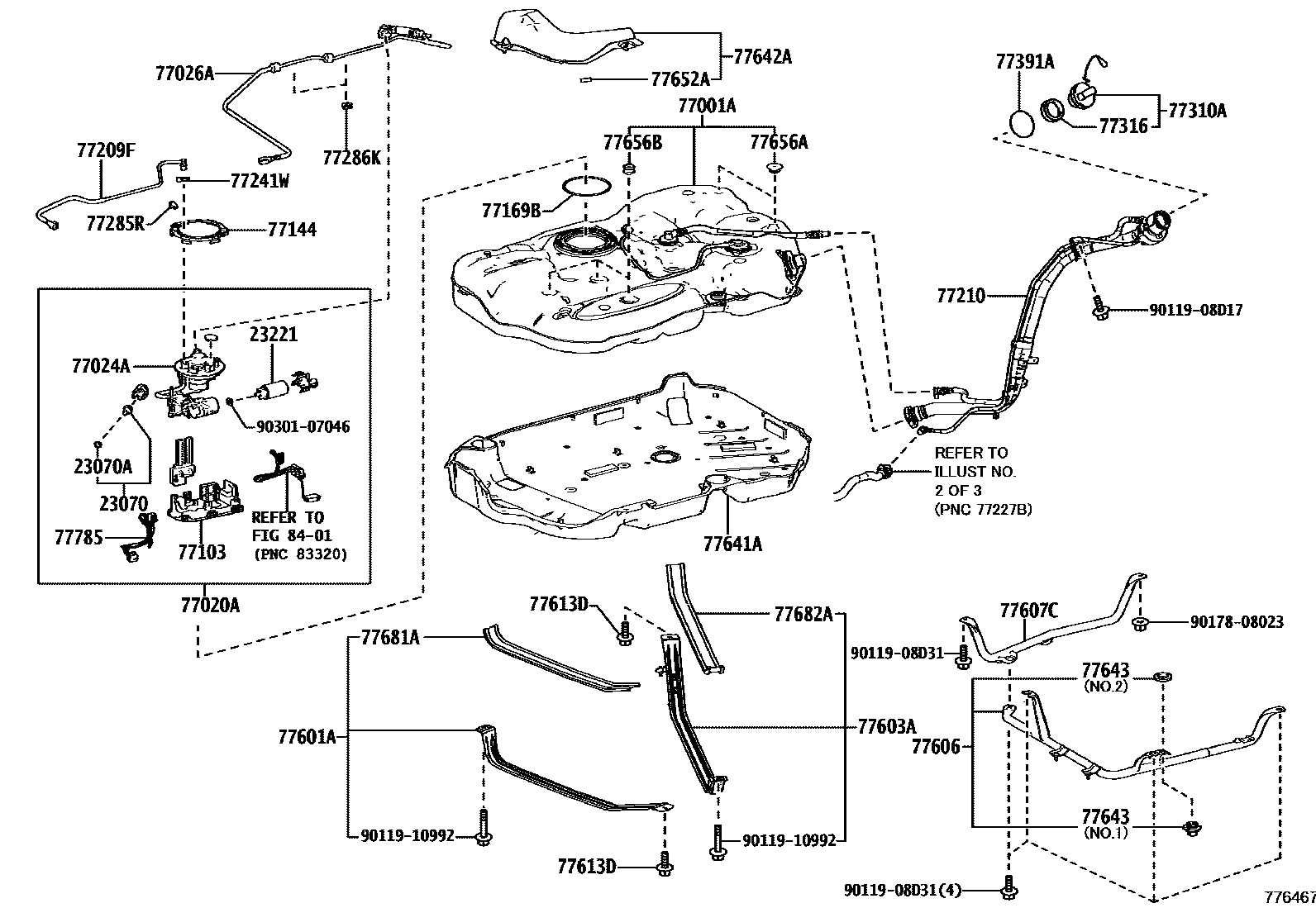

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iA25..AZSH38202406

main23070-25020iA25..AZSH39202407

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25..AZSH3#202406

23221PUMP, FUEL

main23221-24010iA25..AZSH38202406

main23221-25030iA25..AZSH39202407

77001ATANK SUB-ASSY, FUEL

main77001-30610iAZSH38202406

main77001-42480iAZSH39202407

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-42261iAZSH38202406

main77020-42300iAZSH39202407

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42131iAZSH38202406

main77024-42170iAZSH39202407

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-30130iAZSH38202406

77103SUB-TANK SUB-ASSY, FUEL

main77103-42090iAZSH38202406

main77103-42120iAZSH39202407

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAZSH3#202406

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iAZSH3#202406

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30430iAZSH38202406

main77209-42250iAZSH39202407

77210PIPE ASSY, FUEL TANK FILLER

main77210-30330iAZSH39202407

main77210-30350iAZSH38202406

77241WCLIP, TUBE JOINT

main77241-60550iAZSH38202406

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iAZSH3#202406

77286KCLAMP, FUEL TUBE, NO.2

main77286-30180iAZSH38202406

77310ACAP ASSY, FUEL TANK

main77300-12020iAZSH38202406

main77300-33040iAZSH39202407

77316GASKET, FUEL TANK CAP

main77316-52040iAZSH38202406

main77316-75020iAZSH39202407

77391ARING, FUEL INLET BOX

main77391-12020iAZSH3#202406

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120iAZSH38202406

main77601-42140iAZSH39202407

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77601-42140iAZSH39202407

main77602-30070iAZSH38202406

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30230iAZSH38202406

main77606-42080iAZSH39202407

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-30020iAZSH38202406

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-10A05iAZSH3#202406

77641APROTECTOR, FUEL TANK, NO.1

main77606-42060iAZSH38202406

main77641-42080iAZSH39202407

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAZSH38202406

77643RETAINER, FUEL TANK PROTECTOR

main51489-28020iAZSH38202406

main51499-28030iAZSH38202406

77652ACUSHION, FUEL TANK, NO.2

main77652-33060iAZSH39202407

main77652-42040iAZSH38202406

77656ACUSHION, FUEL TANK, NO.4

main77656-30040iAZSH38202406

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAZSH38202406

77681ASEAT, FUEL TANK BAND

main77681-42040iAZSH38202406

main77682-47020iAZSH39202407

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAZSH38202406

main77682-47020iAZSH39202407

77785HARNESS, FUEL PUMP

main77785-42061iAZSH38202406

main77785-42080iAZSH39202407

8401

9011908D17

main90119-08D17

9011908D31

main90119-08D31

9011910992

main90119-10992

9017808023

main90178-08023

9030107046

main90301-07046

38 parts on this diagram · 5 diagrams in section
