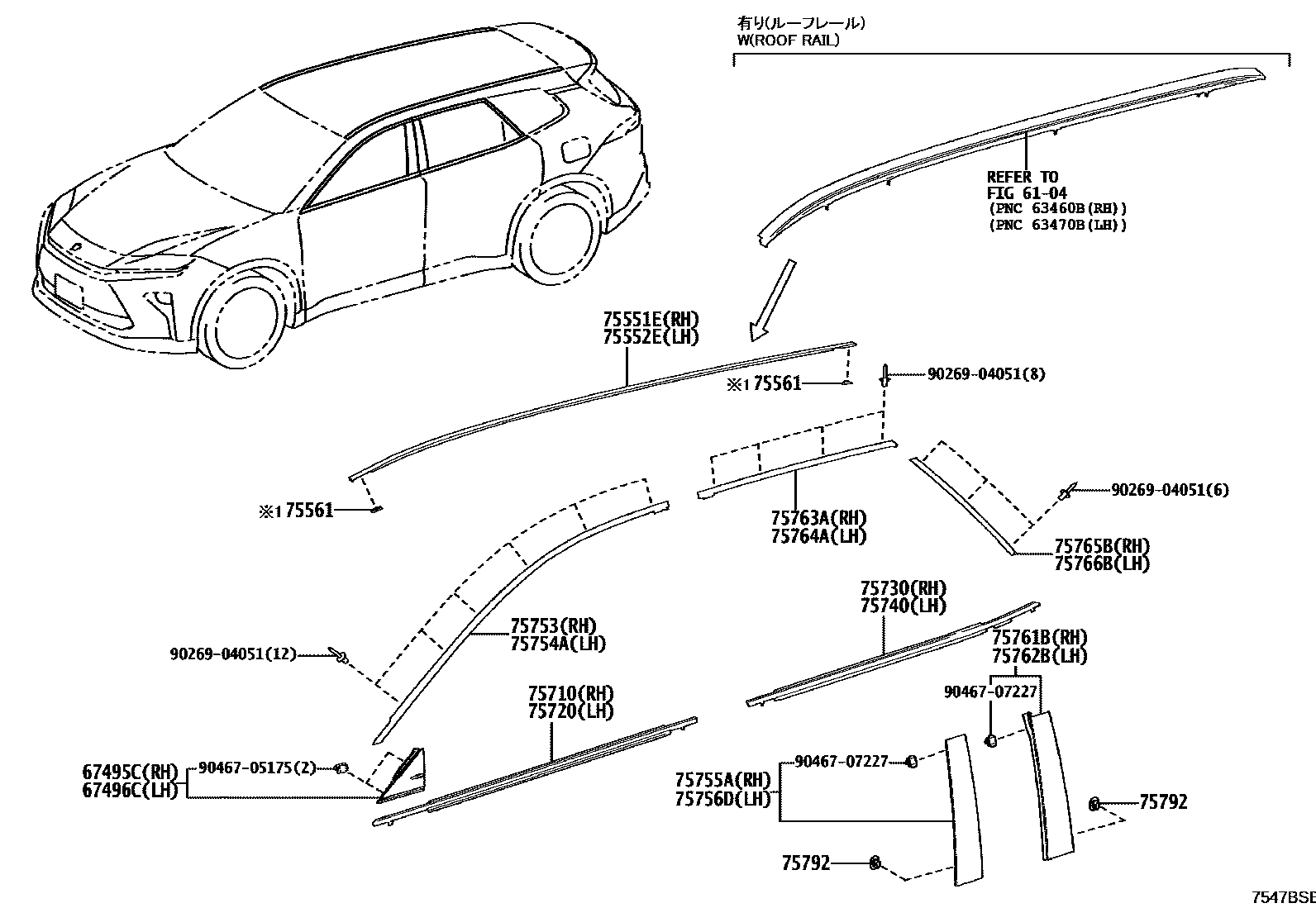

SIDE MOULDING

0001 1 0002 1

6104

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30160iAZSH3#¥1,630202406

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30160iAZSH3#¥1,630202406

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30610iAZSH3#..G¥5,300202406

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30610iAZSH3#..G¥5,300202406

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-48020iAZSH3#..G¥110202406

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30600iAZSH3#¥3,620202406

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30600iAZSH3#¥3,620202406

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30570iAZSH3#¥3,620202406

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30570iAZSH3#¥3,620202406

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30180iAZSH3#¥3,350202406

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30180iAZSH3#¥3,350202406

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-30220iAZSH3#¥2,070202406

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-30220iAZSH3#¥2,070202406

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-30200iAZSH3#¥2,070202406

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-30200iAZSH3#¥2,070202406

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30260iAZSH3#¥2,580202406

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30260iAZSH3#¥2,580202406

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-30210iAZSH3#¥1,400202406

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-30210iAZSH3#¥1,400202406

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iAZSH3#¥70202406

9026904051

main90269-04051¥40

9046705175

main90467-05175¥80

9046707227

main90467-07227¥80

24 parts on this diagram · 2 diagrams in section
