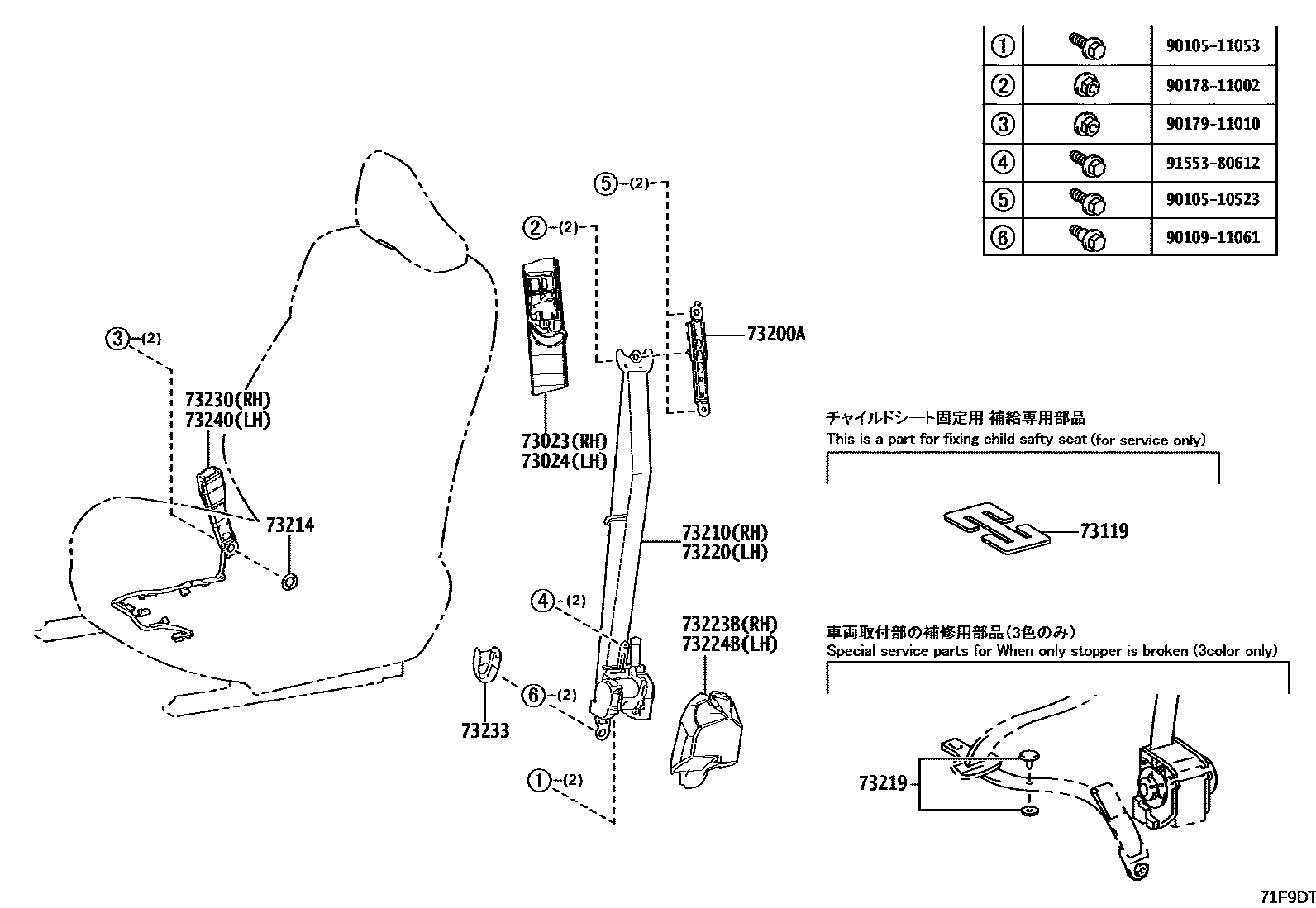

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iAZSH3#202406

BLACK,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iAZSH3#202406

BLACK,TRIM2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAZSH3#202406

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iAZSH3#202406

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76201-C1iAZSH3#202406

BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAZSH3#202406

73219STOPPER, TONGUE PLATE

main73219-33010iAZSH3#202406

main73219-33020iAZSH3#202406

main73219-33030iAZSH3#202406

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-C1iAZSH3#202406

BLACK,TRIM2#,4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30230iAZSH3#202406

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30150iAZSH3#202406

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30C90-C0iAZSH3#..G202406

BLACK,TRIM2#,4#

main73230-30D00-C0iAZSH3#..RS,Z202406

BLACK,TRIM2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAZSH3#..RS,Z202406

BLACK,TRIM0#,2#,4#

main73233-60020-C1iAZSH3#..RS,Z202406

BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-30530-C0iAZSH3#202406

BLACK,TRIM2#,4#

9010510523

main90105-10523

9010511053

main90105-11053

9010911061

main90109-11061

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
