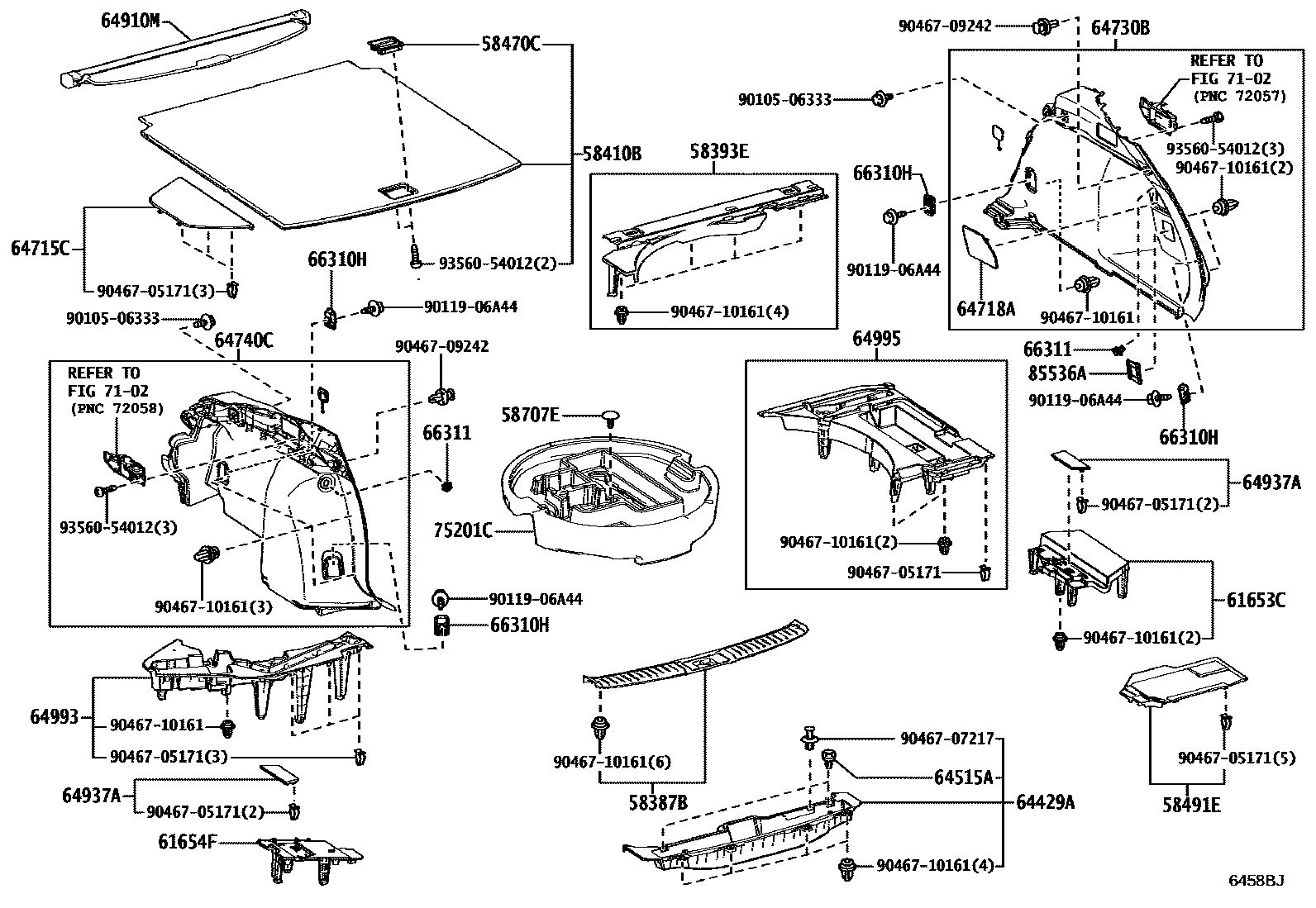

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58410BBOARD ASSY, DECK
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58491EPLATE, BATTERY SERVICE COVER
58707EPLUG SET, HOLE
61653CBRACKET, DECK SIDE TRIM, RH
61654FBRACKET, DECK SIDE TRIM, LH
64429ABOX, LUGGAGE COMPARTMENT TRIM
64515AHOLDER, LUGGAGE COMPARTMENT DOOR HOOK
BLACK
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#,4#
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
64910MCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,4#
64937ACAP, TONNEAU COVER HOLDER, NO.1
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
66310HHOOK ASSY, ROPE
66311HOOK, ROPE
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
7102
75201CBOX SUB-ASSY, TOOL, NO.1
85536ABEZEL, POWER OUTLET SOCKET
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
9010506333
main90105-06333
9011906A44
main90119-06A44
9046705171
main90467-05171
9046707217
main90467-07217
9046709242
main90467-09242
9046710161
main90467-10161
9356054012
main93560-54012
30 parts on this diagram · 5 diagrams in section
