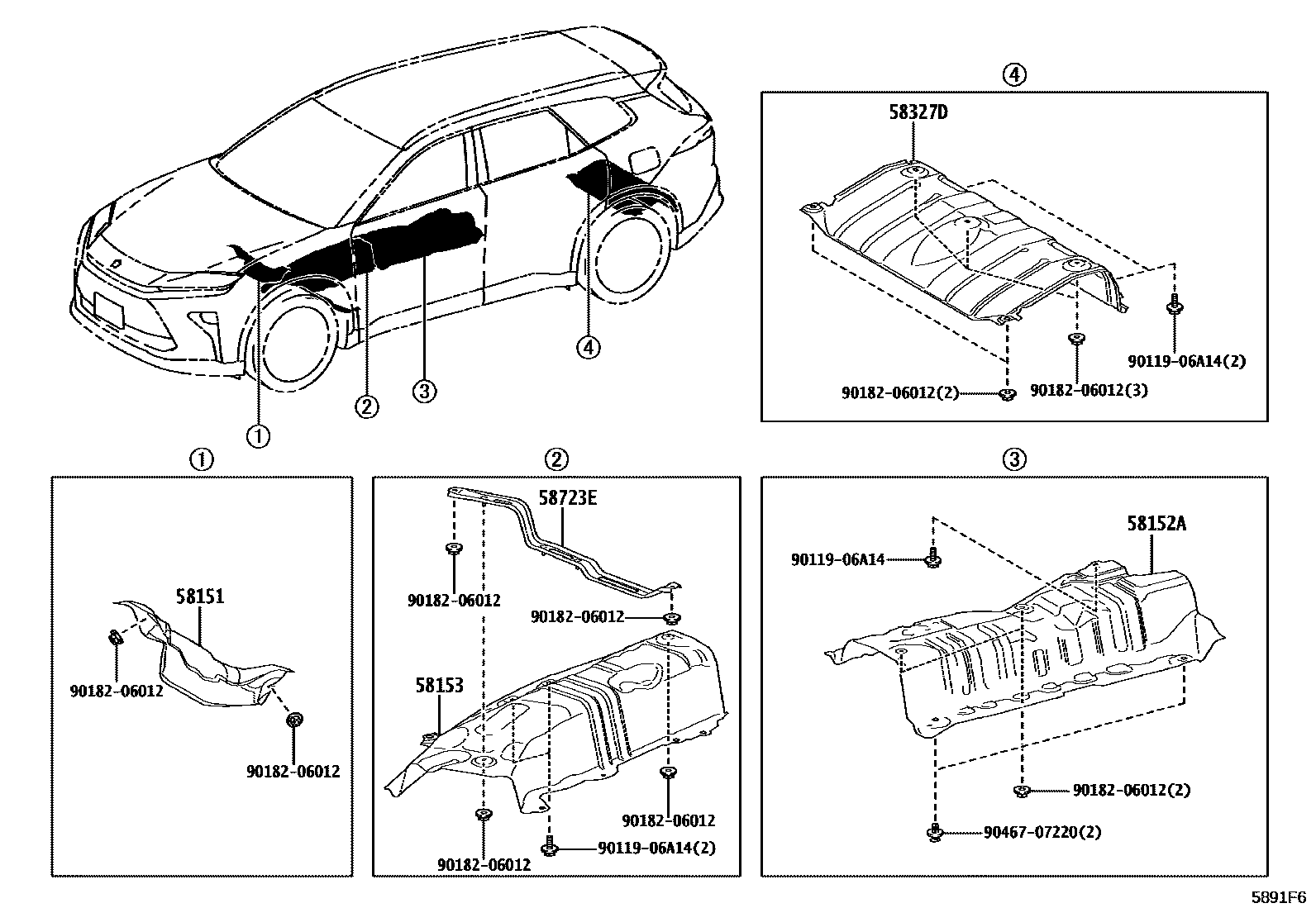

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30250iAZSH39202407

main58151-42060iAZSH38¥2,100202406

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-30110iAZSH39202407

main58152-30120iAZSH38¥4,750202406

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-30050iAZSH38¥5,300202406

main58153-30060iAZSH39202407

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-30120iAZSH3#¥4,690202406

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAZSH38¥2,330202406

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

8 parts on this diagram · 2 diagrams in section
