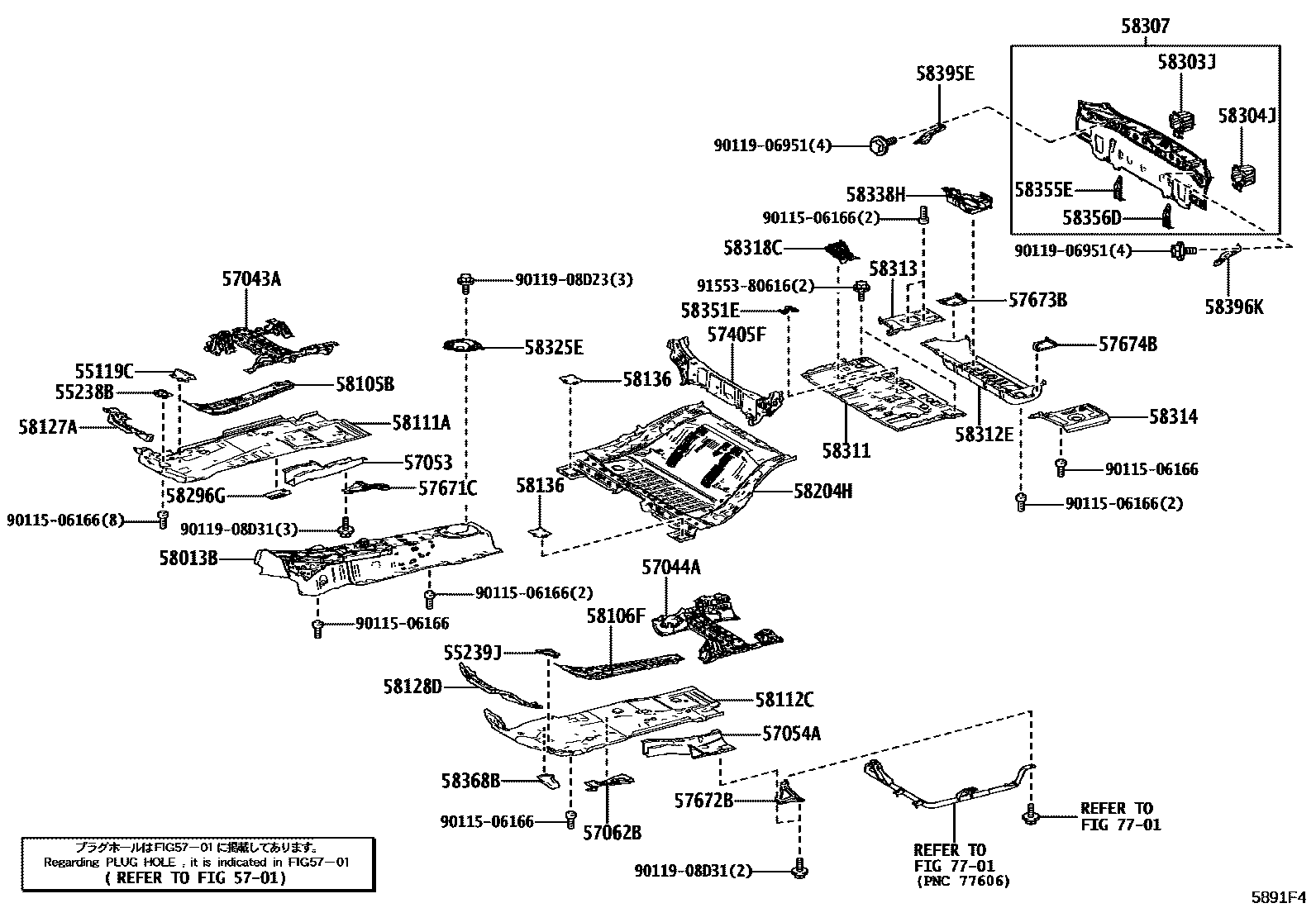

FLOOR PAN & LOWER BACK PANEL
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH
57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH
57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58296GBRACKET, FRONT FLOOR BRACE MOUNTING
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58312EPANEL, REAR FLOOR, REAR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58318CBRACKET, REAR FLOOR CROSSMEMBER
58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH
58351EBRACKET, SPARE WHEEL CLAMP
58355EBRACKET, REAR BUMPER ARM, RH
58356DBRACKET, REAR BUMPER ARM, LH
58395EGUSSET, BACK DOOR OPENING, LOWER RH
58396KGUSSET, BACK DOOR OPENING, LOWER LH
7701
9011506166
main90115-06166
9011906951
main90119-06951
9011908D23
main90119-08D23
9011908D31
main90119-08D31
9155380616
main91553-80616
46 parts on this diagram · 2 diagrams in section
