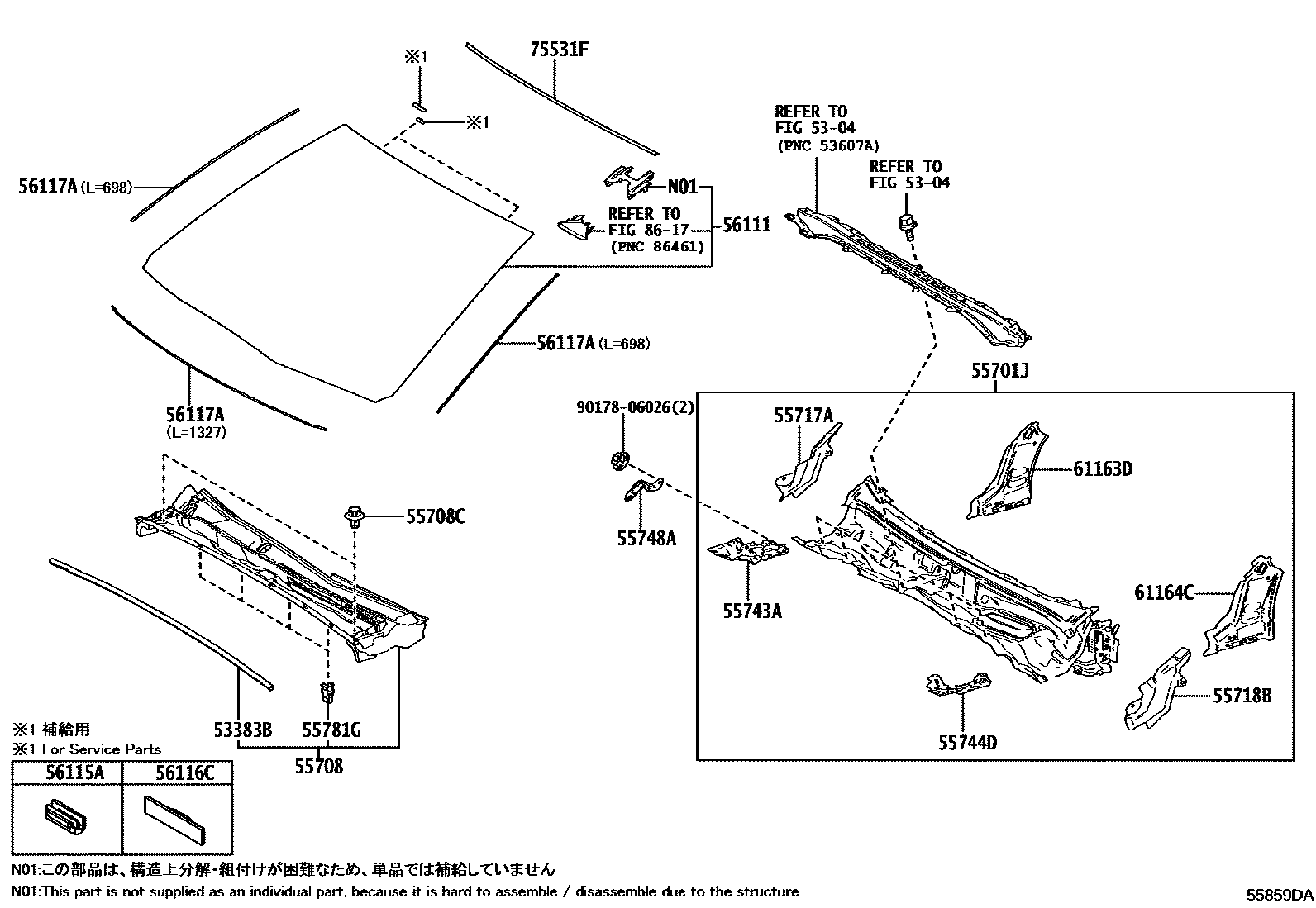

COWL PANEL & WINDSHIELD GLASS
5304
53383BSEAL, HOOD TO COWL TOP
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8617
9017806026
main90178-06026
20 parts on this diagram · 1 diagram in section
