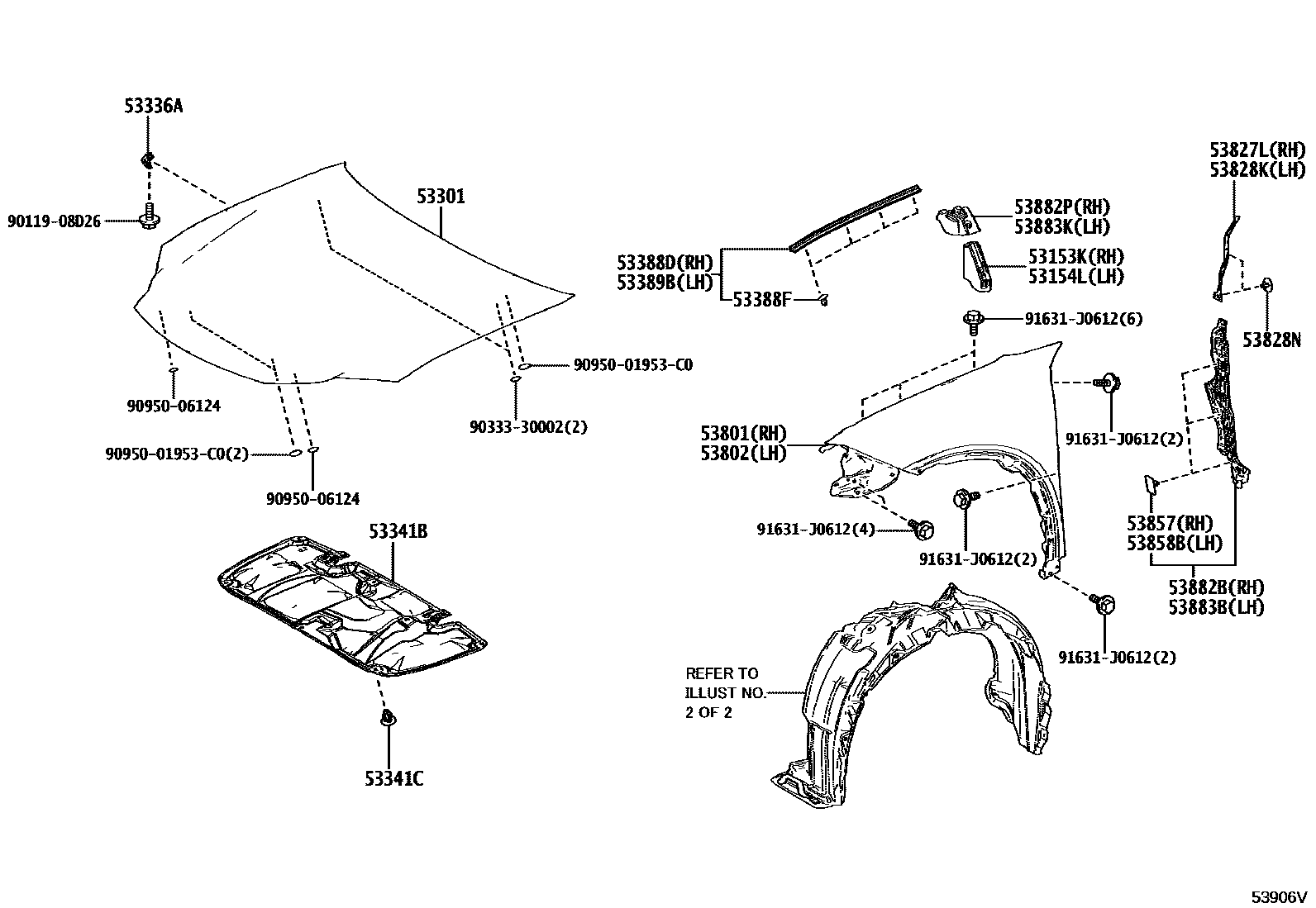

HOOD & FRONT FENDER

0001 1 0002 1

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30360iAZSH3#¥2,070202406

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30350iAZSH3#¥2,070202406

53301HOOD SUB-ASSY

main53301-30590iAZSH3#¥63,000202406

53336ABRACKET, HOOD STAY

main53336-42010iAZSH3#¥280202406

53341BINSULATOR, HOOD

main53341-30380iAZSH3#¥9,100202406

53341CCLIP(FOR HOOD INSULATOR)

main90467-07229iAZSH3#¥90202406

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30150iAZSH3#¥1,340202406

53388FRETAINER, HOOD TO FRONT FENDER SEAL

main67867-12150iAZSH3#¥100202406

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30140iAZSH3#¥1,340202406

53801FENDER SUB-ASSY, FRONT RH

main53801-30B30iAZSH3#¥31,800202406

53802FENDER SUB-ASSY, FRONT LH

main53802-30B20iAZSH3#¥31,800202406

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30140iAZSH3#¥600202406

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30150iAZSH3#¥600202406

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAZSH3#202406

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAZSH3#¥100202406

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAZSH3#¥100202406

53882BSEAL, FRONT FENDER, RH

main53882-30130iAZSH3#¥1,720202406

53882PSEAL, FRONT FENDER, RH

main53155-30150iAZSH3#¥1,930202406

53883BSEAL, FRONT FENDER, LH

main53883-30100iAZSH3#¥1,720202406

53883KSEAL, FRONT FENDER, LH

main53156-30070iAZSH3#¥2,070202406

9011908D26

main90119-08D26¥80

9033330002

main90333-30002¥70

9095001953C0

main90950-01953C0

9095006124

main90950-06124¥90

91631J0612

main91631-J0612¥110

25 parts on this diagram · 2 diagrams in section
