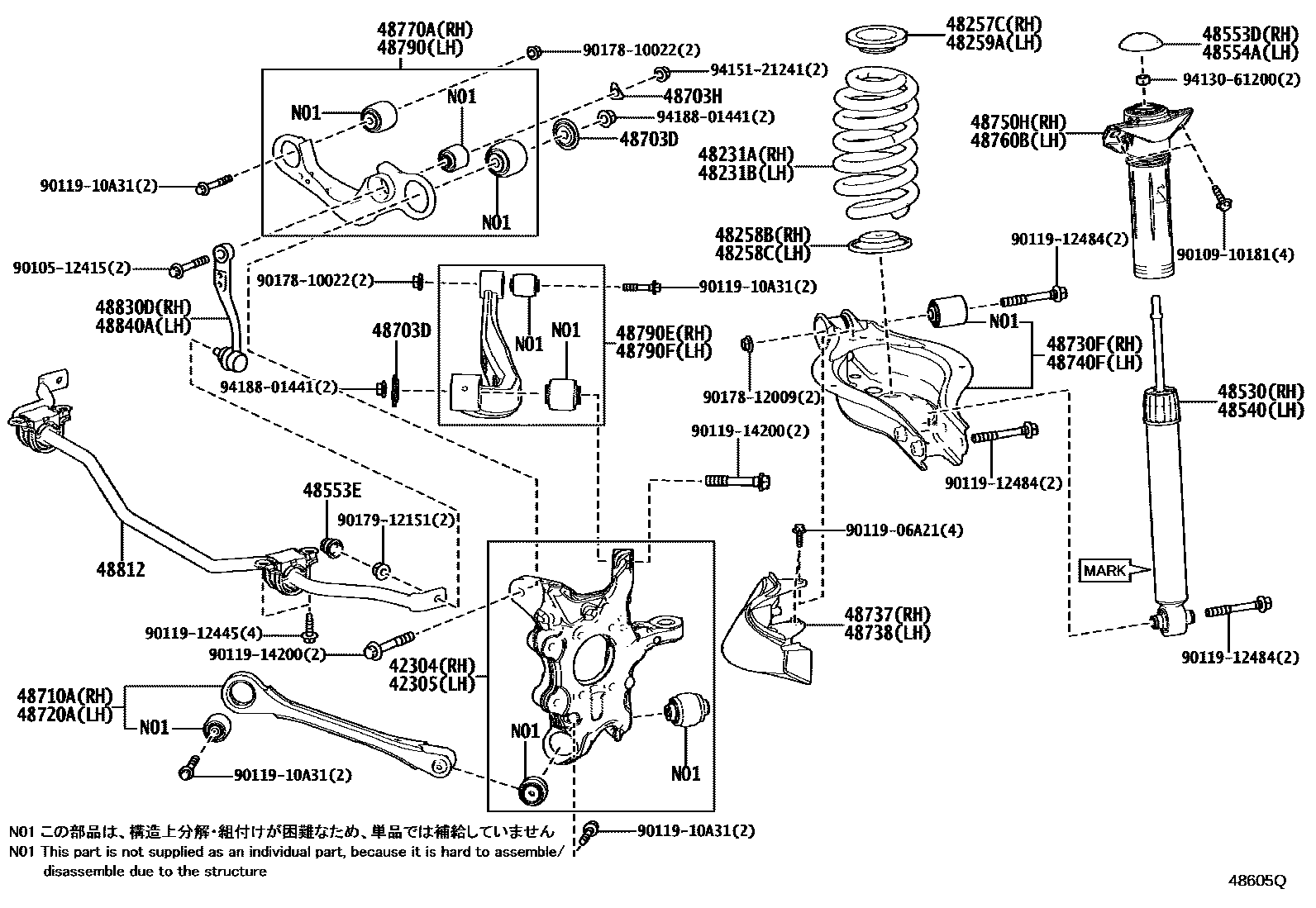

REAR SPRING & SHOCK ABSORBER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48703DWASHER(FOR REAR SUSPENSION ARM)
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48790EARM ASSY, UPPER CONTROL, REAR RH NO.2
48790FARM ASSY, UPPER CONTROL, REAR LH NO.2
48812BAR, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512415
main90105-12415
9010910181
main90109-10181
9011906A21
main90119-06A21
9011910A31
main90119-10A31
9011912445
main90119-12445
9011912484
main90119-12484
9011914200
main90119-14200
9017810022
main90178-10022
9017812009
main90178-12009
9017912151
main90179-12151
9413061200
main94130-61200
9415121241
main94151-21241
9418801441
main94188-01441
43 parts on this diagram · 2 diagrams in section
