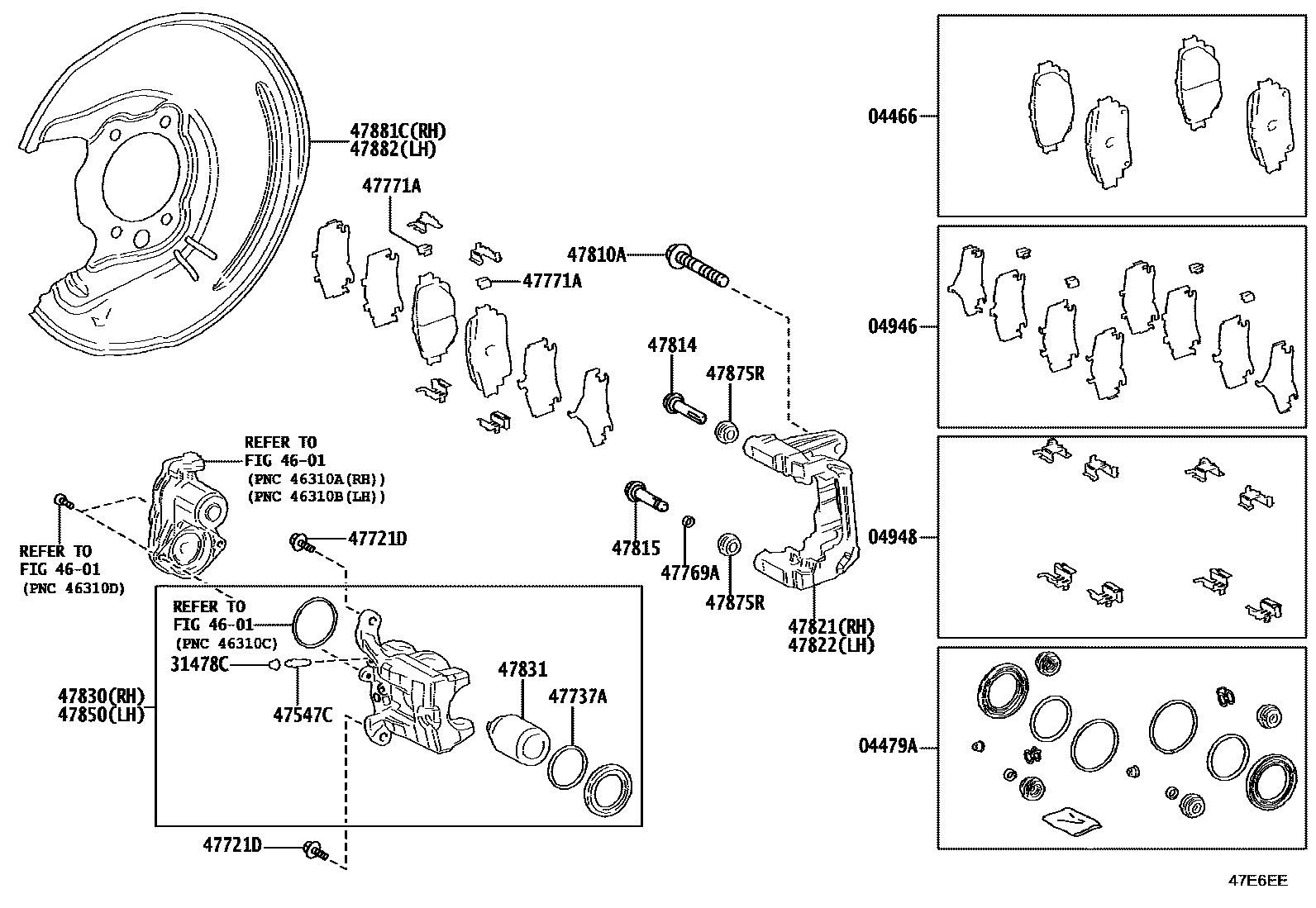

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAZSH38¥6,600202406

main04466-48170iAZSH39¥6,600202407

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iAZSH38¥2,200202406

main04479-58031iAZSH39¥2,470202407

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAZSH38¥1,780202406

main04946-48140iAZSH39..G¥1,780202407

main04946-48150iAZSH39..RS,Z¥1,780202407

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071iAZSH39..G¥1,730202407

main04948-48120iAZSH39..RS,Z¥1,730202407

main04948-V2010iAZSH38¥1,040202406

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAZSH3#¥160202406

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAZSH3#¥200202406

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAZSH3#¥270202406

47737ASEAL, REAR DISC BRAKE CYLINDER PISTON

main47737-28040iAZSH38¥90202406

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAZSH3#¥50202406

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-78010iAZSH38¥140202406

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12426iAZSH38¥240202406

main90105-14218iAZSH39¥310202407

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAZSH3#¥510202406

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAZSH3#¥510202406

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30490iAZSH39..RS,Z¥5,300202407

main47821-42100iAZSH38¥4,780202406

main47821-48160iAZSH39..G¥4,780202407

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30490iAZSH39..RS,Z¥5,300202407

main47822-42090iAZSH38¥4,780202406

main47822-48160iAZSH39..G¥4,780202407

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30490iAZSH39..RS,Z¥28,700202407

main47830-48160iAZSH39..G¥26,100202407

main47850-42090iAZSH38¥26,100202406

47831PISTON, REAR DISC BRAKE

main47831-30460iAZSH39¥920202407

main47831-58040iAZSH38¥1,060202406

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-42100iAZSH38¥26,100202406

main47850-30490iAZSH39..RS,Z¥28,700202407

main47850-48160iAZSH39..G¥26,100202407

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAZSH3#¥70202406

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020iAZSH3#¥1,530202406

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020iAZSH3#¥1,530202406

22 parts on this diagram · 3 diagrams in section
