FRONT AXLE HUB

4302

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZSH3#202406

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZSH3#202406

43512JDISC, FRONT RH

main43512-48190iAZSH39..RS,Z202407

main43512-78010iAZSH38202406

main43512-78030iAZSH39..G202407

43516DISC, FRONT LH

main43512-78010iAZSH38202406

main43512-78030iAZSH39..G202407

main43516-48010iAZSH39..RS,Z202407

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-48040iAZSH3#202406

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-48040iAZSH3#202406

4802

9011010020

main90110-10020

91552P1250

main91552-P1250

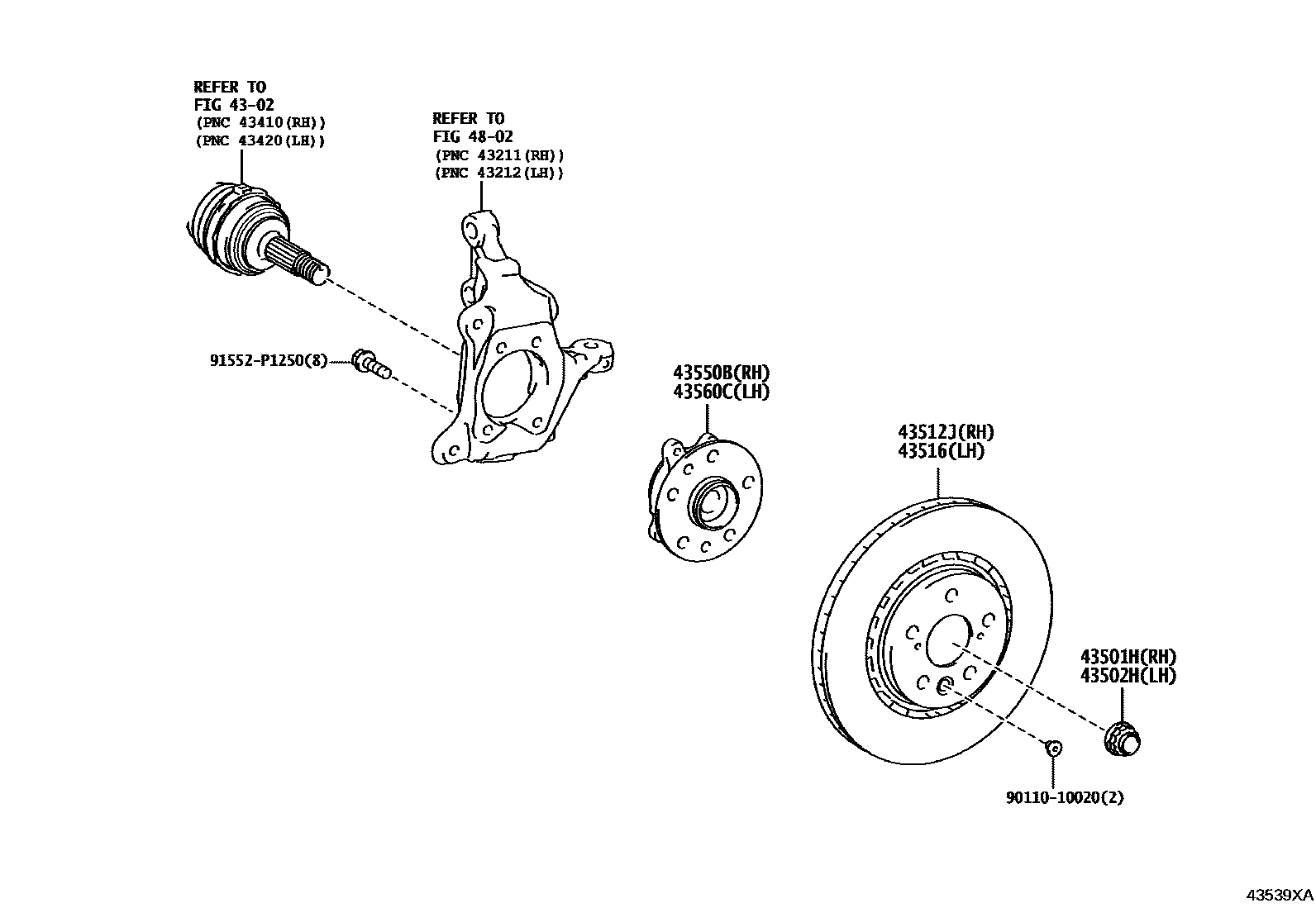

10 parts on this diagram · 1 diagram in section
