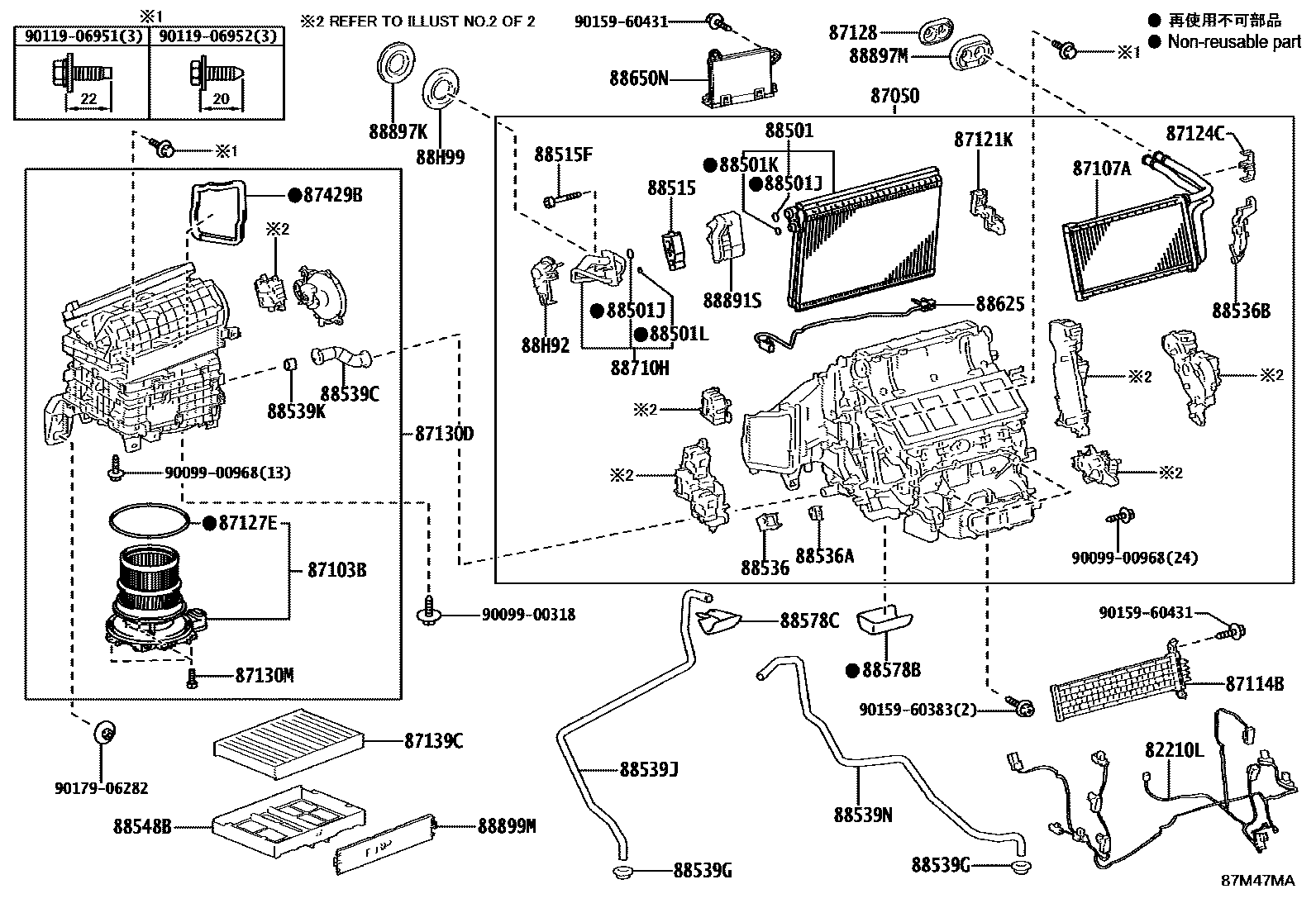

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1���������

82210LHARNESS ASSY, AIR CONDITIONER, NO.2

main82212-50190iAZSH32..G202311

main82212-62020iAZSH32,KZSM30..Z202311

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30790iAZSH32..G202311

main87050-30830iAZSH32..Z202311

main87050-62120iKZSM30202311

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50190iAZSH32,KZSM30202311

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-11020iAZSH32202311

main87107-62030iKZSM30202311

87114BCOVER, HEATER

main87114-30010iAZSH32,KZSM30202311

87121KBRACKET, HEATER

main87121-11040iAZSH32,KZSM30202311

87124CCLAMP, HEATER

main87124-30020iAZSH32202311

main87124-33070iKZSM30202311

87127EPACKING, HEATER

main87127-11010iAZSH32,KZSM30202311

87128GROMMET, HEATER

main87128-28010iAZSH32,KZSM30202311

87130DBLOWER ASSY

main87130-50190iAZSH32,KZSM30202311

87130MSCREW(FOR BLOWER)

main87193-87101iAZSH32,KZSM30202311

87139CFILTER, CLEAN AIR

main87139-50110iAZSH32,KZSM30202311

87429BPACKING, COOLER UNIT, NO.1

main87429-53010iAZSH32,KZSM30202311

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30A30iAZSH32,KZSM30202311

88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)

main90099-14121iAZSH32,KZSM30202311

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iAZSH32,KZSM30202311

88501LO-RING, COOLER EVAPORATOR NO.2(LIQUID)

main90099-14119iAZSH32,KZSM30202311

88515VALVE, COOLER EXPANSION

main88515-50320iAZSH32,KZSM30202311

88515FBOLT(FOR COOLER EXPANSION VALVE)

main88899-44050iAZSH32,KZSM30202311

88536BRACKET, COOLING UNIT, NO.1

main87241-11020iAZSH32,KZSM30202311

88536ABRACKET, COOLING UNIT, NO.2

main87241-11040iAZSH32,KZSM30202311

88536BBRACKET, COOLING UNIT, NO.3

main87241-11060iAZSH32,KZSM30202311

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-11050iAZSH32,KZSM30202311

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029iAZSH32,KZSM30202311

88539JHOSE, DRAIN COOLER

main88539-11030iAZSH32,KZSM30202311

88539KHOSE, DRAIN COOLER

main88539-30A00iAZSH32,KZSM30202311

88539NHOSE, COOLER UNIT DRAIN, NO.4

main88539-50200iAZSH32,KZSM30202311

88548BCASE, AIR FILTER

main88899-50140iAZSH32,KZSM30202311

88578BPACKING, COOLING UNIT, NO.1

main88578-11010iAZSH32,KZSM30202311

88578CPACKING, COOLING UNIT, NO.2

main88578-11020iAZSH32,KZSM30202311

88625THERMISTOR, COOLER, NO.1

main88620-50020iAZSH32,KZSM30202311

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-30070iKZSM30202311-202409

main886H0-30071iKZSM30202409

main886H0-30080iAZSH32..Z202311-202411

main886H0-30081iAZSH32..Z202411

main886H0-30090iAZSH32..G202311-202411

main886H0-30091iAZSH32..G202411

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-11020iAZSH32,KZSM30202311

88891SCOVER, COOLER, NO.1

main88891-50120iAZSH32,KZSM30202311

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iAZSH32,KZSM30202311

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iAZSH32,KZSM30202311

88899MPLATE, COVER(FOR AIR FILTER)

main88899-50150iAZSH32,KZSM30202311

88H92COVER, COOLER, NO.2

main88892-50140iAZSH32,KZSM30202311

88H99PARTS, COOLING UNIT

main88899-11020iAZSH32,KZSM30202311

9009900318

main90099-00318

9009900968

main90099-00968

9011906951

main90119-06951

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

46 parts on this diagram · 2 diagrams in section
