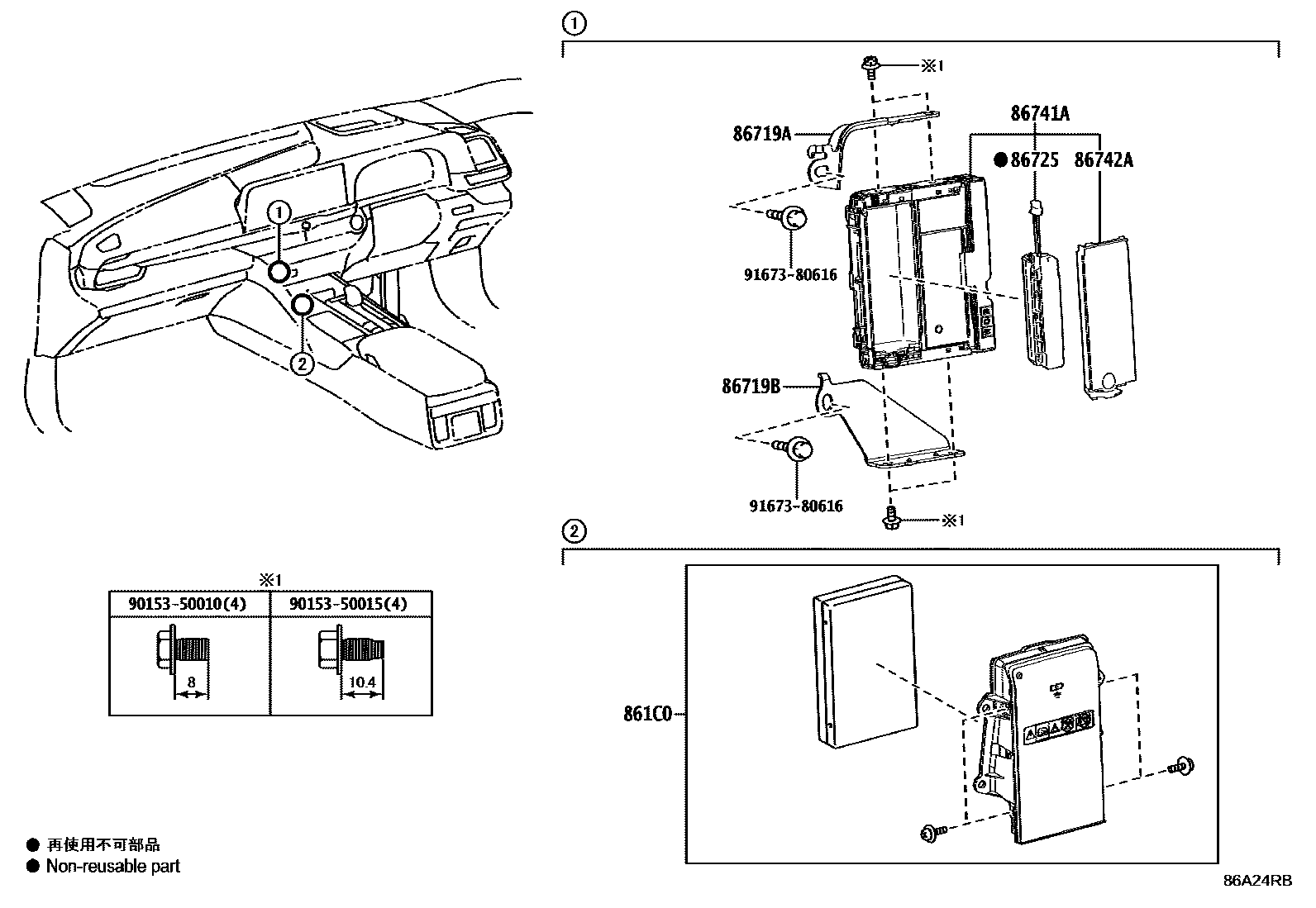

TELEPHONE & MAYDAY

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-30030iAZSH32,KZSM30..Z¥34,800202311-202407

sub861C0-30031¥31,600

main861C0-30031iAZSH32,KZSM30..Z¥31,600202408

86719ABRACKET, TELEPHONE NO.1

main86719-30540iAZSH32,KZSM30¥510202311

86719BBRACKET, TELEPHONE NO.2

main86719-30550iAZSH32,KZSM30¥750202311

86725BATTERY, MOBILEPHONE

main86725-78020iAZSH32,KZSM30¥7,500202311

86741ATRANSCEIVER, TELEMATICS

main86741-42220iAZSH32,KZSM30¥38,000202311-202401

sub86741-42221¥34,500

main86741-42221iAZSH32,KZSM30¥34,500202402

86742ACOVER, TRANSCEIVER

main86742-26010iAZSH32,KZSM30¥720202311

9015350010

main90153-50010¥70

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9 parts on this diagram · 1 diagram in section
