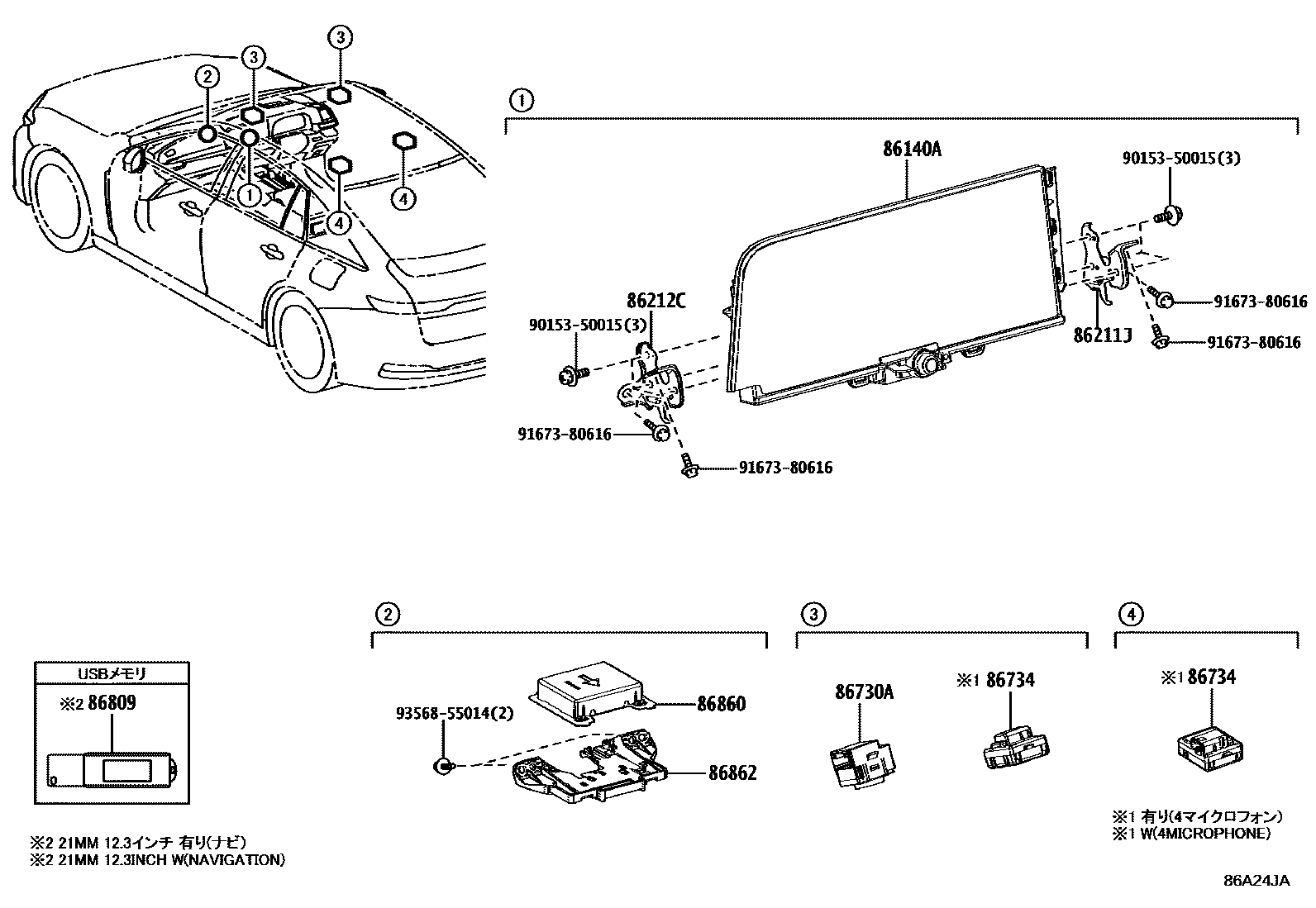

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-30560iKZSM30202311-202405

main86100-30561iKZSM30202406-202411

main86100-30562iKZSM30202412

main86100-30580iAZSH32..Z202311-202405

main86100-30581iAZSH32..Z202406-202411

main86100-30582iAZSH32..Z202412

main86140-30090iAZSH32..G202311-202405

main86140-30091iAZSH32..G202406-202411

main86140-30092iAZSH32..G202412

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-12470iAZSH32,KZSM30202311

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-12460iAZSH32,KZSM30202311

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iAZSH32,KZSM30202311

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iAZSH32202311

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78013iAZSH32,KZSM30..Z202404-202410

sub86809-78014

main86809-78014iAZSH32,KZSM30..Z202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-52030iAZSH32,KZSM30202311

86862BRACKET, NAVIGATION ANTENNA

main86862-48060iAZSH32,KZSM30202311

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

11 parts on this diagram · 1 diagram in section
