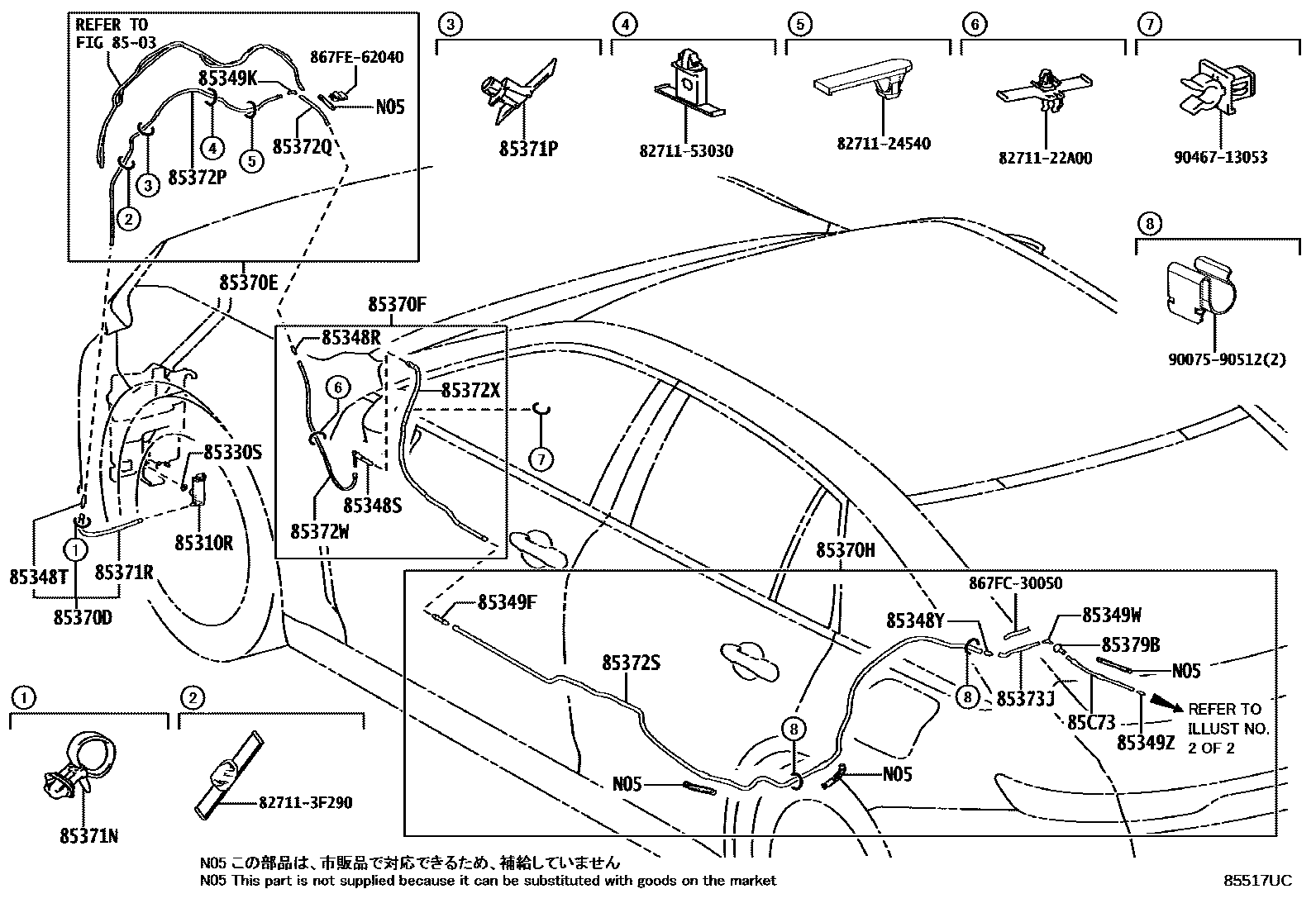

REAR WASHER
8503
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85349WJOINT, REAR WASHER ELBOW, NO.4
85349ZJOINT, REAR WASHER HOSE, NO.6
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85370HHOSE ASSY, REAR WASHER, NO.4
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373JHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11
85379BGROMMET, WASHER, A
85C73HOSE, REAR WASHER, NO.12(FROM JOINT TO JOINT)
8271122A00WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22A00
8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24540
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271153030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-53030
867FC30050CUSHION, CLEANER HOSE
main867FC-30050
867FE62040
main867FE-62040
9007590512
main90075-90512
9046713053
main90467-13053
34 parts on this diagram · 2 diagrams in section
