FCEV STACK & CONVERTER

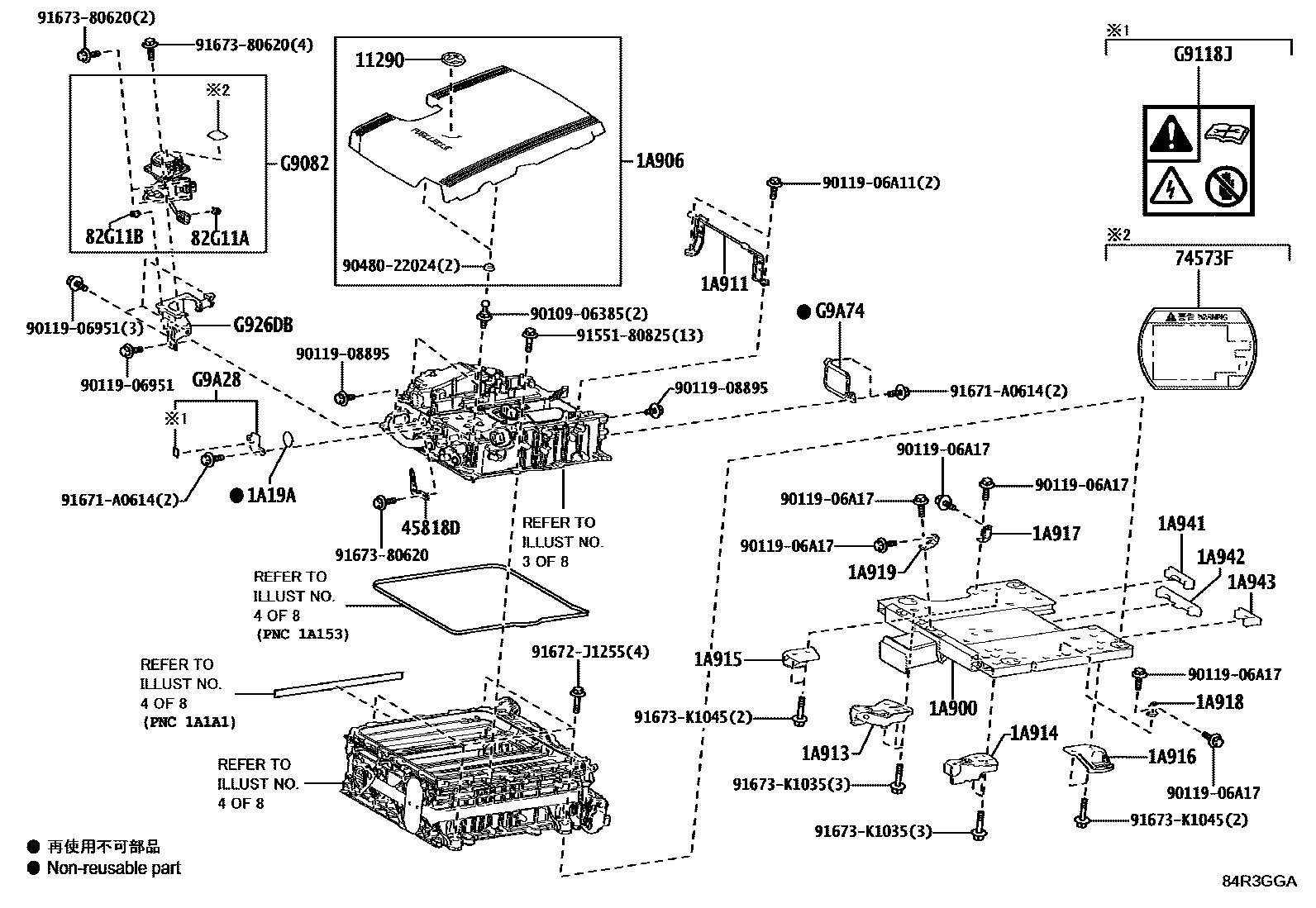

Parts diagram

11290PLATE ASSY, FC STACK NAME

main1A90B-77010i202311

1A19APLUG, FC STACK CASE, NO.1

main1A19A-77020i202311

1A900FRAME ASSY, FC STACK

main1A900-77010i202311

1A906COVER SUB-ASSY, FC STACK

main1A906-77021i202311

1A911BRACKET, FC STACK COVER

main1A911-77010i202311

1A913BRACKET, FC MOUNTING, FRONT RH

main1A913-77010i202311

1A914BRACKET, FC MOUNTING, FRONT LH

main1A914-77010i202311

1A915BRACKET, FC MOUNTING, REAR RH

main1A915-77020i202311

1A916BRACKET, FC MOUNTING, REAR LH

main1A916-77010i202311

1A917BRACKET, FC STACK FRAME SUPPORT, RH

main1A917-77010i202311

1A918BRACKET, FC STACK FRAME SUPPORT, LH

main1A918-77010i202311

1A919BRACKET, FC STACK FRAME SUPPORT, FRONT

main1A919-77010i202311

1A941COVER, FC STACK FRAME, NO.1

main1A941-77010i202311

1A942COVER, FC STACK FRAME, NO.2

main1A942-77010i202311

1A943COVER, FC STACK FRAME, NO.3

main1A943-77010i202311

45818DBRACKET, CONNECTOR

main45818-62010i202311

74573FLABEL, EV BATTERY CAUTION

main74573-62020i202311

82G11ACLAMP, WIRING HARNESS, NO.1

main82711-1E320i202311

82G11BCLAMP, WIRING HARNESS, NO.2

main82711-60320i202311

G9082CABLE, DC EV POWER SUPPLY

mainG908262010i202311

G9118JLABEL, UNIT CONTROLLER CAUTION, NO.1

mainG911862011i202311

G926DBBRACKET, EV CHARGE CONNECTOR

mainG926D62020i202311

G9A28COVER, FC CONVERTER SERVICE HOLE, FRONT

mainG9A2862021i202311

G9A74COVER, FC CONVERTER VENT

mainG9A7462011i202311

9010906385

main90109-06385

9011906951

main90119-06951

9011906A11

main90119-06A11

9011906A17

main90119-06A17

9011908895

main90119-08895

9048022024

main90480-22024

9155180825

main91551-80825

91671A0614

main91671-A0614

91672J1255

main91672-J1255

9167380620

main91673-80620

91673K1035

main91673-K1035

91673K1045

main91673-K1045

36 parts on this diagram · 8 diagrams in section
