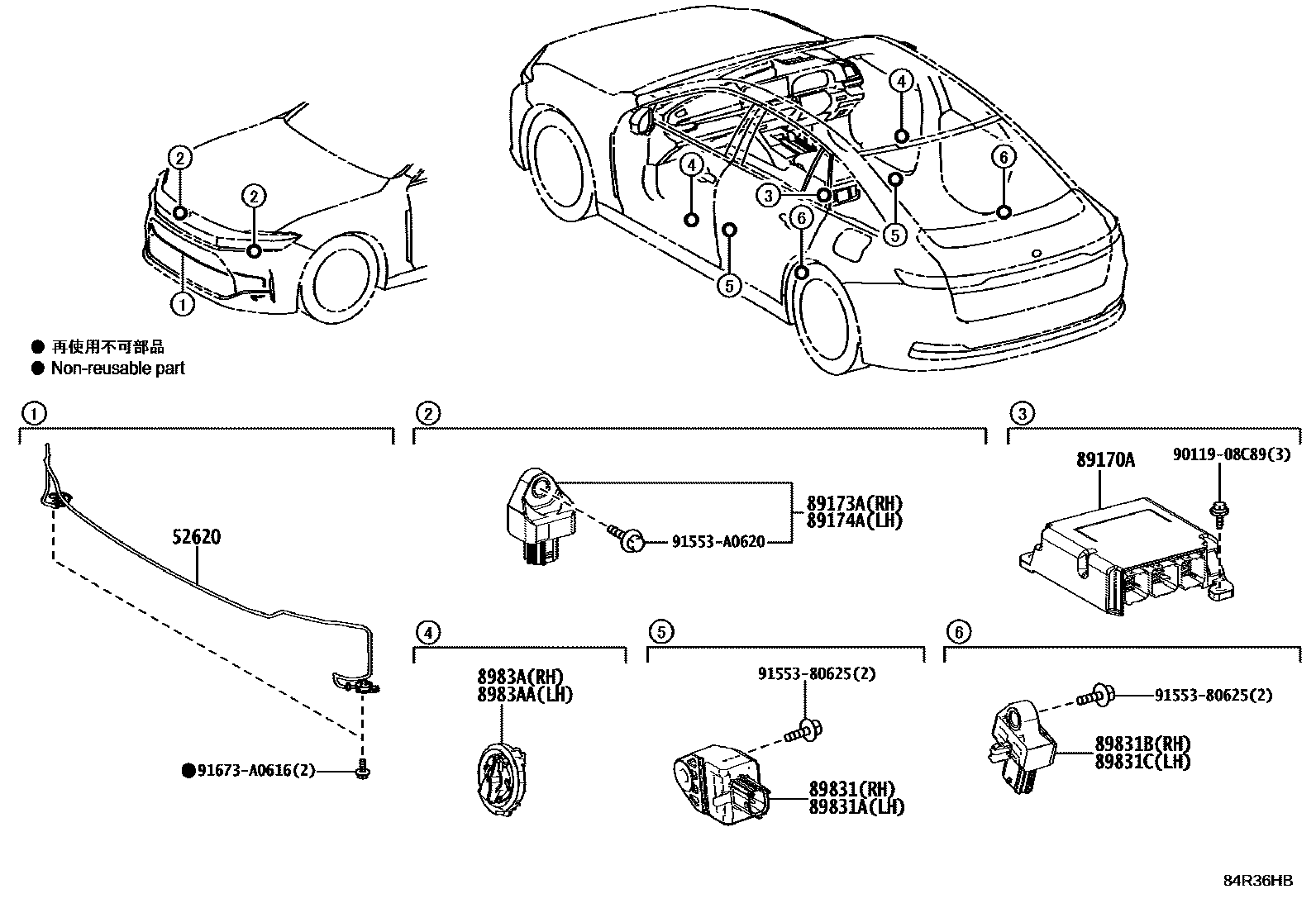

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-62010iAZSH32,KZSM30202311

89170ACOMPUTER ASSY, AIRBAG

main89170-30J70iAZSH32,KZSM30202311-202506

89173ASENSOR, AIRBAG, FRONT RH

main89173-59335iAZSH32,KZSM30202311

89174ASENSOR, AIRBAG, FRONT LH

main89173-59335iAZSH32,KZSM30202311

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-62020iAZSH32,KZSM30202311

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-62020iAZSH32,KZSM30202311

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-52130iAZSH32,KZSM30202311

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-52130iAZSH32,KZSM30202311

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52020iAZSH32,KZSM30202311

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52020iAZSH32,KZSM30202311

9011908C89

main90119-08C89

9155380625

main91553-80625

91553A0620

main91553-A0620

91673A0616

main91673-A0616

14 parts on this diagram · 1 diagram in section
