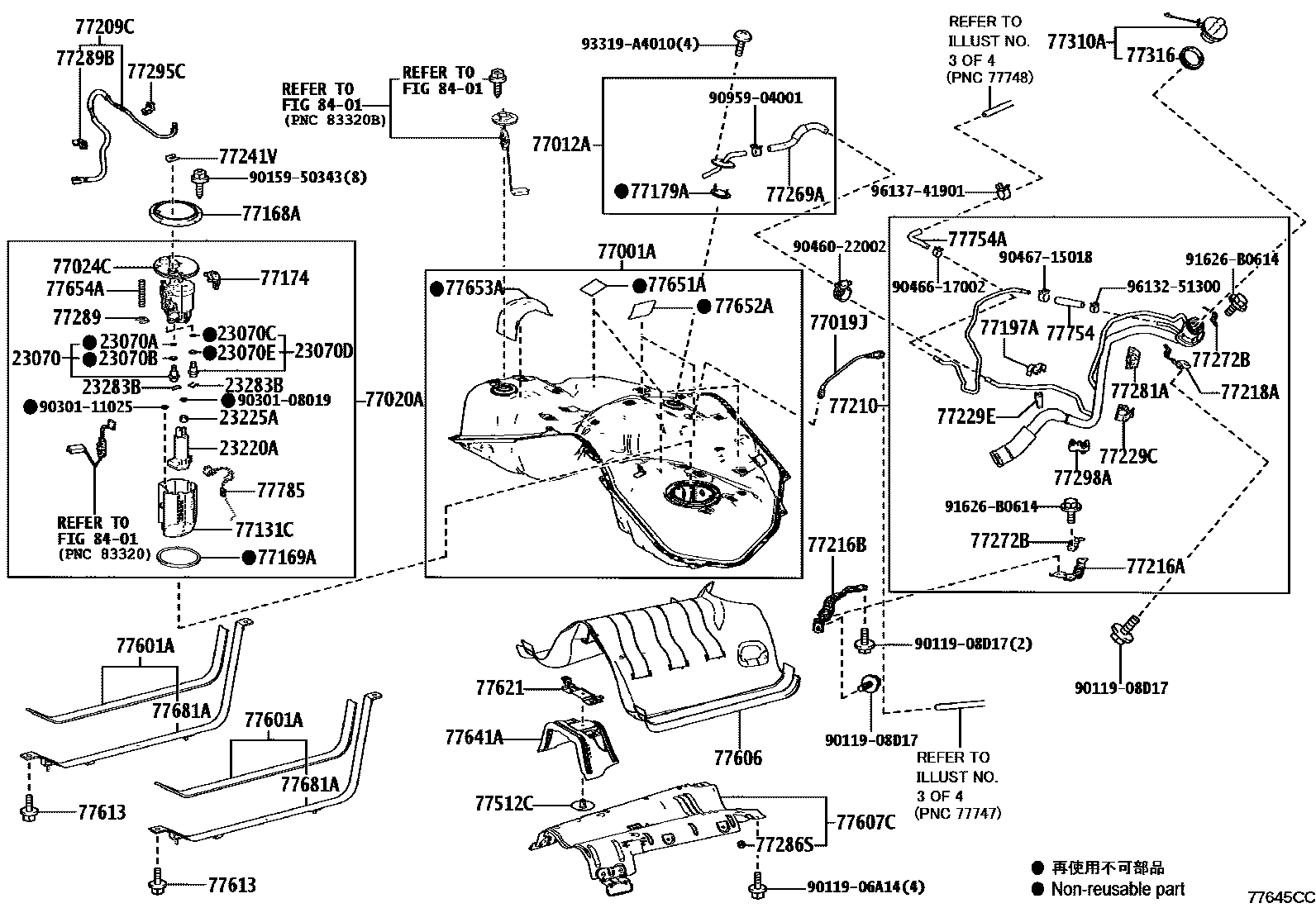

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1CHARCOAL CANISTER 0004 1FUEL LID OPENER 0005 1FUEL TANK NO.1 0006 1FUEL TANK NO.2 0007 1FUEL TANK NO.3 0008 1FUEL TUBE 0009 1HYDROGEN SUPPLY SYSTEM 0010 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31030iA25..AZSH32202311

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013iA25..AZSH32202311

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024iA25..AZSH32202311

23070CRING, O, NO.3(FOR FUEL MAIN VALVE)

main90301-04013iA25..AZSH32202311

23070DVALVE ASSY, FUEL MAIN, NO.2

main23070-36010iA25..AZSH32202311

23070ERING, O, NO.4(FOR FUEL MAIN VALVE)

main90301-15024iA25..AZSH32202311

23220APUMP ASSY, FUEL W/FILTER

main23220-25030iA25..AZSH32202311

23225ASPACER, FUEL PUMP

main23225-31010iA25..AZSH32202311

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-36010iA25..AZSH32202311

77001ATANK SUB-ASSY, FUEL

main77001-30760iAZSH32202311

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-11050iAZSH32202311

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-11010iAZSH32202311

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30520iAZSH32202311

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-30260iAZSH32202311

77131CSUB-TANK, FUEL, NO.1

main77131-11010iAZSH32202311

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iAZSH32202311

77169AGASKET, FUEL SUCTION TUBE SET

main77169-53010iAZSH32202311

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48040iAZSH32202311

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iAZSH32202311

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iAZSH32202311

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30440iAZSH32202311

77210PIPE ASSY, FUEL TANK FILLER

main77210-30300iAZSH32202311

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30070iAZSH32202311

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-30100iAZSH32202311

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-30090iAZSH32202311

77229CCLAMP, BREATHER TUBE

main77229-11120iAZSH32202311

77229ECLAMP, BREATHER TUBE

main77229-50080iAZSH32202311

77241VCLIP, TUBE JOINT

main77241-33011iAZSH32202311

77269AHOSE, FUEL TANK BREATHER

main77269-11020iAZSH32202311

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-11030iAZSH32202311

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-30170iAZSH32202311

77281ACLAMP, FUEL FILLER PIPE

main77281-30190iAZSH32202311

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iAZSH32202311

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iAZSH32202311

77289BCLAMP, FUEL TUBE, NO.3

main77289-11030iAZSH32202311

77295CGROMMET, FUEL TUBE

main77295-11010iAZSH32202311

77298ACLAMP, FUEL TUBE, NO.4

main77298-30230iAZSH32202311

77310ACAP ASSY, FUEL TANK

main77300-48020iAZSH32202311

77316GASKET, FUEL TANK CAP

main77316-75020iAZSH32202311

77512CBRACKET, FUEL TANK

main77512-35140iAZSH32202311

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-11040iAZSH32202311

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-11020iAZSH32202311

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-11010iAZSH32202311

77613BOLT, FUEL TANK BAND SET

main90119-10A05iAZSH32202311

77621BRACKET, FUEL TANK PROTECTOR

main77621-50040iAZSH32202311

77641APROTECTOR, FUEL TANK, NO.1

main77641-50040iAZSH32202311

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iAZSH32202311

77652ACUSHION, FUEL TANK, NO.2

main77651-36130iAZSH32202311

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iAZSH32202311

77654ACUSHION, FUEL TANK, NO.4

main77652-22090iAZSH32202311

77681ASEAT, FUEL TANK BAND

main77681-21020iAZSH32202311

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-11050iAZSH32202311

77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2

main77754-30100iAZSH32202311

77785HARNESS, FUEL PUMP

main77785-30050iAZSH32202311

8401

9011906A14

main90119-06A14

9011908D17

main90119-08D17

9015950343

main90159-50343

9030108019

main90301-08019

9030111025

main90301-11025

9046022002

main90460-22002

9046617002

main90466-17002

9046715018

main90467-15018

9095904001

main90959-04001

91626B0614

main91626-B0614

93319A4010

main93319-A4010

9613251300

main96132-51300

9613741901

main96137-41901

68 parts on this diagram · 10 diagrams in section
