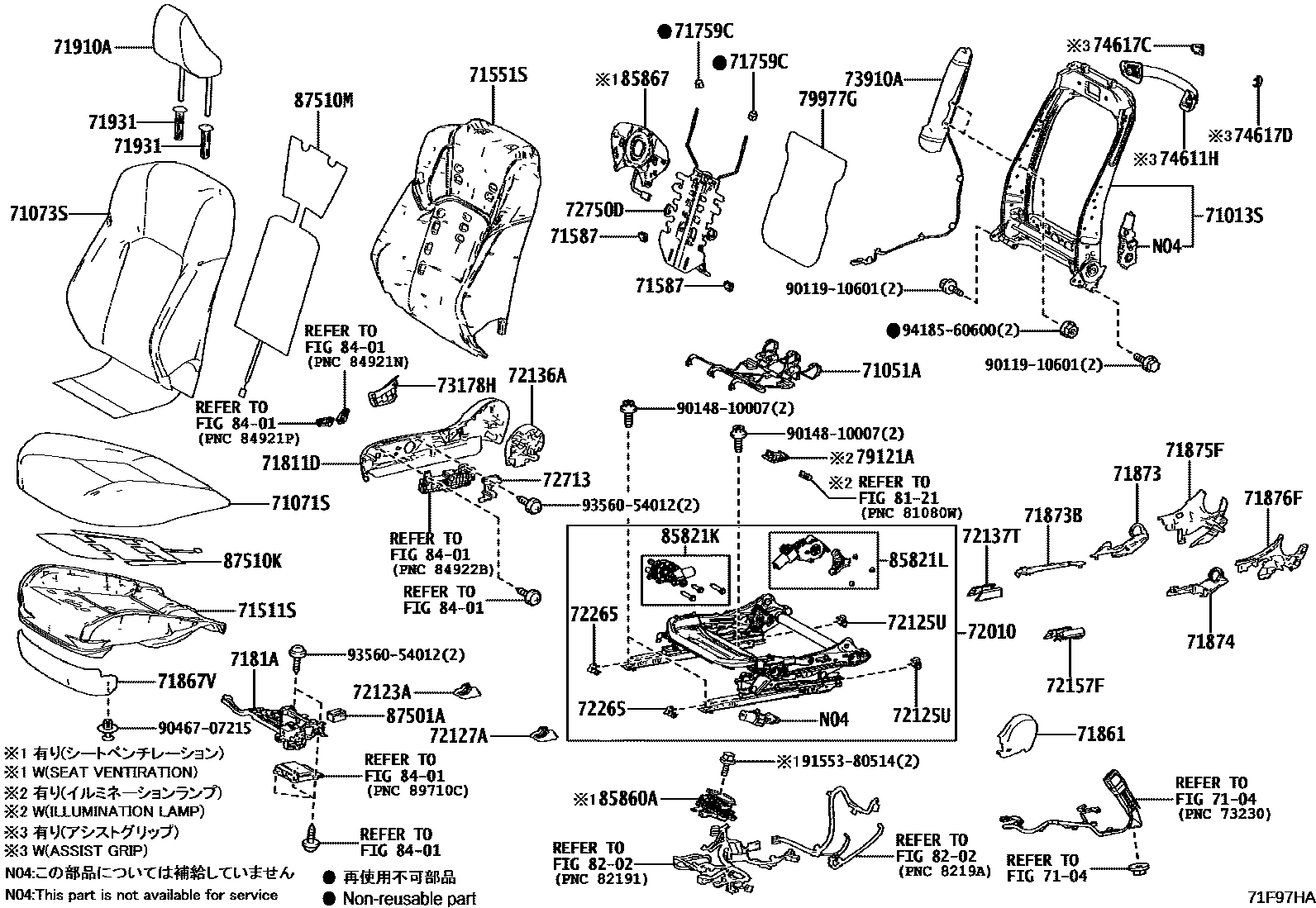

FRONT SEAT & SEAT TRACK

0001 1��������� 0002 1����������(4�������) 0003 1����������(8�������)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-62100iAZSH32..G¥32,200202311

main71013-62120iAZSH32,KZSM30..Z¥32,200202311

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-11010iAZSH32,KZSM30¥3,010202311

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30T30-C4iAZSH32..G202311

BLACK/LT.GRAY,TRIM2#

main71071-30T40-C4iAZSH32,KZSM30..Z202311

BLACK/LT.GRAY,TRIM2#

main71071-30T40-E3iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30T90-C3iAZSH32..G202311

BLACK,TRIM2#

main71073-30U00-C3iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

main71073-30U00-E3iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30C10iAZSH32..G¥9,000202311

main71511-30C20iAZSH32,KZSM30..Z¥9,000202311

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30C70iAZSH32..G¥10,000202311

main71551-30C90iAZSH32,KZSM30..Z¥9,000202311

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iAZSH32,KZSM30¥200202311

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040iAZSH32,KZSM30¥130202311

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30540-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main71811-30540-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-11010iAZSH32,KZSM30¥2,570202311

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main71861-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-30170-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main71867-30170-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-33150iAZSH32,KZSM30¥570202311

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-47090iAZSH32,KZSM30¥570202311

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-62010iAZSH32,KZSM30¥740202311

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

sub71875-47040¥1,860

main71875-47040-C1iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

sub71875-47040¥1,860

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main71875-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-30K60-C2iAZSH32,KZSM30202311

BLACK,TRIM2#

main71910-30K60-E2iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iAZSH32,KZSM30..Z202311

main71930-47050-C5iAZSH32,KZSM30..Z202311

main71931-47030-C4iAZSH32,KZSM30..Z202311

main71931-47030-C4iAZSH32,KZSM30..Z202311

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-62050iAZSH32,KZSM30¥69,200202311

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-50020-C0iAZSH32,KZSM30202311

BLACK

72125UCOVER, SEAT TRACK, UPPER REAR RH

main72125-47020iAZSH32,KZSM30¥160202311

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-50020-C0iAZSH32,KZSM30202311

BLACK

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-30140iAZSH32,KZSM30¥2,910202311

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iAZSH32,KZSM30¥430202311

72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iAZSH32,KZSM30¥460202311

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47020iAZSH32,KZSM30¥160202311

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-47010iAZSH32,KZSM30¥450202311

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33140iAZSH32..G¥20,300202311

main72750-33150iAZSH32,KZSM30..Z¥20,300202311

73178HCAP, SEAT BELT ANCHOR COVER, RH

main73178-30110-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main73178-30110-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12100iAZSH32,KZSM30¥20,000202311

74611HGRIP, ASSIST

main74607-30060-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

main74607-30060-E0iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-30090-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,40,41

main74617-30090-E1iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM40,41

74617DPLUG, ASSIST GRIP

main74618-30040-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,40,41

main74618-30040-E1iAZSH32,KZSM30..Z202311

MD.BROWN,TRIM40,41

79121ABRACKET, FRONT SEAT CUSHION, RH

main79121-60090iAZSH32,KZSM30..Z¥380202311

79977GFELT, FRONT SEATBACK, RH

main79977-33030iAZSH32,KZSM30¥1,080202311

8121

8202

8401

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-11020iAZSH32,KZSM30¥13,600202311

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-30100iAZSH32,KZSM30¥13,600202311

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

main85801-42040iAZSH32,KZSM30..Z¥15,700202311

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-30040iAZSH32,KZSM30..Z¥8,900202311

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-33010iAZSH32,KZSM30¥4,330202311

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-30610iAZSH32,KZSM30¥7,500202311

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-30350iAZSH32,KZSM30¥7,500202311

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9046707215

main90467-07215¥80

9155380514

main91553-80514¥60

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

53 parts on this diagram · 3 diagrams in section
