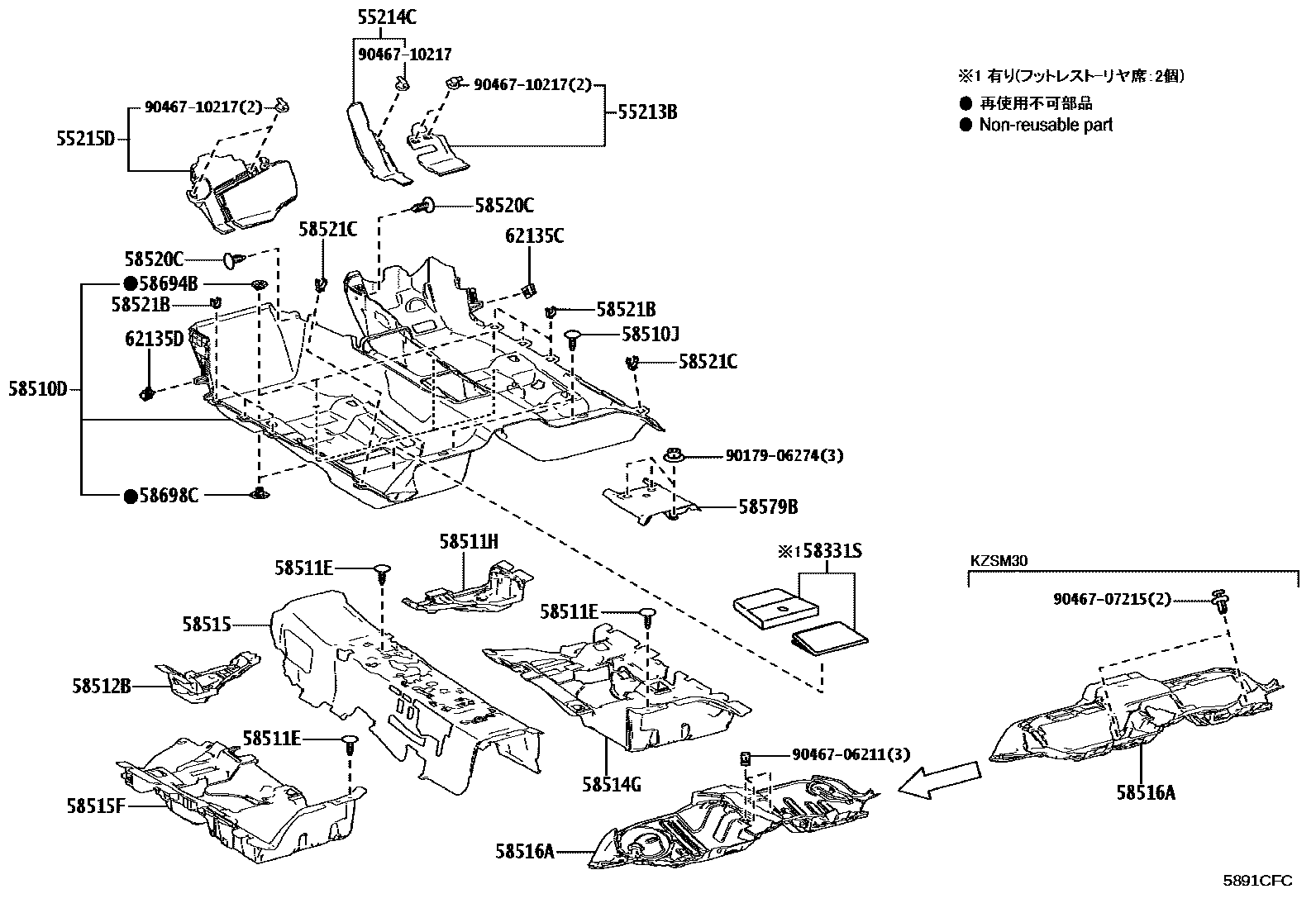

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58331SFOOTREST, REAR FLOOR, RH
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM2#
58510JCLIP (FOR FLOOR CARPET)
58511ECLIP(FOR FRONT FLOOR MAT)
58511HMAT, FLOOR, FRONT RH
58512BMAT, FLOOR, FRONT LH
58514GMAT, FLOOR, REAR RH
58515MAT, FLOOR, CENTER
58515FMAT, FLOOR, REAR LH
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58521CHOOK, FLOOR CARPET NO.2
58579BPAD, REAR FLOOR
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
62135CRETAINER, COWL SIDE CARPET
62135DRETAINER, COWL SIDE CARPET, LH
9017906274
main90179-06274
9046706211
main90467-06211
9046707215
main90467-07215
9046710217
main90467-10217
25 parts on this diagram · 1 diagram in section
