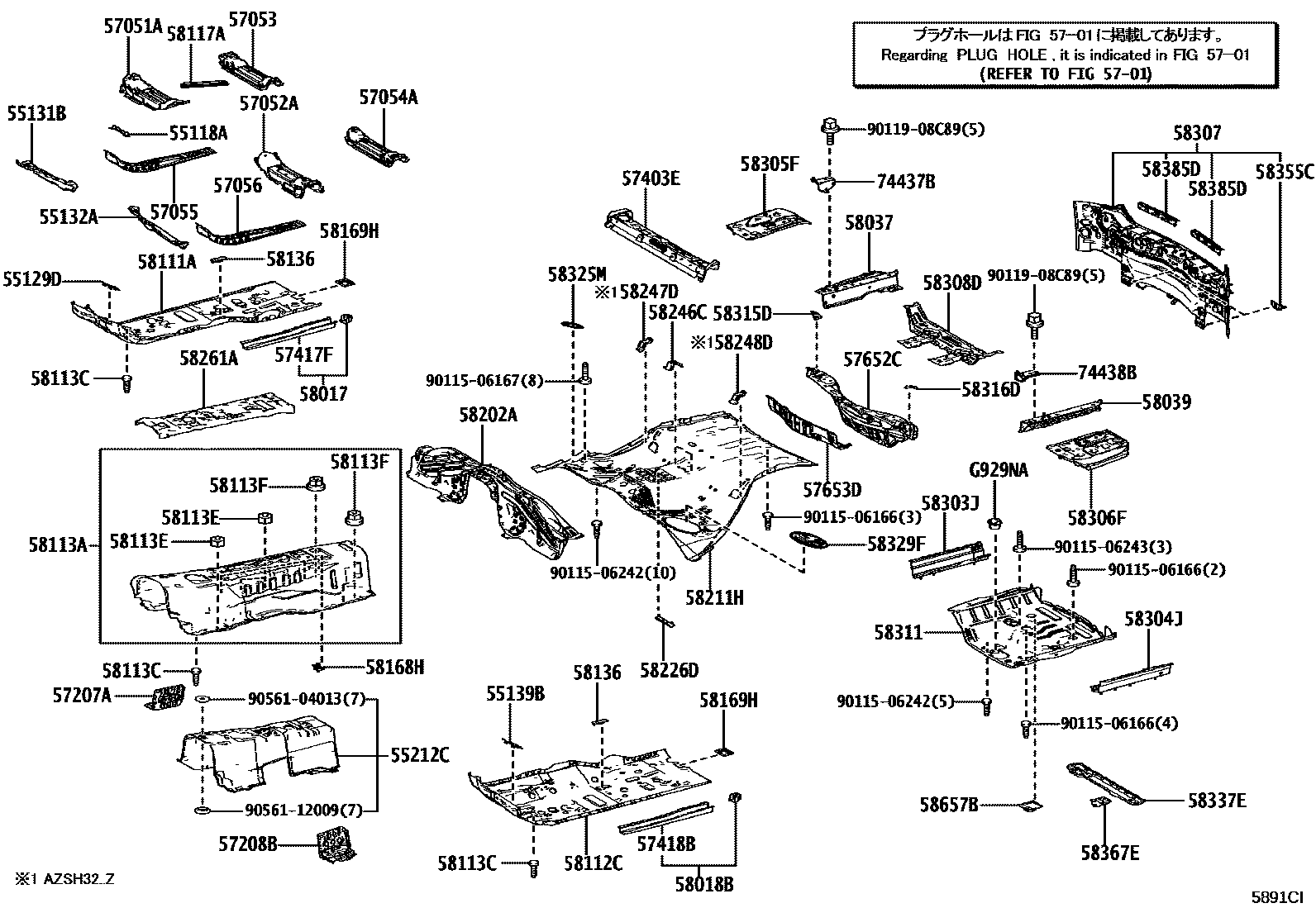

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55118AEXTENSION, DASH PANEL, RH

main55118-11011iAZSH32,KZSM30202311

55129DCOVER, DASH PANEL HOLE, RH

main55129-11010iAZSH32,KZSM30202311

55131BREINFORCEMENT, TOE BOARD, RH

main55131-11010iAZSH32,KZSM30202311

55132AREINFORCEMENT, TOE BOARD, LH

main55132-11010iAZSH32,KZSM30202311

55139BCOVER, DASH PANEL HOLE, LH

main55139-11010iAZSH32,KZSM30202311

55212CSILENCER, FRONT PANEL, LOWER

main55212-30250iAZSH32202311

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-62010iAZSH32,KZSM30202311

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-62011iAZSH32,KZSM30202311

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-62020iAZSH32,KZSM30202311

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-62020iAZSH32,KZSM30202311

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-50030iAZSH32,KZSM30202311

57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6

main57056-50030iAZSH32,KZSM30202311

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-30020iAZSH32202311

main57207-30030iKZSM30202311

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-30040iAZSH32202311

main57208-30050iKZSM30202311

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-11011iAZSH32,KZSM30202311

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-30150iAZSH32,KZSM30202311

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-30150iAZSH32,KZSM30202311

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30210iAZSH32202311

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-50050iAZSH32202311

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-30030iAZSH32202311

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58017-30030iAZSH32202311

58037REINFORCEMENT SUB-ASSY, REAR FLOOR PAN

main58037-30030iAZSH32202311

58039REINFORCEMENT SUB-ASSY, REAR FLOOR PAN, LH

main58038-30020iAZSH32202311

58111APAN, FRONT FLOOR, RH

main58111-30590iAZSH32,KZSM30202311

58112CPAN, FRONT FLOOR, LH

main58112-30290iAZSH32,KZSM30202311

58113APANEL, FRONT FLOOR, CENTER

main58113-30903iAZSH32202311

main58113-30904iKZSM30202311

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06166iKZSM30202311

58113ENUT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90174-06002iAZSH32202311

58113FNUT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90174-08010iAZSH32202311

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-30040iAZSH32,KZSM30202311

58136COVER, FRONT FLOOR HOLE

main58136-11010iAZSH32,KZSM30202311

58168HPROTECTOR, FLOOR WIRE

main58168-30100iAZSH32202311

main58168-62020iKZSM30202311

58169HPATCH, FRONT FLOOR, REAR

main58169-62020iAZSH32,KZSM30202311

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-30180iAZSH32202311

main58202-62010iKZSM30202311

58211HPAN, CENTER FLOOR

main58211-50937iAZSH32202311

main58211-62021iKZSM30202311

58226DPATCH, BRACKET CENTER MOUNTING

main58226-50010iAZSH32202311

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-50020iAZSH32,KZSM30202311

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-30060iAZSH32,KZSM30..Z202311

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-30050iAZSH32,KZSM30..Z202311

58261ACOVER, TRANSMISSION

main58261-30300iAZSH32,KZSM30202311

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-30130iAZSH32202311

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-30040iAZSH32202311

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-30270iAZSH32202311

main58305-30280iKZSM30202311

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-30260iAZSH32202311

main58306-30270iKZSM30202311

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30A30iAZSH32,KZSM30202311

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-50020iAZSH32202311

58311PAN, REAR FLOOR

main58311-30480iAZSH32202311

main58311-30490iKZSM30202311

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-50020iAZSH32,KZSM30202311

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-50010iAZSH32,KZSM30202311

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-50040iAZSH32202311

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-50030iAZSH32202311

58337EREINFORCEMENT, REAR FLOOR END, LOWER LH

main58337-30110iAZSH32202311

58355CBRACKET, REAR BUMPER ARM

main58355-53030iAZSH32,KZSM30202311

58367EBRACKET, FUEL TUBE, NO.1

main58367-47020iAZSH32202311

58385DBRACKET, REAR BUMPER COVER

main58385-33060iAZSH32,KZSM30202311

58657BPLATE, REAR FLOOR, CENTER LOWER NO.3 RH

main58657-30100iAZSH32202311

74437BBRACKET, BATTERY CARRIER, NO.5

main74437-50010iAZSH32202311

74438BBRACKET, BATTERY CARRIER, NO.6

main74438-50010iAZSH32202311

G929NAPLUG, BATTERY DRAIN

mainG929N52010iAZSH32,KZSM30202311

9011506166

main90115-06166

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011908C89

main90119-08C89

9056104013

main90561-04013

9056112009

main90561-12009

67 parts on this diagram · 2 diagrams in section
