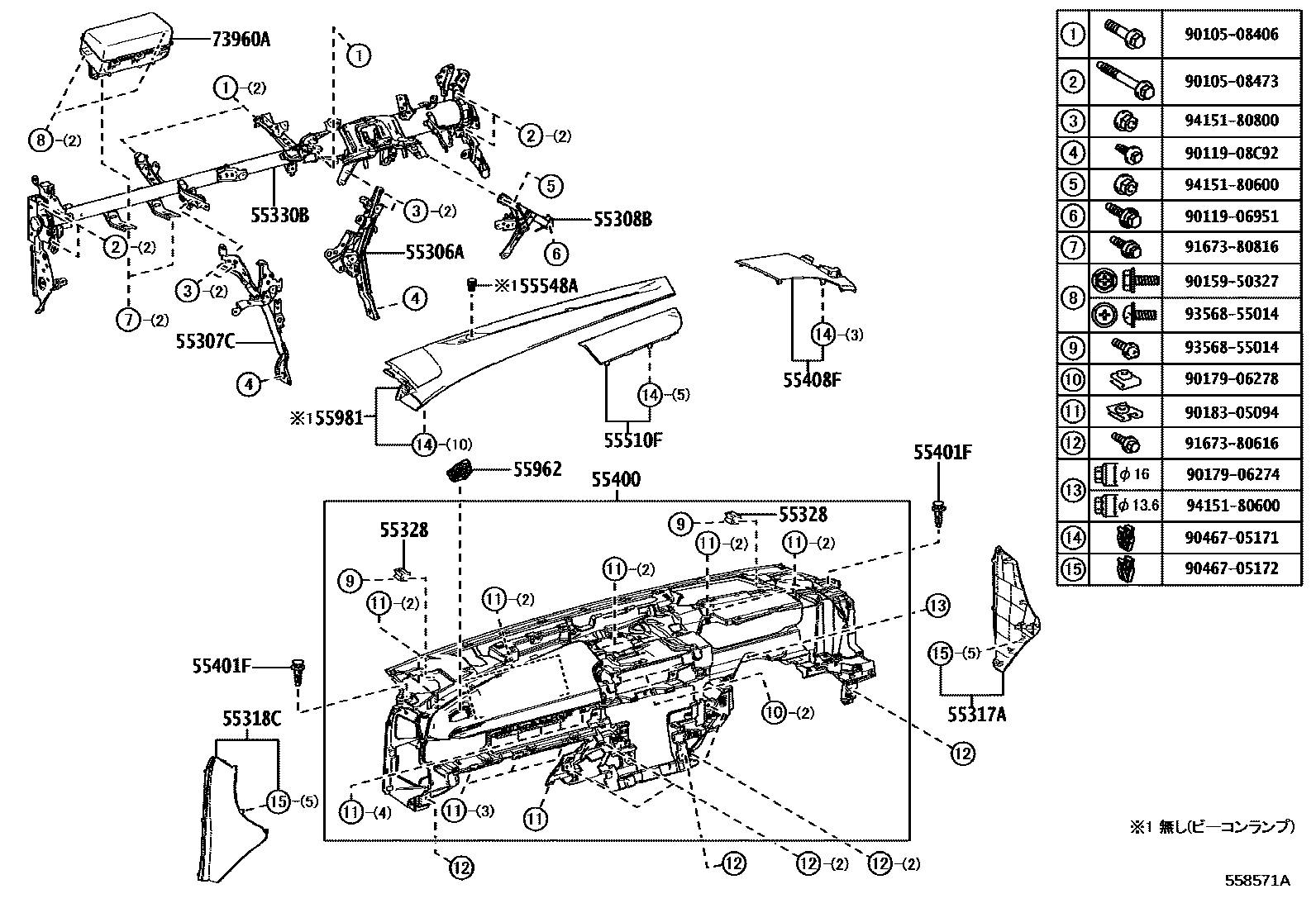

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
SOFT BLACK,TRIM2#,4#
SOFT BLACK,TRIM2#
55401FCLIP(FOR SAFETY PAD)
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55510FCOVER ASSY, SPEAKER OPENING, NO.1
55548ACOVER, INSTRUMENT PANEL HOLE
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM2#,4#
BLACK,TRIM2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9010508406
main90105-08406
9010508473
main90105-08473
9011906951
main90119-06951
9011908C92
main90119-08C92
9015950327
main90159-50327
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
30 parts on this diagram · 4 diagrams in section
