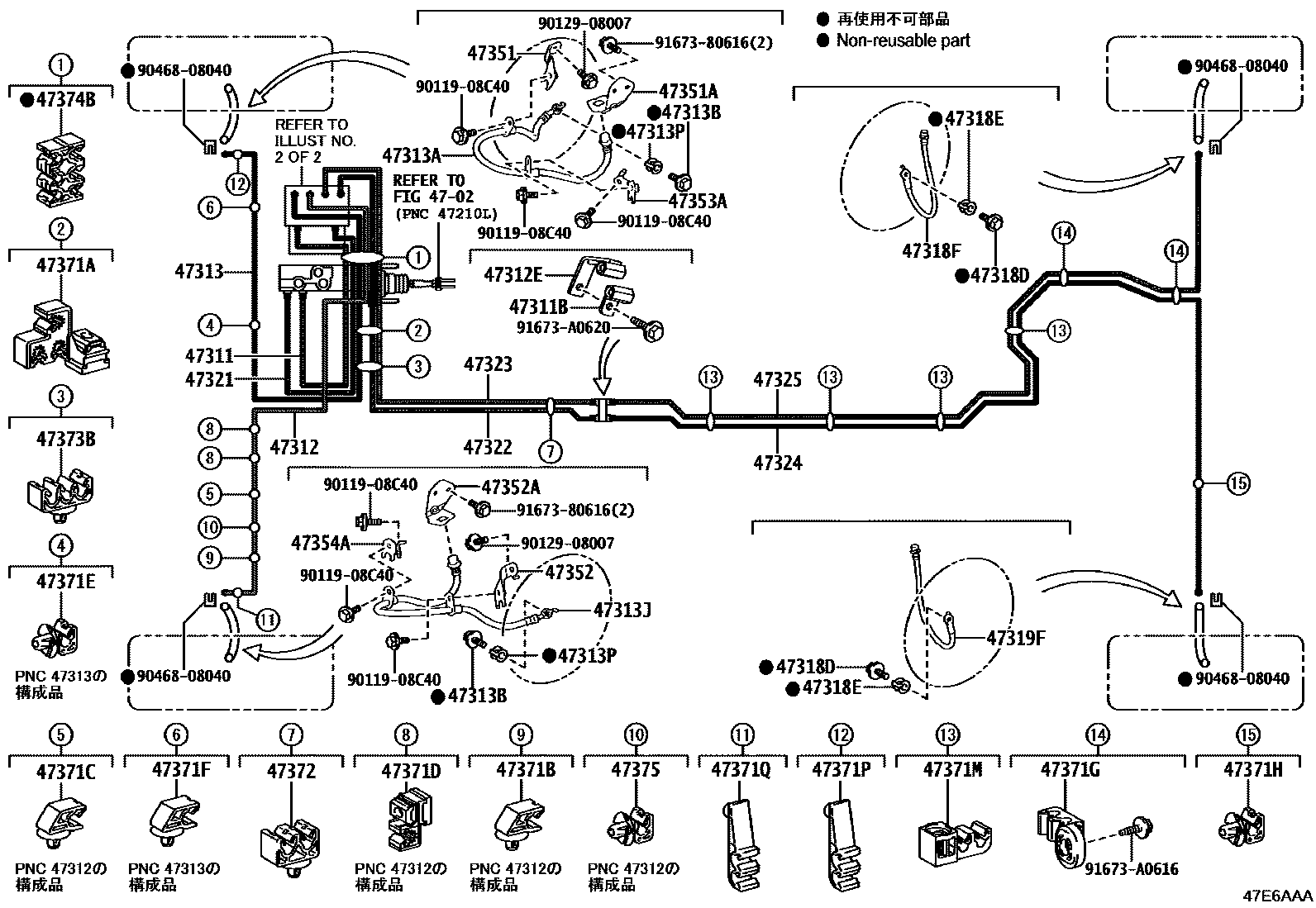

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-30810iAZSH32202311

main47311-62010iKZSM30202311

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iAZSH32,KZSM30202311

47312TUBE, FRONT BRAKE, NO.2

main47312-30B10iAZSH32202311

main47312-62010iKZSM30202311

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iAZSH32,KZSM30202311

47313TUBE, FRONT BRAKE, NO.3

main47313-30B60iAZSH32202311

main47313-62010iKZSM30202311

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H60iAZSH32202311

main90947-02J63iKZSM30202311

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAZSH32,KZSM30202311

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H61iAZSH32202311

main90947-02J64iKZSM30202311

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAZSH32,KZSM30202311-202407

main47389-50021iAZSH32,KZSM30202408

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAZSH32,KZSM30202311

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAZSH32,KZSM30202311-202407

main47389-50021iAZSH32,KZSM30202408

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H68iAZSH32,KZSM30202311

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H68iAZSH32,KZSM30202311

47321TUBE, REAR BRAKE, NO.1

main47321-62020iAZSH32,KZSM30202311

47322TUBE, REAR BRAKE, NO.2

main47322-30710iAZSH32202311

main47322-62020iKZSM30202311

47323TUBE, REAR BRAKE, NO.3

main47323-30530iAZSH32202311

main47323-62020iKZSM30202311

47324TUBE, REAR BRAKE, NO.4

main47324-30400iAZSH32202311

main47324-30410iKZSM30202311

47325TUBE, REAR BRAKE, NO.5

main47325-30190iAZSH32202311

main47325-30200iKZSM30202311

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-11040iAZSH32202311

main47351-50030iKZSM30202311

47351ABRACKET, FLEXIBLE HOSE, FRONT RH NO.1

main47351-50040iKZSM30202311

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-11020iAZSH32202311

main47352-50030iKZSM30202311

47352ABRACKET, FLEXIBLE HOSE, FRONT LH NO.1

main47352-50040iKZSM30202311

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47351-50050iKZSM30202311

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47352-50050iKZSM30202311

47371ACLAMP, BRAKE TUBE, NO.1

main47371-62040iAZSH32,KZSM30202311

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D46iAZSH32,KZSM30202311

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E45iAZSH32,KZSM30202311

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E72iAZSH32,KZSM30202311

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D17iAZSH32,KZSM30202311

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D46iAZSH32,KZSM30202311

47371GCLAMP, BRAKE TUBE, NO.11

main47371-62010iKZSM30202311

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D17iAZSH32,KZSM30202311

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01E74iKZSM30202311

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E41iAZSH32202311

47371QCLAMP, BRAKE TUBE, NO.15

main90949-01E41iAZSH32202311

47372CLAMP, BRAKE TUBE, NO.2

main90469-07020iAZSH32,KZSM30202311

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D41iAZSH32,KZSM30202311

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E56iAZSH32,KZSM30202311

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D17iAZSH32,KZSM30202311

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

9167380616

main91673-80616

91673A0616

main91673-A0616

91673A0620

main91673-A0620
