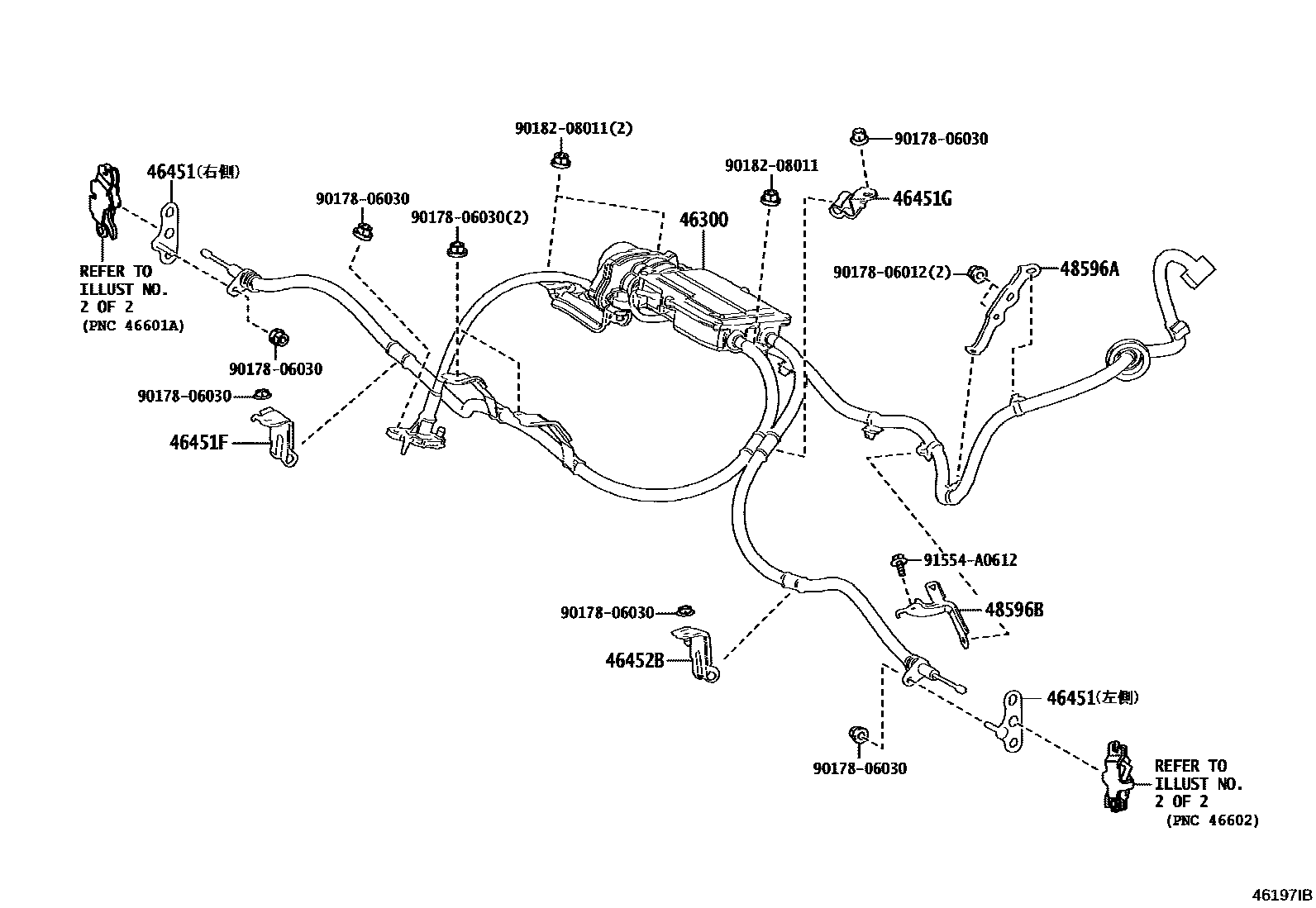

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-11011iAZSH32202311

main46300-62010iKZSM30202311

46451BRACKET, CABLE SUPPORT

main46451-30270iAZSH32,KZSM30202311

main46451-30280iAZSH32,KZSM30202311

46451FBRACKET, CABLE SUPPORT

main46451-11060iAZSH32202311

main46451-11070iKZSM30202311

46451GBRACKET, CABLE SUPPORT

main46451-11030iAZSH32202311

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-62010iKZSM30202311

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-11040iKZSM30202311

main46451-11050iAZSH32202311

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iAZSH32,KZSM30202311

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-11010iAZSH32202311

main48596-62010iKZSM30202311

9017806012

main90178-06012

9017806030

main90178-06030

9018208011

main90182-08011

91554A0612

main91554-A0612

12 parts on this diagram · 3 diagrams in section
