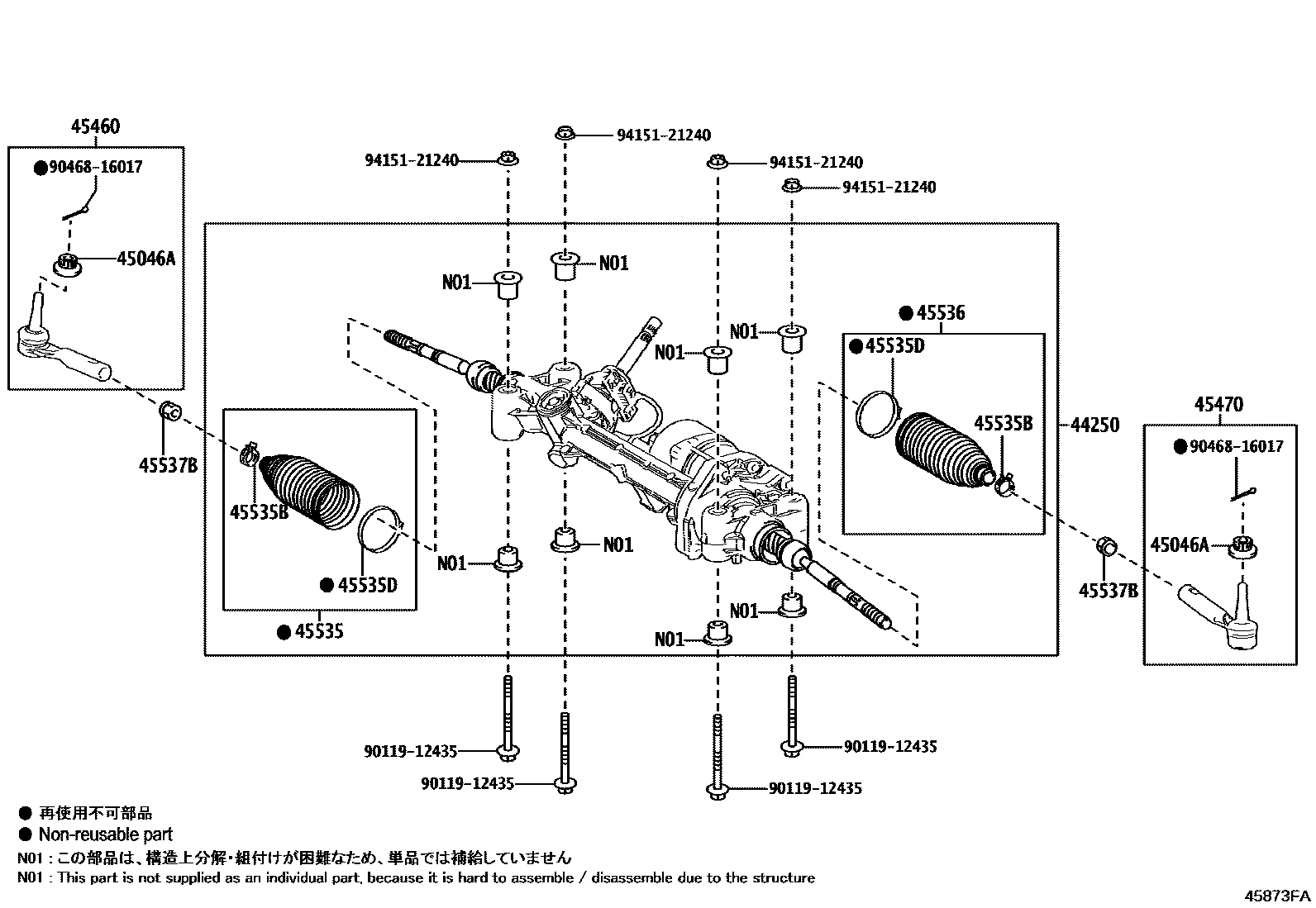

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30360iAZSH32202311

main44250-30380iKZSM30202311

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iAZSH32,KZSM30202311

45460ROD ASSY, TIE, RH

main45460-19255iAZSH32202311

main45460-59125iKZSM30202311

45470ROD ASSY, TIE, LH

main45470-19085iAZSH32202311

main45470-59145iKZSM30202311

45535BOOT, STEERING RACK, NO.1

main45535-19005iAZSH32,KZSM30202311

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAZSH32,KZSM30202311

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-02070iAZSH32,KZSM30202311

45536BOOT, STEERING RACK, NO.2

main45535-19005iAZSH32,KZSM30202311

45537BNUT, RACK END LOCK

main90178-16001iAZSH32,KZSM30202311

9011912435

main90119-12435

9046816017

main90468-16017

9415121240

main94151-21240

12 parts on this diagram · 2 diagrams in section
