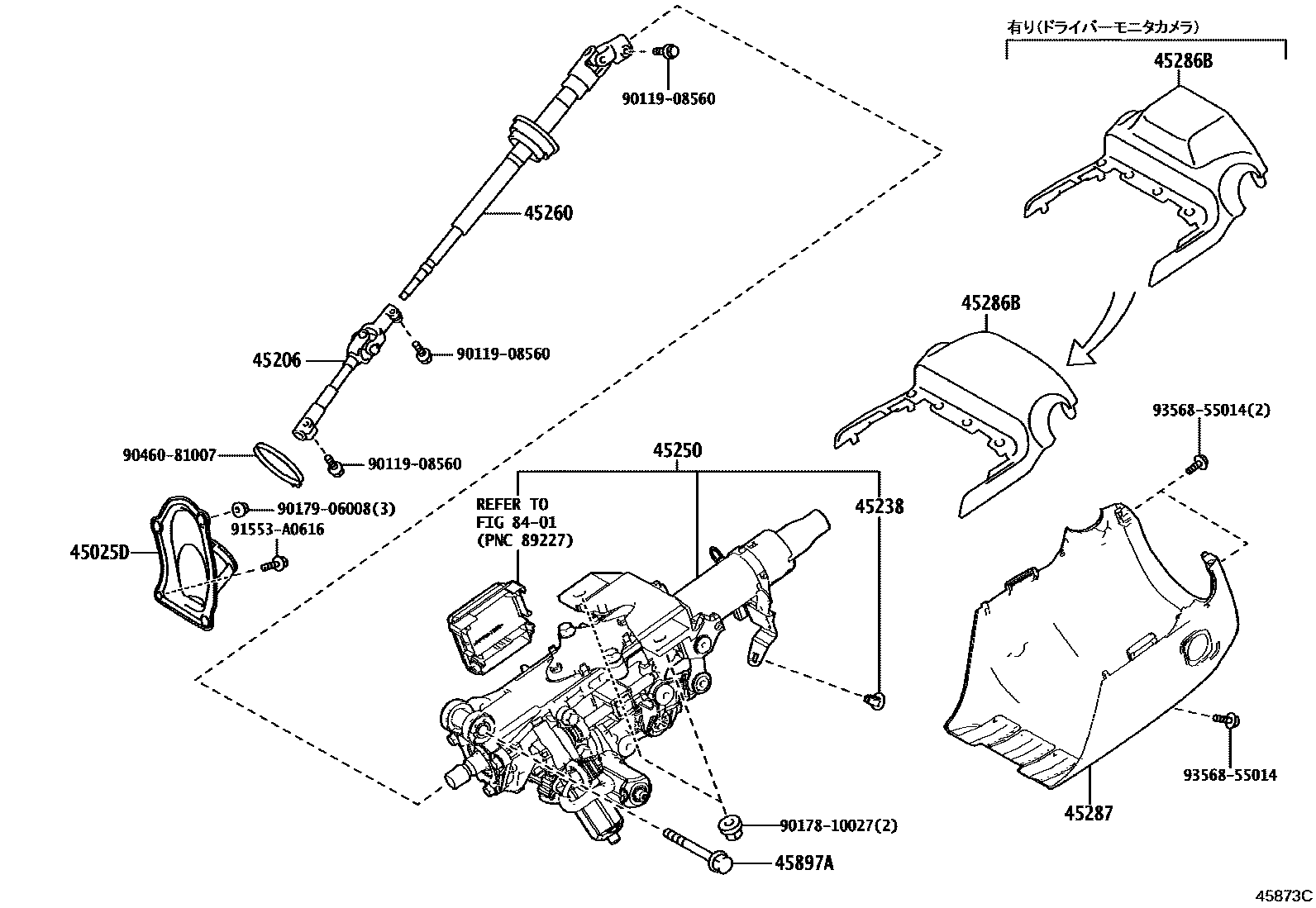

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-50140iAZSH32202311

main45025-50160iKZSM30202311

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-50071iAZSH32202311

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAZSH32,KZSM30202311

45250COLUMN ASSY, STEERING

main45250-46050iAZSH32,KZSM30202311

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30271iAZSH32202311

main45260-50120iKZSM30202311

45286BCOVER, STEERING COLUMN, UPR

main45286-30A70-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main45286-30A80-C0iAZSH32..G202311

BLACK,TRIM2#

main45286-30A80-C0iAZSH32..G202311

45287COVER, STEERING COLUMN, LWR

main45024-30130-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main45024-30130-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAZSH32,KZSM30202311

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
