MANIFOLD

12611BCOVER, ENGINE, NO.1

main12613-25030iA25..AZSH32202311

12612COVER, ENGINE, NO.2

main12614-25010iA25..AZSH32202311

1702

1708

17111MANIFOLD, INTAKE

main17120-25040iA25..AZSH32202311

17141MANIFOLD, EXHAUST

main17141-25810iA25..AZSH32202311

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iA25..AZSH32202311

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-25020iA25..AZSH32202311

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020iA25..AZSH32202311

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010iA25..AZSH32202311

17570ABRACKET ASSY, EXHAUST PIPE SUPPORT

main17570-25030iA25..AZSH32202311

2211

2501

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-25030iA25..AZSH32202311

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-25030iA25..AZSH32202311

8404

9011906A41

main90119-06A41

9011910668

main90119-10668

9017708003

main90177-08003

9046708155

main90467-08155

9167180616

main91671-80616

9167180835

main91671-80835

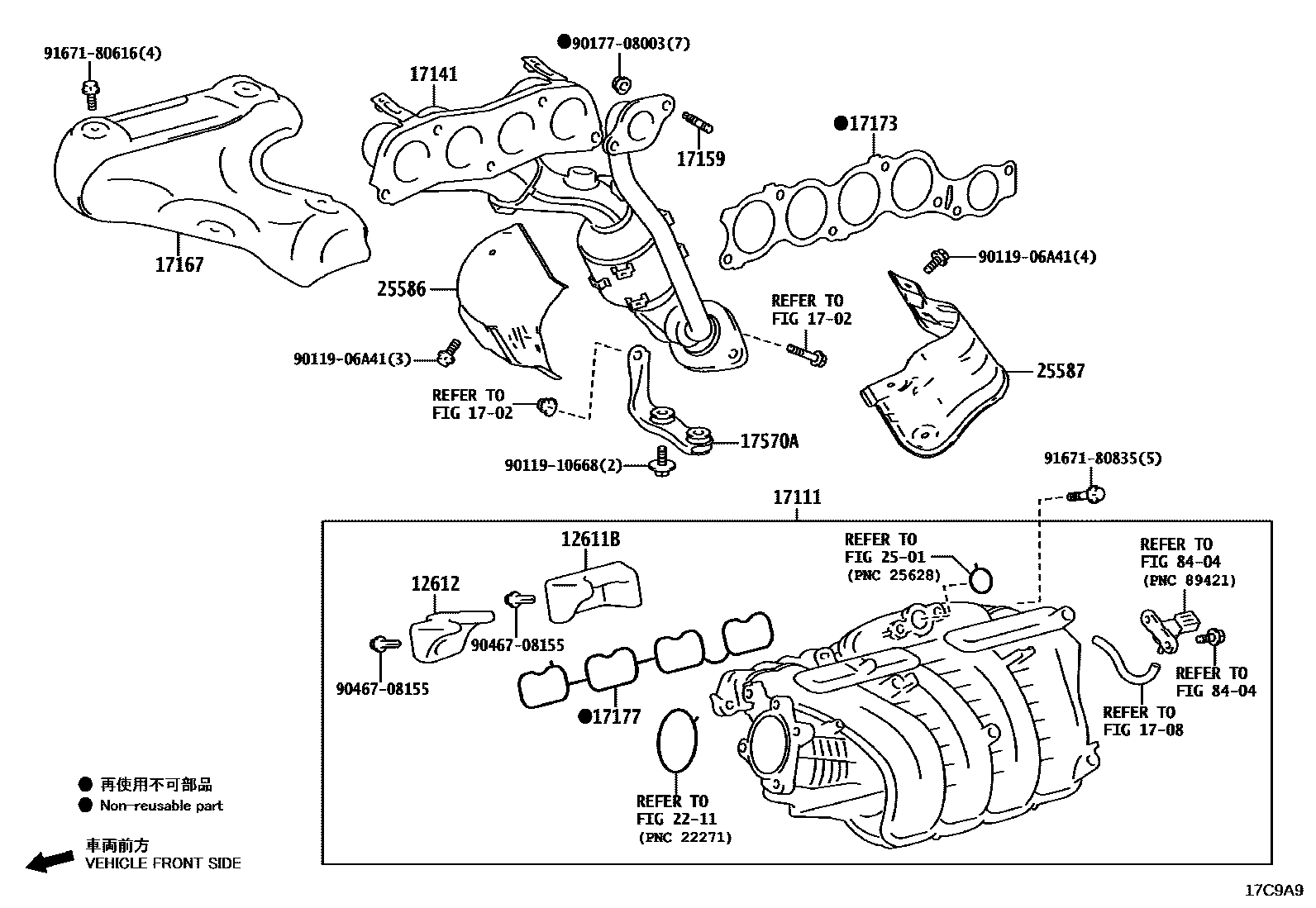

22 parts on this diagram · 1 diagram in section
