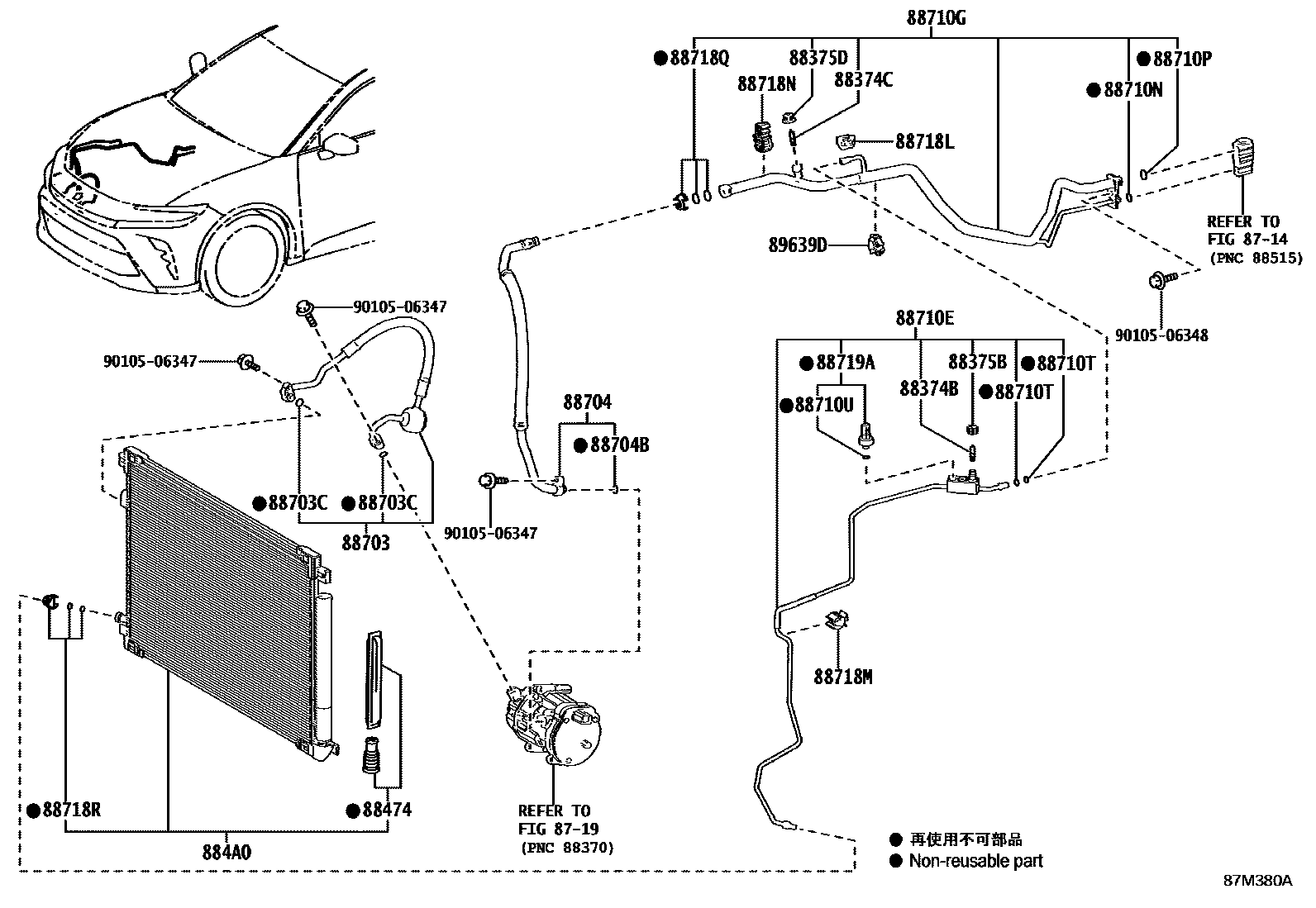

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
88703CRING, O(FOR DISCHARGE HOSE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710URING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88719PIPE, COOLER REFRIGERANT SUCTION, NO.3
88719ASENSOR, AIR CONDITIONER PRESSURE
89639DCLAMP, AIRCONDITIONER TUBE
9010506347
9010506348
28 parts on this diagram · 4 diagrams in section
