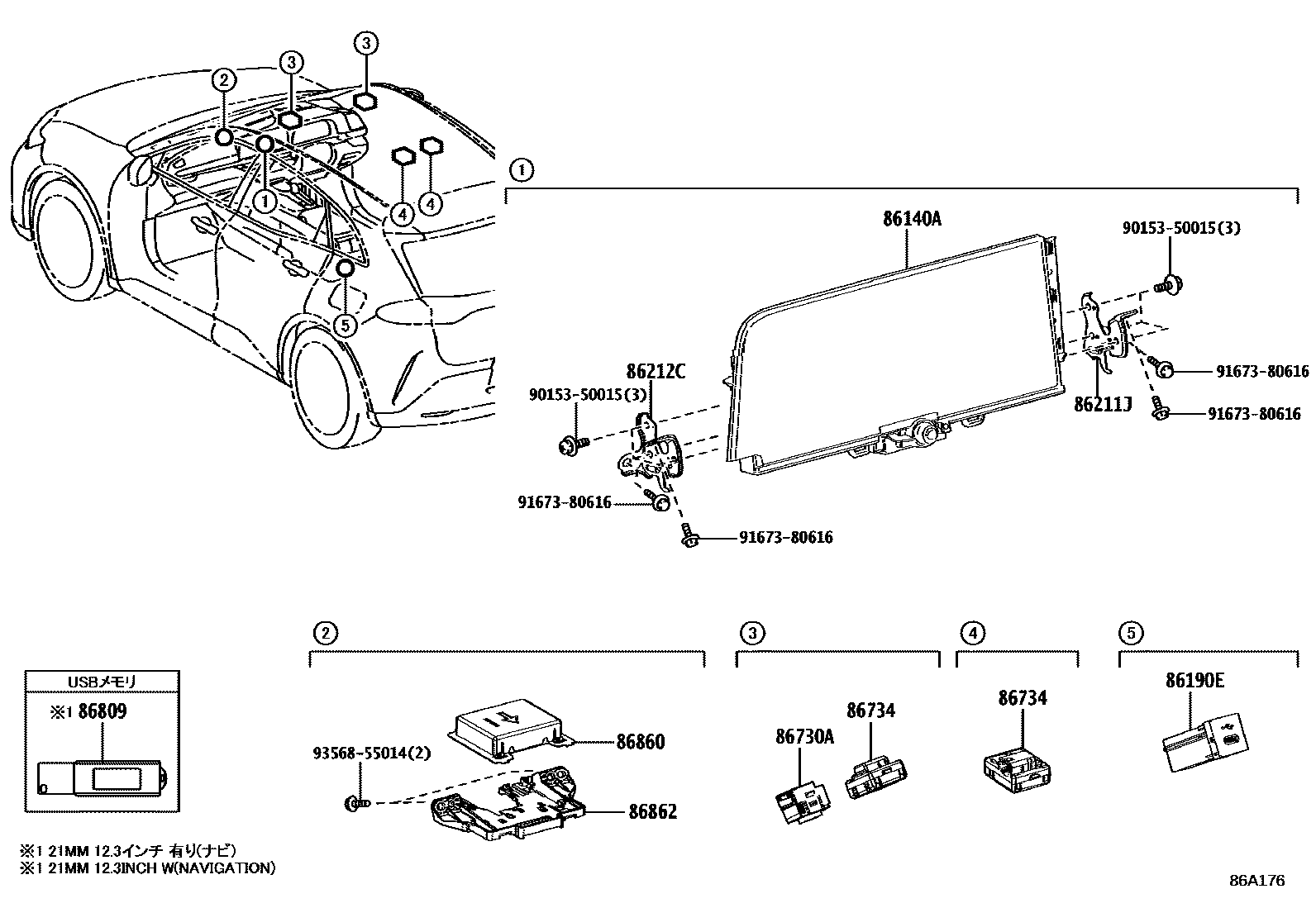

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-30100iAZSH36202308-202309

main86140-30101iAZSH3#202309-202402

main86140-30102iAZSH3#202403-202407

main86140-30103iAZSH3#202408-202409

main86140-30104iAZSH36..G202412

main86100-30610iAZSH36..Z202308-202311

main86100-30611iAZSH3#..RS,Z202311-202402

main86100-30612iAZSH3#..RS,Z202403-202407

main86100-30613iAZSH3#..RS,Z202408-202411

main86100-30614iAZSH3#..RS,Z202412-202507

86190EADAPTER ASSY, STEREO JACK

main86190-12080iAZSH3#202308

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-12470iAZSH3#202308

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-12460iAZSH3#202308

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iAZSH3#202308

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030×4iAZSH3#202308

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011iAZSH3#..RS,Z202308-202403

sub86809-78012

main86809-78013iAZSH3#..RS,Z202404-202410

main86809-78014iAZSH3#..RS,Z202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-52030iAZSH3#202308

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAZSH3#202308

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
