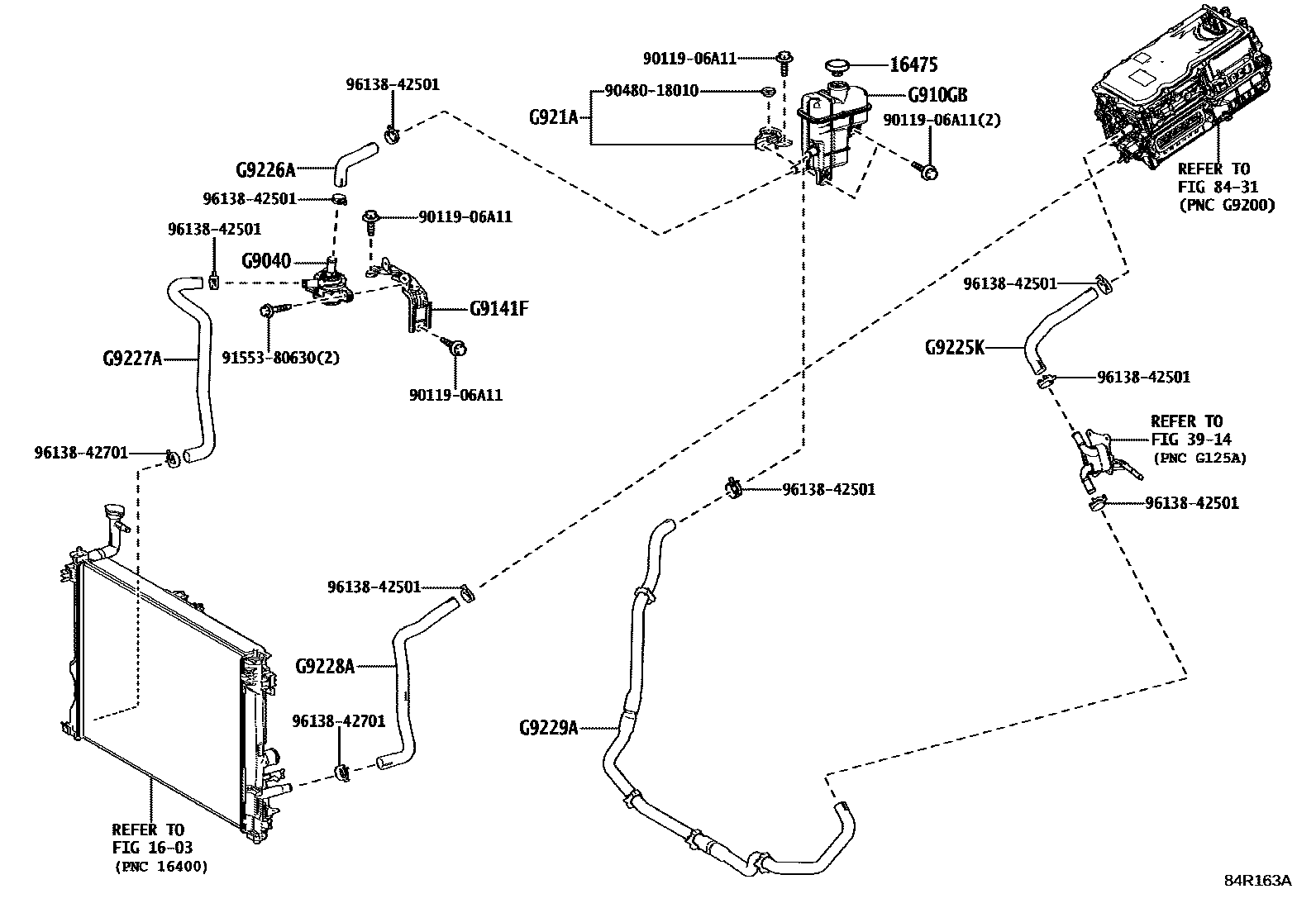

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iA25..AZSH3#¥1,200202308

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048050iAZSH3#202308

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH3#202308

G9141FBRACKET, HV WATER PUMP

mainG914178010iAZSH36202308

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH3#202308

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAZSH36202308

mainG922542020iAZSH37202312

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642020iAZSH3#202308

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730050iAZSH36202308

mainG922730070iAZSH37202312

G9228AHOSE, INVERTER COOLING, NO.4

mainG922830060iAZSH36202308

mainG922830080iAZSH37202312

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930070iAZSH36202308

mainG922930080iAZSH37202312

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

18 parts on this diagram · 2 diagrams in section
