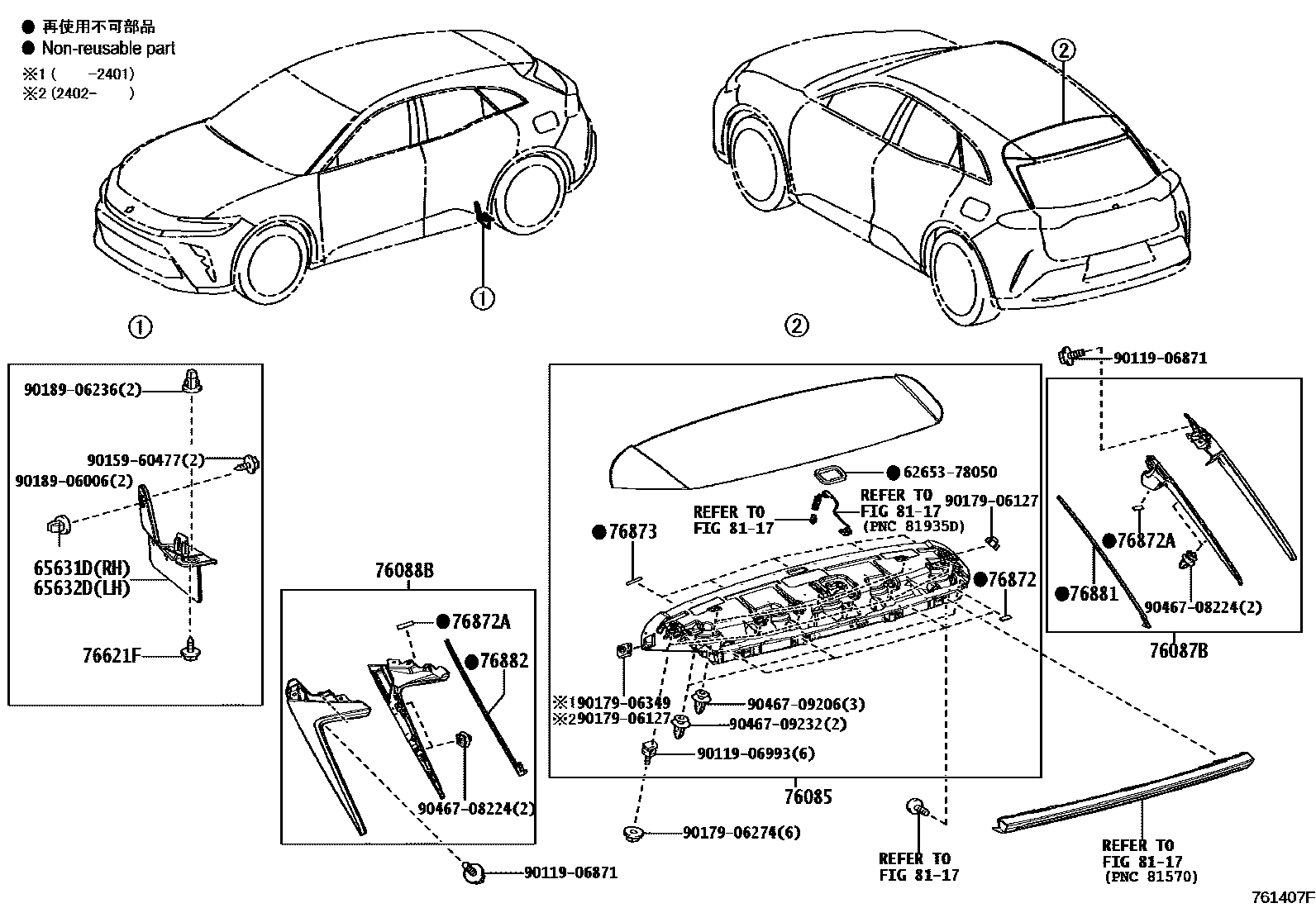

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
PRECIOUS WHITE PEARL,090 ,M26
ASH,1M2 ,M29
GRAY METALLIC MATT,1M1
BLACK,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,M24 ,M25 ,M26 ,M27 ,M29
EMOTIONAL RED 3,3U9 ,M24
PRECIOUS BRONZE,4Y6 ,M27
MUSTARD,5C5 ,M25
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76621FSCREW, NO.1
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
8117
6265378050GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78050
9011906871
main90119-06871
9011906993
main90119-06993
9015960477
main90159-60477
9017906127
main90179-06127
9017906274
main90179-06274
9017906349
main90179-06349
9018906006
main90189-06006
9018906236
main90189-06236
9046708224
main90467-08224
9046709206
main90467-09206
9046709232
main90467-09232
24 parts on this diagram · 1 diagram in section
