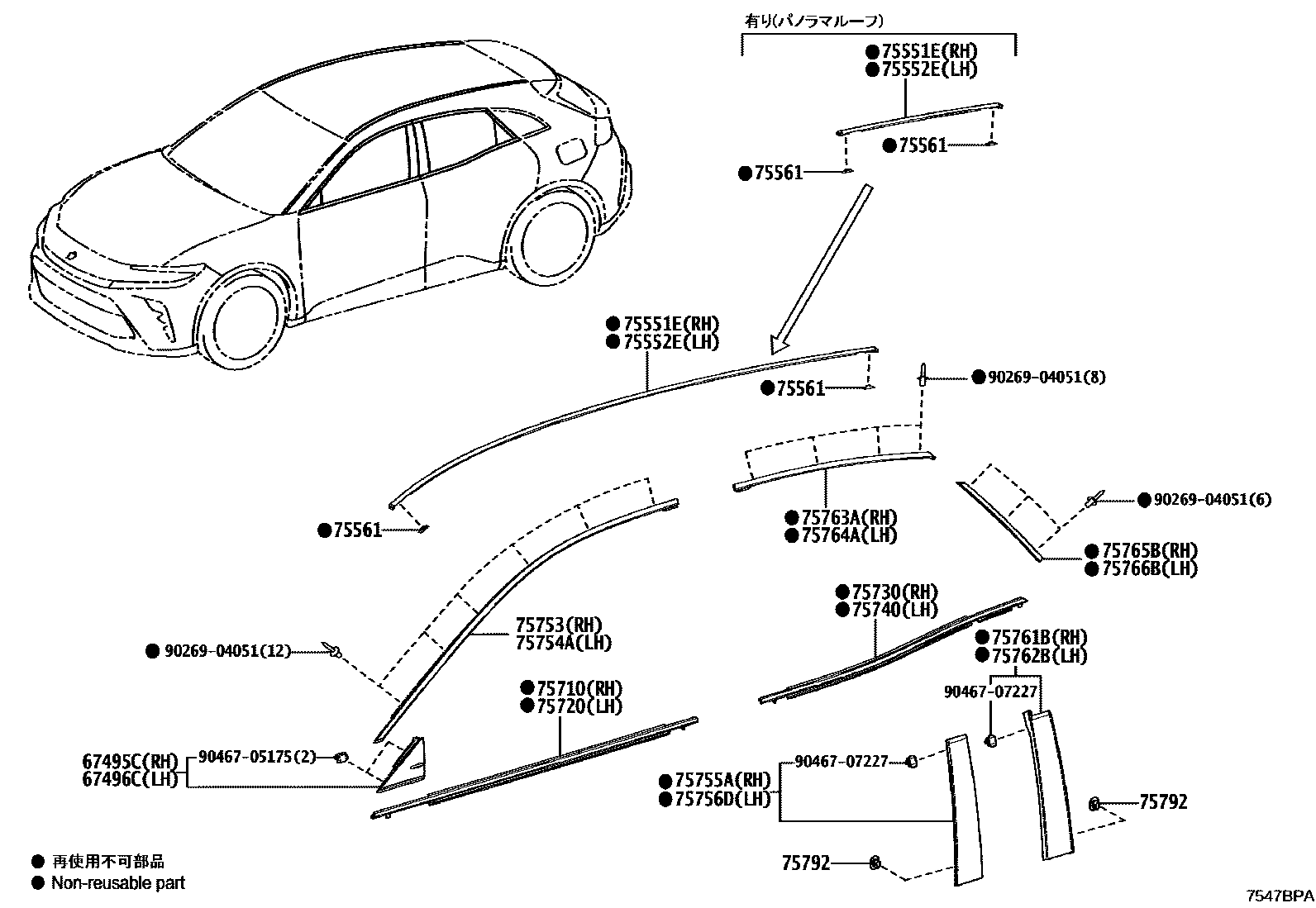

SIDE MOULDING

0001 1 0002 1

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30141iAZSH3#202308

sub67401-30290

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30141iAZSH3#202308

sub67402-30290

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30590iAZSH3#202308

main75551-30600iAZSH3#..RS,Z202308

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30590iAZSH3#202308

main75552-30600iAZSH3#..RS,Z202308

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52050×4iAZSH3#202308

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30570iAZSH3#202308

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30570iAZSH3#202308

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30540iAZSH3#202308

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30540iAZSH3#202308

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30160supersedes 75753-30150iAZSH3#..RS,Z202308

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30160supersedes 75754-30150iAZSH3#..RS,Z202308

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-30200iAZSH3#202308

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-30200iAZSH3#202308

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-30180iAZSH3#202308

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-30180iAZSH3#202308

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30240supersedes 75763-30230iAZSH3#..RS,Z202308

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30240supersedes 75764-30230iAZSH3#..RS,Z202308

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-30190iAZSH3#202308

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-30190iAZSH3#202308

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iAZSH3#202308

9026904051

main90269-04051

9046705175

main90467-05175

9046707227

main90467-07227

23 parts on this diagram · 2 diagrams in section
