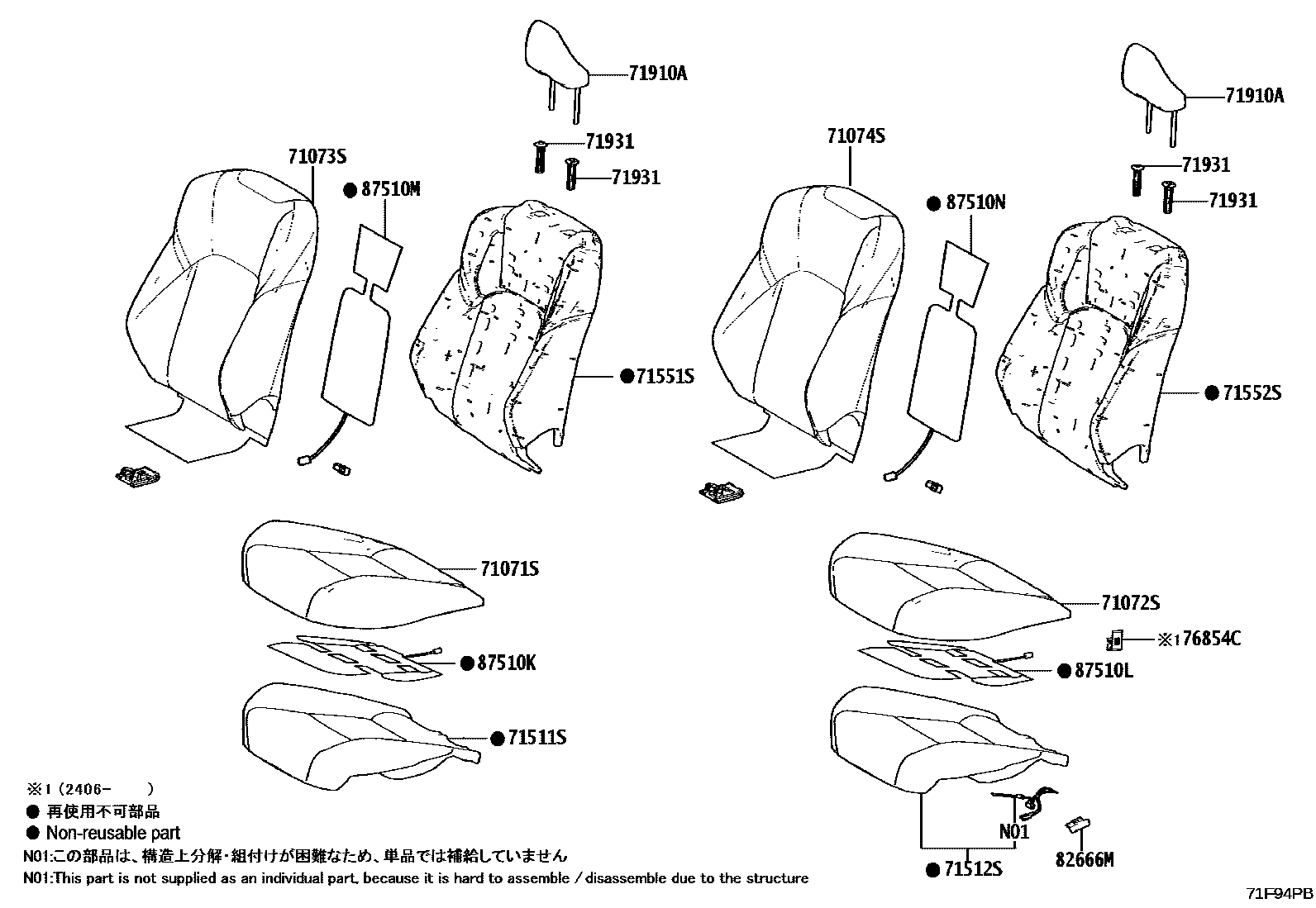

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK/LT.GRAY NO.831,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71910AHEADREST ASSY, FRONT SEAT
BLACK/LT.GRAY,TRIM2#
SAND BROWN,TRIM4#
76854CRETAINER, FRONT SEAT CUSHION COVER
82666MHOLDER, CONNECTOR
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510MHEATER ASSY, FRONT SEATBACK, RH
87510NHEATER ASSY, FRONT SEATBACK, LH
16 parts on this diagram · 7 diagrams in section
