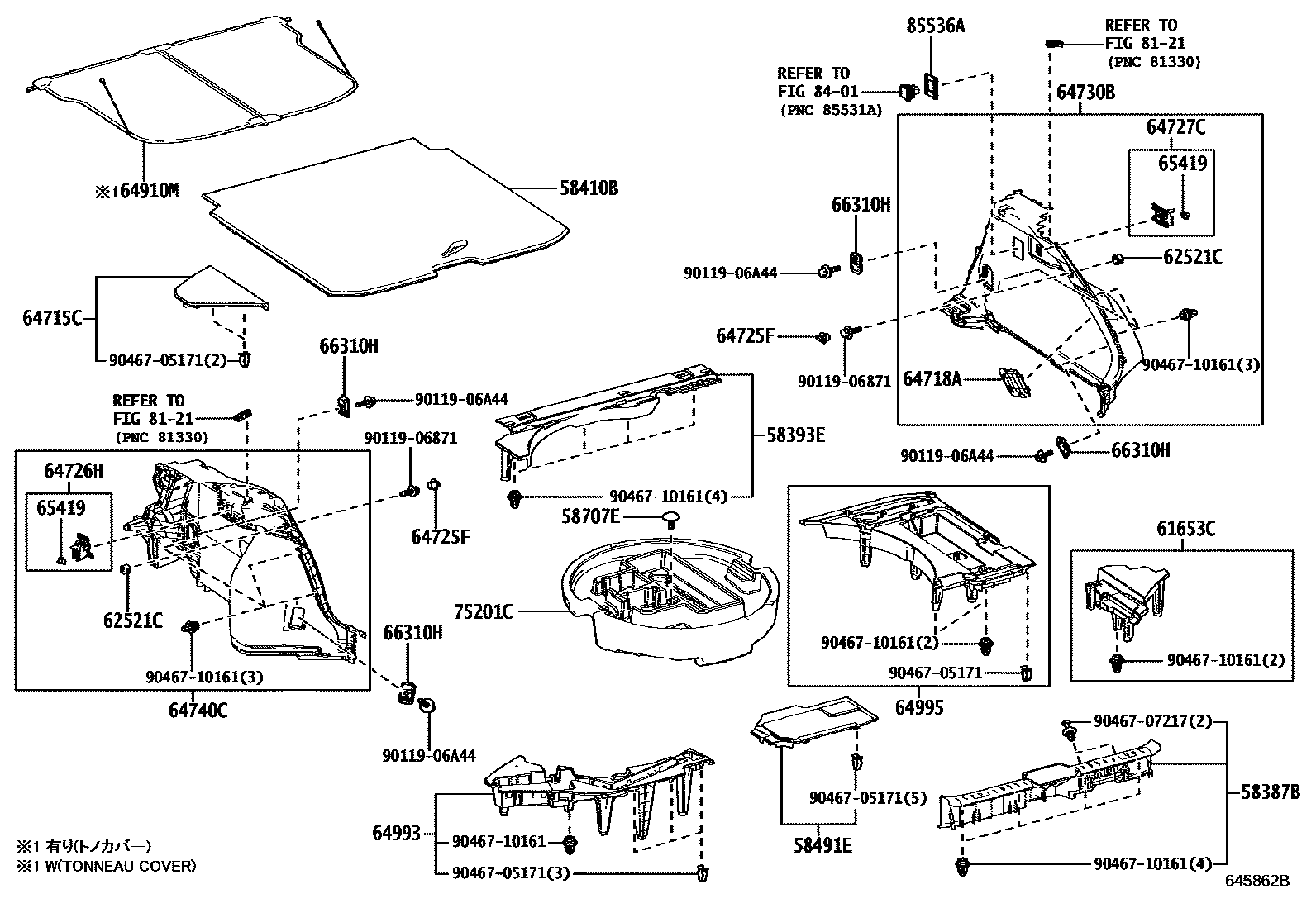

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM2#,4#
58410BBOARD ASSY, DECK
BLACK/SLIVER/GRAY,TRIM2#,4#
58491EPLATE, BATTERY SERVICE COVER
58707EPLUG SET, HOLE
61653CBRACKET, DECK SIDE TRIM, RH
62521CCOVER, QUARTER TRIM RH
BLACK,TRIM2#,4#
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#,4#
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#,4#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#,4#
64726HHOOK, DECK SIDE TRIM, NO.2
BLACK,TRIM2#,4#
64727CHOOK, LUGGAGE COMPARTMENT TRIM, NO.3
BLACK,TRIM2#,4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#,4#
64910MCOVER ASSY, TONNEAU
BLACK,TRIM2#,4#
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
65419CLIP, CORNER PROTECTOR
66310HHOOK ASSY, ROPE
75201CBOX SUB-ASSY, TOOL, NO.1
8121
8401
85536ABEZEL, POWER OUTLET SOCKET
BLACK,TRIM2#,4#
9011906871
9011906A44
9046705171
9046707217
9046710161
28 parts on this diagram · 4 diagrams in section
