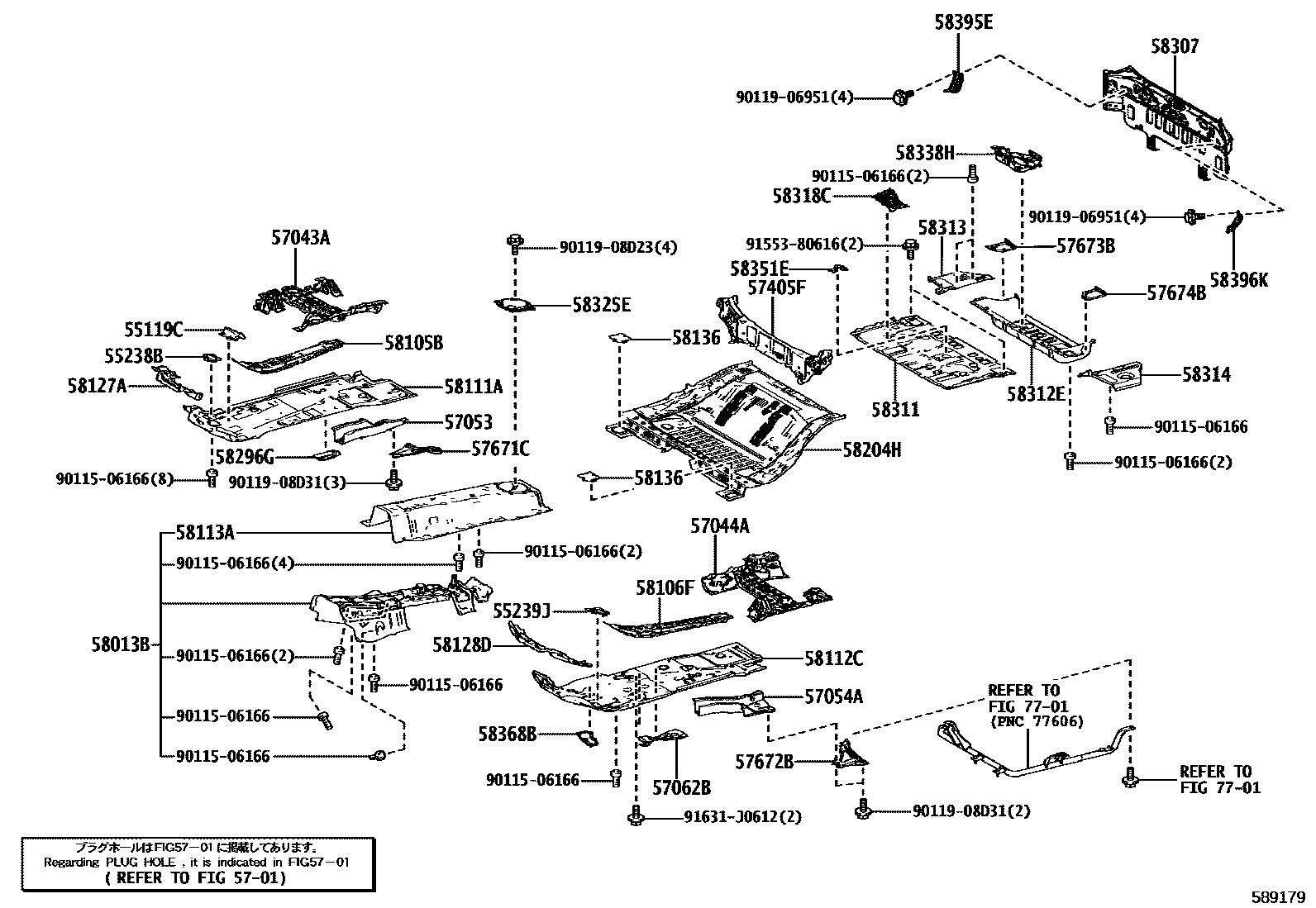

FLOOR PAN & LOWER BACK PANEL
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH
57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH
57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58204HPAN SUB-ASSY, CENTER FLOOR, REAR
58296GBRACKET, FRONT FLOOR BRACE MOUNTING
58307PANEL SUB-ASSY, BODY LOWER BACK
58312EPANEL, REAR FLOOR, REAR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58318CBRACKET, REAR FLOOR CROSSMEMBER
58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH
58351EBRACKET, SPARE WHEEL CLAMP
58395EGUSSET, BACK DOOR OPENING, LOWER RH
58396KGUSSET, BACK DOOR OPENING, LOWER LH
7701
9011506166
9011906951
9011908D23
9011908D31
9155380616
91631J0612
44 parts on this diagram · 2 diagrams in section
