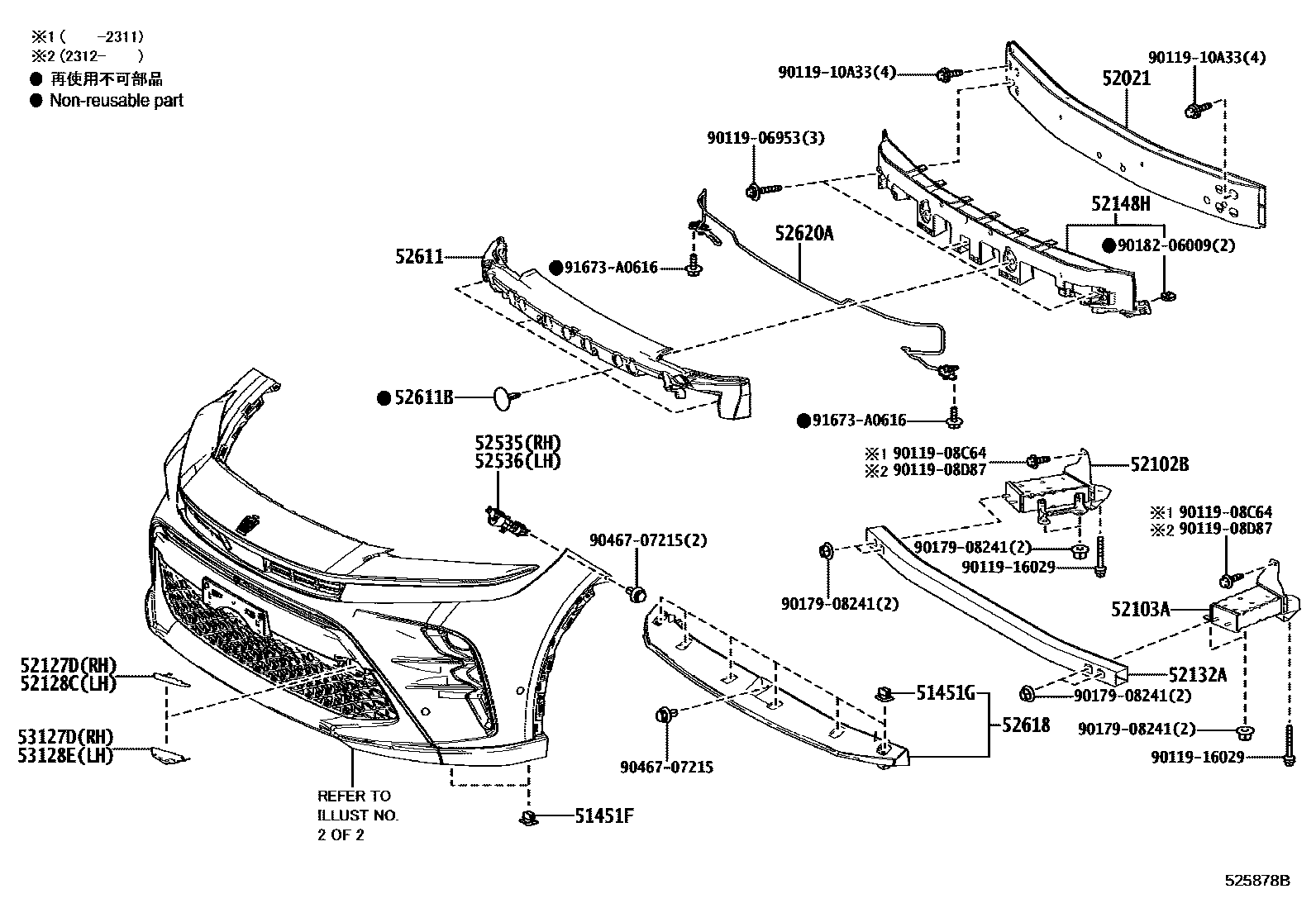

FRONT BUMPER & BUMPER STAY
51451FGROMMET, NO.1
51451GGROMMET, NO.2
52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH
52127DCOVER, FRONT BUMPER HOLE, RH
PRECIOUS WHITE PEARL,090 ,2XW ,M26
ASH,1M2 ,2ZQ ,M29
GRAY METALLIC MATT,1M1
BLACK,090 ,202 ,2XW
BLACK,202
EMOTIONAL RED 3,2ZR ,3U9 ,M24
EMOTIONAL RED 3,1M2 ,2ZQ ,2ZR ,3U9 ,M24
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
PRECIOUS BRONZE,090 ,2XW ,2XZ ,4Y6 ,M27
MUSTARD,2ZS ,5C5 ,M25
MUSTARD,1M2 ,2ZQ ,2ZS ,5C5 ,M25
MUSTARD,2ZR ,2ZS ,3U9 ,5C5 ,M25
52128CCOVER, FRONT BUMPER HOLE, LH
PRECIOUS WHITE PEARL,090 ,2XW ,M26
ASH,1M2 ,2ZQ ,M29
GRAY METALLIC MATT,1M1
BLACK,090 ,202 ,2XW
BLACK,202
EMOTIONAL RED 3,1M2 ,2ZQ ,2ZR ,3U9 ,M24
EMOTIONAL RED 3,2ZR ,3U9 ,M24
PRECIOUS BRONZE,090 ,2XW ,2XZ ,4Y6 ,M27
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MUSTARD,2ZS ,5C5 ,M25
MUSTARD,1M2 ,2ZQ ,2ZS ,5C5 ,M25
MUSTARD,2ZR ,2ZS ,3U9 ,5C5 ,M25
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52148HBRACKET, FRONT BUMPER MOUNTING, NO.2
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52611BCLIP, FRONT BUMPER ENERGY ABSORBER
52618ABSORBER, FRONT BUMPER, LOWER
52620ACHAMBER ASSY, PEDESTRIAN DETECTION
53127DGRILLE, RADIATOR, LOWER SIDE RH
53128EGRILLE, RADIATOR, LOWER SIDE LH
9011906953
main90119-06953
9011908C64
main90119-08C64
9011908D87
main90119-08D87
9011910A33
main90119-10A33
9011916029
main90119-16029
9017908241
main90179-08241
9018206009
main90182-06009
9046707215
main90467-07215
91673A0616
main91673-A0616
26 parts on this diagram · 2 diagrams in section
