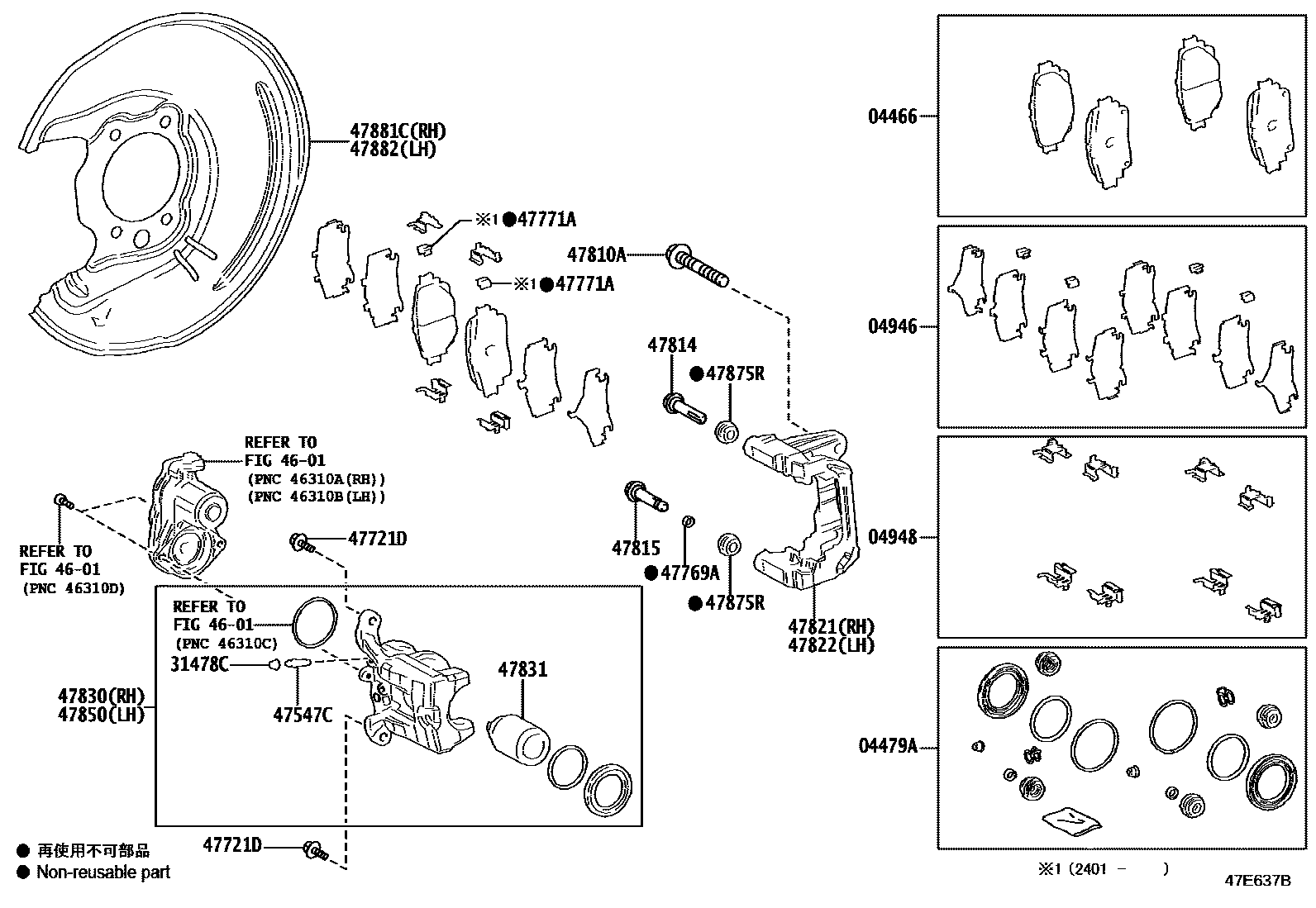

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410i¥6,600202401

main04466-48170i¥6,600202312

main04466-F4020i¥6,600202308-202312

sub04466-30410¥6,600

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110i¥2,200202308

main04479-58031i¥2,470202312

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280i¥1,780202308

main04946-48150i¥1,780202312

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071i¥1,730202308

main04948-48120i¥1,730202312

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i¥160202308

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i¥200202308

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603i¥270202308

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010i¥50202308

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-78010i¥140202401

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12426i¥240202308

main90105-14218i¥310202312

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010i¥510202308

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010i¥510202308

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30490i¥5,300202312

main47821-42100i¥4,780202308

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30490i¥5,300202312

main47822-42090i¥4,780202308

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30490i¥28,700202312

main47850-42090i¥26,100202308

47831PISTON, REAR DISC BRAKE

main47831-30460i¥920202312

main47831-58040i¥1,060202308

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-42100i¥26,100202308

main47850-30490i¥28,700202312

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270i¥70202308

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020i¥1,530202308

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020i¥1,530202308

21 parts on this diagram · 2 diagrams in section
