TRANSAXLE ASSY(HEV OR BEV OR FCEV)

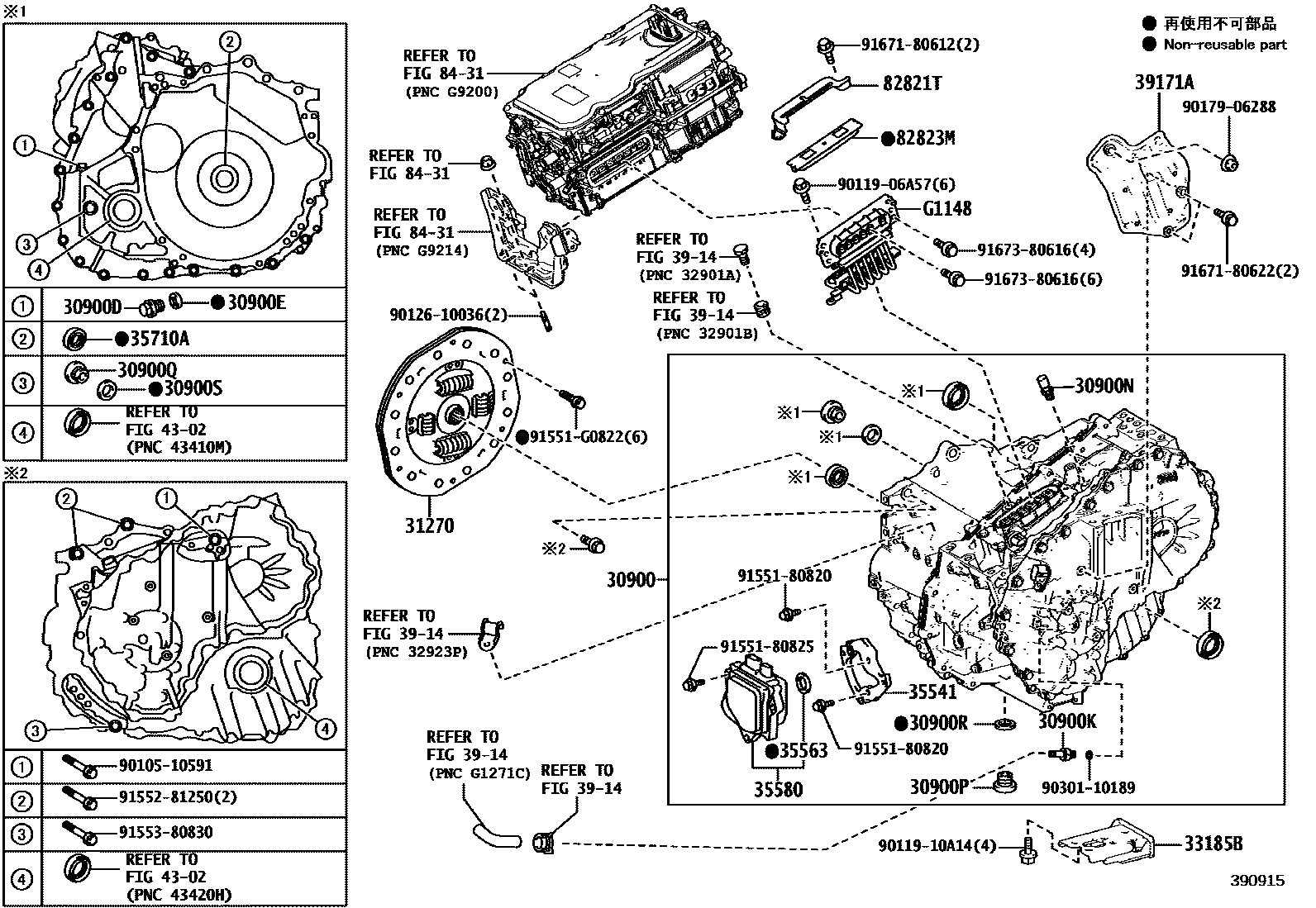

Parts diagram
30900TRANSAXLE ASSY, HYBRID VEHICLE
main30900-30010i202308-202411
sub30970-30010
main30900-30020i202312-202411
sub30970-30020
main30970-30010i202411-202508
main30970-30020i202411
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
main90341-18060i202308
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
main90430-18008i202308
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
main90404-13010i202308
30900NPLUG, BREATHER(FOR TRANSAXLE)
main90930-03201i202308
main90930-03247i202312
30900PPLUG, DRAIN(HEV)
main90341-18016i202308
30900QPLUG, FILLER(HEV)
main90341-18016i202308
30900RGASKET, DRAIN PLUG(HEV)
main90430-18008i202308
30900SGASKET, FILLER PLUG(HEV)
main90430-18008i202308
31270DAMPER ASSY, TRANSMISSION INPUT
main31270-33030i202308
main31270-48040i202312
33185BBRACKET, TRANSAXLE UNDER STOPPER
main33185-42020i202308
main33185-42030i202312
35541BRACKET, SHIFT CONTROL ACTUATOR
main35541-78010i202308
35563SEAL, SHIFT CONTROL ACTUATOR
main35563-52010i202308
35580ACTUATOR ASSY, SHIFT CONTROL
main35580-52011i202308
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
main90311-27011i202308
main90311-29003i202312
3914
39171ACOVER, TRANSAXLE
main58261-30290i202308
4302
82821TCOVER, CONNECTOR
main82821-47240i202308
82823MCAP, TERMINAL
main82823-47040i202308
8431
G1148CABLE, MOTOR
mainG114833050i202308
mainG114848110i202312
9010510591
main90105-10591
9011906A57
main90119-06A57
9011910A14
main90119-10A14
9012610036
main90126-10036
9017906288
main90179-06288
9030110189
main90301-10189
9155180820
main91551-80820
9155180825
main91551-80825
91551G0822
main91551-G0822
9155281250
main91552-81250
9155380830
main91553-80830
9167180612
main91671-80612
9167180622
main91671-80622
9167380616
main91673-80616

36 parts on this diagram · 3 diagrams in section
