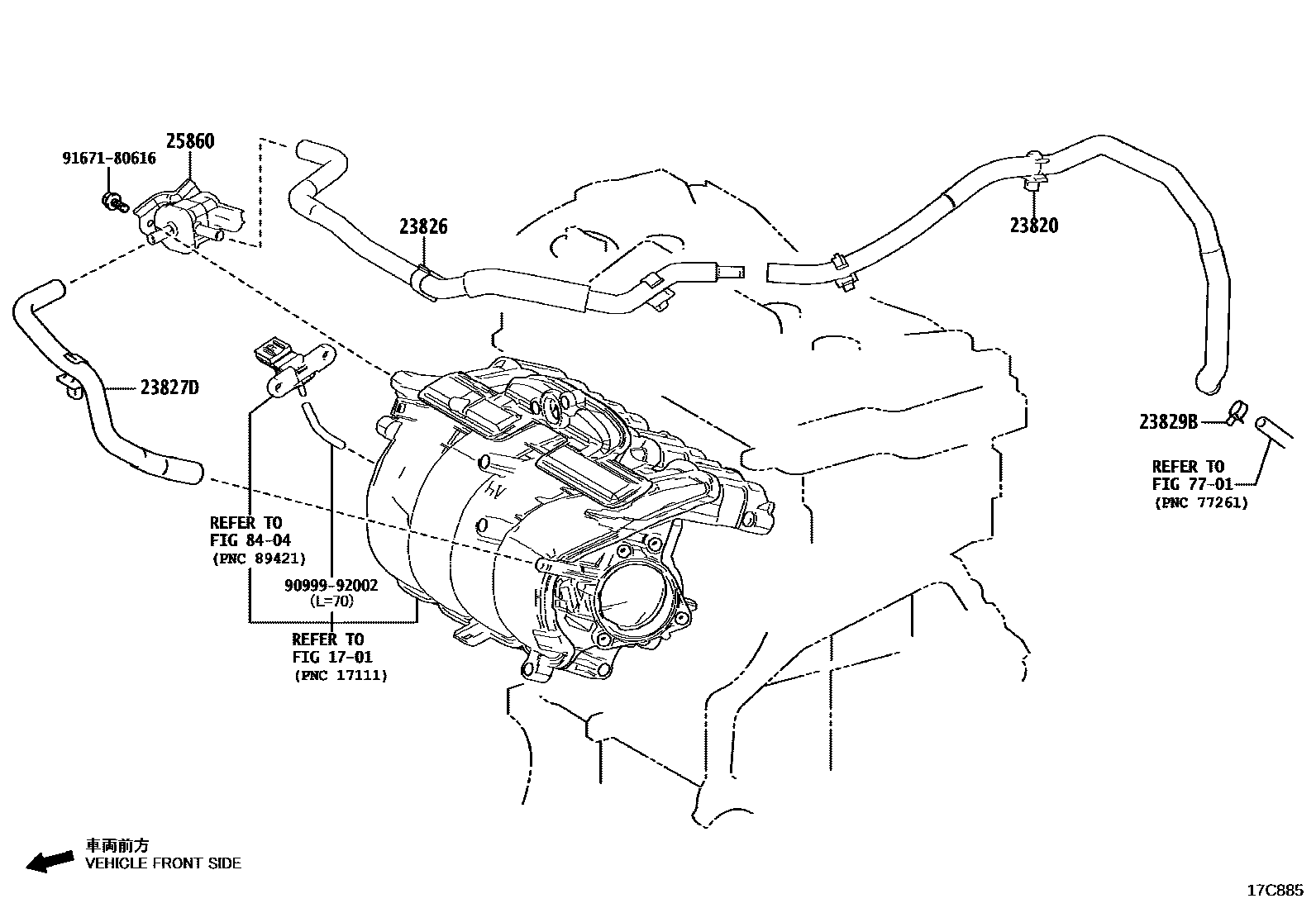

VACUUM PIPING

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25380iA25..AZSH36202308

main23820-25600iA25..AZSH37202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AZSH37202312

main23820-25150iA25..AZSH36202308

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AZSH37202312

main23820-25160iA25..AZSH36202308

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iA25..AZSH3#202308

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AZSH37202312

main25860-25070iA25..AZSH36202308

7701

8404

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 1 diagram in section
